PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.

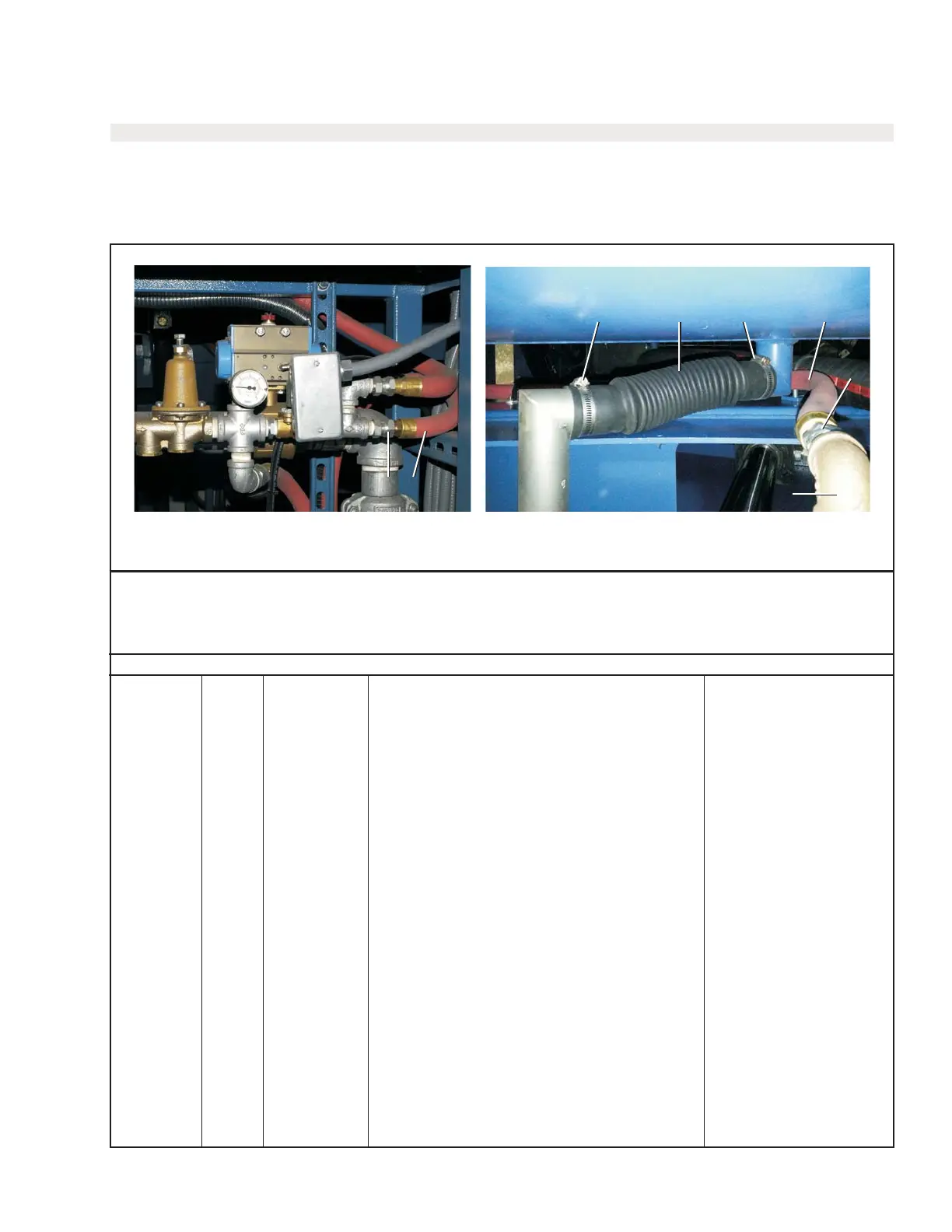

Parts List—Soap Chute
10
Hot water for flushing
9
View A-A
11
12
11
10
9
8
---------------------------------------------------------------------------------------------ASSEMBLIES-------------------------------------------------------------------------
A AWS68006 6836M5K SOAP CHUTE ASSY 68036M5K, 72046M5K
B AWS48021 4840M7K SOAP CHUTE ASSY 48040M7K
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------------
A 1 W3 65400C WLMT=6836M5K SOAP CHUTE BODY
B 1 W3 65400D WLMT=4840M7K SOAP CHUTE BODY
all 2 W3 65410A WLMT=LID SOAP CHUTE 6836M5K
all 3 03 65411 GASKT=SOAP CHUTE LID
all 4 27A009C LATCH-ADJUSTABLE 304 S/S
all 5 15P100 #8 X 3/8 PHILPANHD TYPE B SMS
all 6 27A002 NOZZLE BRASS 3/8" SPRAYSYSTEMS
all 7 02 22806 6836M5K SUPPLY NOZZLE NIPPLE
all 8 5SL0KBEA NPTELB 90DEG 1/2 BRASS 125#
all 9 51X017 UNIONSTRADT 1/2"#1404-8-8
all 10 60E086K226 3/4X226 WATER HOSE + 1/2 ENDS
all 11 27A060 HOSECLAMP1+5/16-2.25CADSC#HS28
all 12 02 03870D FLEXTUBE=2"ID X 14"LG W/CUFFS
all 13 54E016M FLGBRG 3/8X5/8X3/8BRZ#FB610-3
all 14 15K039 HXCAPSCR 1/4-20UNC2AX3/4 GR5 Z
all 15 15U185 FLATWASHER(USS STD) 1/4" ZNC P
all 16 15U180 LOCKWASHER MEDIUM 1/4 ZINCPL
all 17 15K096 HEXCAPSCR 3/8-16UNC2X1SS18-8
BMP150052/2016064A
Soap Chute
48040M7K, 68036M5K, 72046M5K
Page (2 / 2)
