Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Eight Port Peristaltic Supply Manifold
----------------------------------------------------------------------------------------------ASSEMBLIES--------------------------------------------------------------------
A GWL68001 6836M5K PERISTALTIC INSTALL 68036M5K
B GWL72001 72M5K PERISTALTIC INSTALL 72046M5K
---------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 02 22789A 8 PORT POLYPROP MANIFOLD 3/8" CHEM/1" WATER
all 2 5SP0KXFHS HEXHD PIPE PLUG 1/2"POLYPRO
all 3 02 22727 68M5K PERISTALTIC SUPPT BRKT
all 4 27A053 1-1/2" 316 SS CONDUIT HANGER
all 5 60E086K83A HOSE ASSY=3/4X83 + 1/2 ENDS
all 6 51X017 UNIONSTRADT 1/2"#1404-8-8
all 7 5SL1KNFACK NPTELB 90DEG 1X1/2 GALMAL 150#
all 8 51ET1AE01 HOSEADAPT PVC 1"MT X 1" INSERT
all 9 51E099SS DIXON 1"KINGCOMBNIP S.S.#RST10
A 10 60E010B174A HOSE ASSY: POLYWIRECLR TUBING 1"ID X 174" NO ENDS
B 10 60E010B228A HOSE ASSY: POLYWIRECLR TUBING 1"ID X 228" NO ENDS
all 11 27A090S HOSECLAMP 13/16-1.5"SS#64016B
Page (2 / 2)BMP150053/2015292A

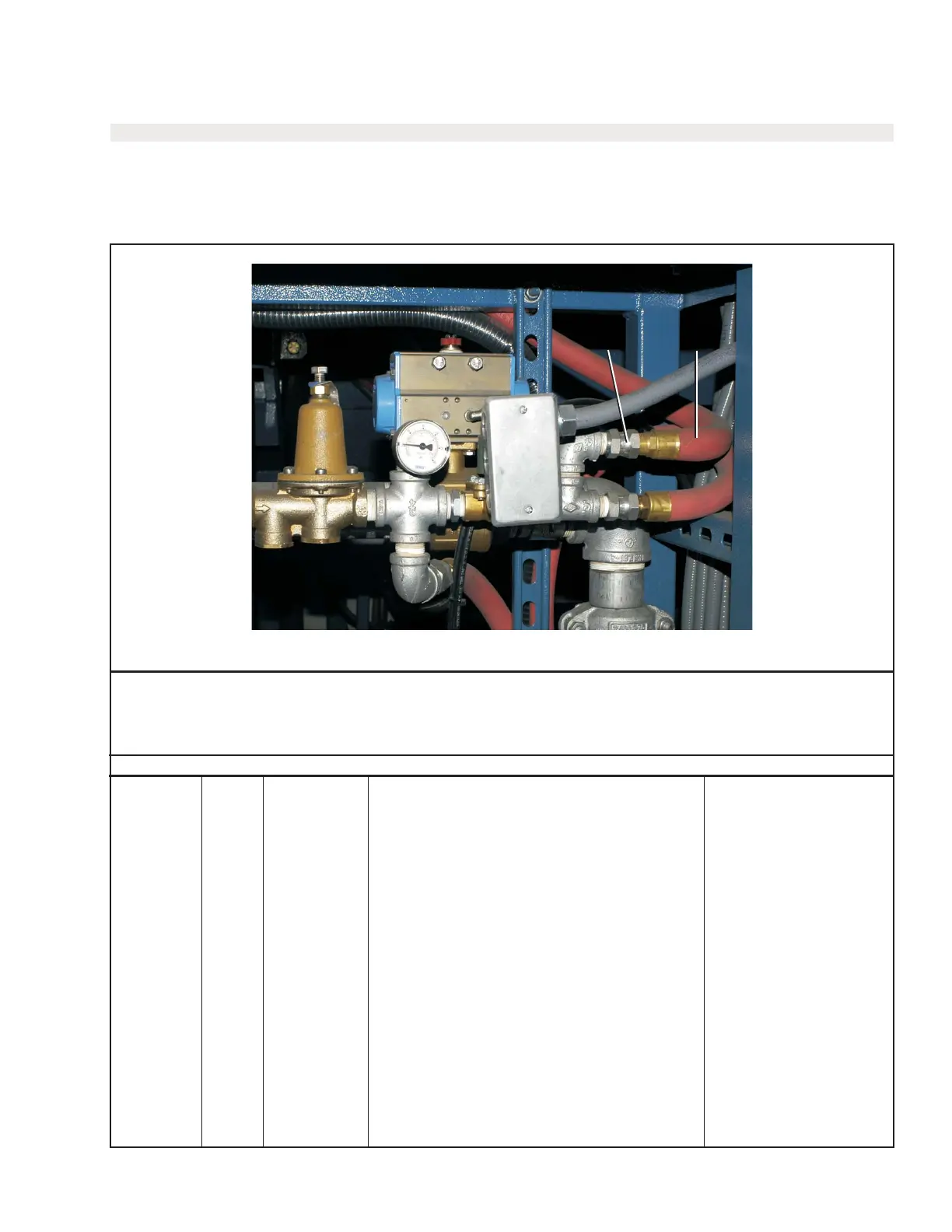

Eight Port Peristaltic Supply Manifold
48040M7K, 68036M5K, 72046M5K
Hot water for flushing
5
6
165
