Tag Guidelines for the Models Listed Below
PELLERIN MILNOR CORPORATION

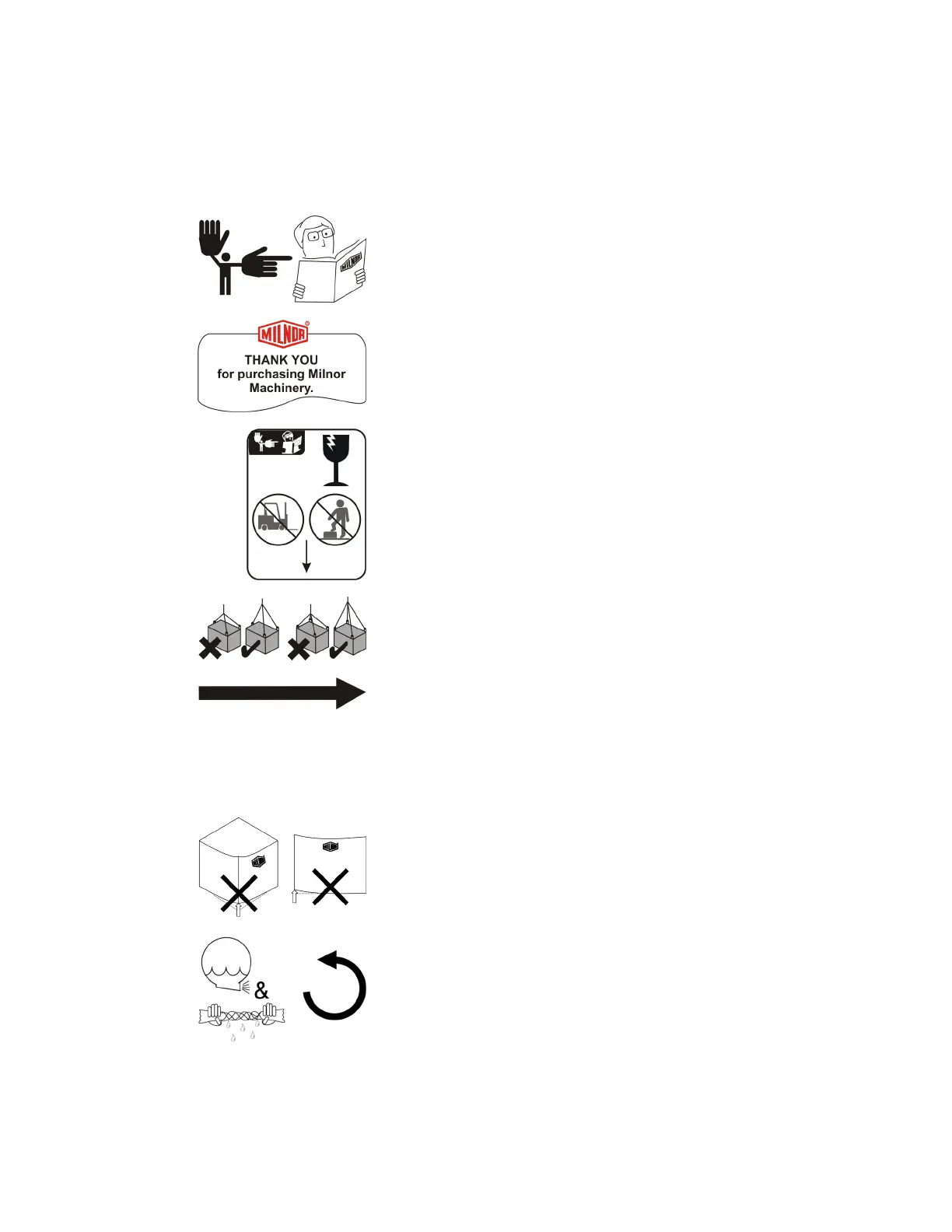

The following entries explain the installation tags. Each entry includes: 1) the tag illustration, 2)
the tag part number displayed st the bottom of the tag, and 3) the meaning of the tag.
Display or Action Explanation
Read the manuals before proceeding. This symbol appears on
most tags. The machine ships with safety, operator, and routine
maintenance guides for customer use. Milnor dealer manuals for
installing, servicing, and commissioning this machine are also
available from the Milnor Parts department.
B2TAG88005: This carefully built product was tested and
inspected to meet Milnor
®
performance and quality standards by
(identification mark of tester).
B2TAG94078: Do not forklift here; do not jack here; do not step
here—whichever applies.
B2TAG94079: Rig for crane lifting (either 3-point or 4-point,
depending on the number of lifting eyes provided) using a steep
angle on the chains (closer to vertical than horizontal).
B2TAG94081: Motor must rotate in this direction. On single
motor washer-extractors and centrifugal extractors, the drive
motor must turn in this direction during draining and extraction.
This tag is usually wrapped around a motor housing. If the motor
turns in the opposite direction when the machine is first tested,
the electrical hookup is incorrect and must be reversed as
explained in the schematic manual.
B2TAG94084: Do not lift from one corner of the machine, as
this can cause the frame to rack, damaging it.
B2TAG94097: The cylinder must rotate counterclockwise
during draining and extraction (spin) when viewed from here
(rear of machine). Otherwise, reverse the electric power
connections, as explained in the schematic manual.
