PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.

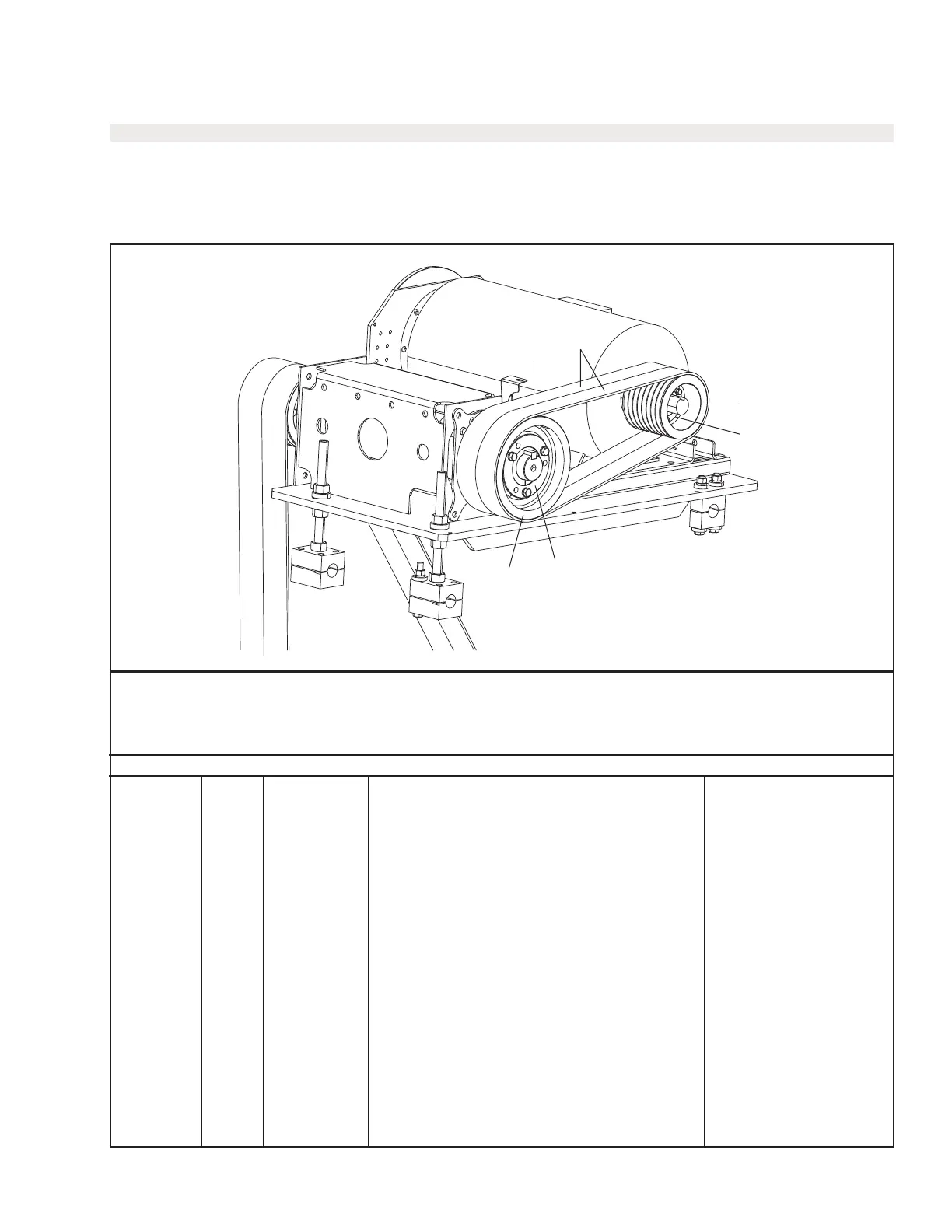

Parts List—Drive Chart
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 X2 25071 7246M5K PULLEY, FAB, 10 GROOVE
all 2 X2 21923 PLATE=PULLEY PULL UP, 4840F
all 3 15K232A HEXCAPSCR 3/4-10X2 GR8 ZINC
all 4 15U321H FLTWASH 3/4 HARD ASTM F436
all 5 56VB1800XB5 VBAND 5RBX1800
all 6 56Q2RE 2+7/8" BUSH VPUL QD TYPE E
all 7 560840S10E VPUL 10G5V8.4PD/8.50D E QD
all 8 15E239 3/4" X 3/4" X 5.00" KEY
all 9 561130S8F VPUL 8G5V11.30 QD TYPE F
all 10 56Q2RF 2+7/8" BUSH VPUL QD TYPE F
all 11 56VB750XB4 VBAND 4RBX750
all 12 560710S8SF VPUL 8G5V7.10 QD TYPE SF
all 13 56Q1RSF 1+7/8" BUSH VPUL QD TYPE SF
BMP150035/2015155A
Drive Chart
7246M5K
8
9
10
11
12
13
