Milnor MWF63C7 - Guards and Covers

Pellerin Milnor Corporation
BPWCDM01.R01 0000183826 A.2 A.4 5/2/18 1:15 PM Released

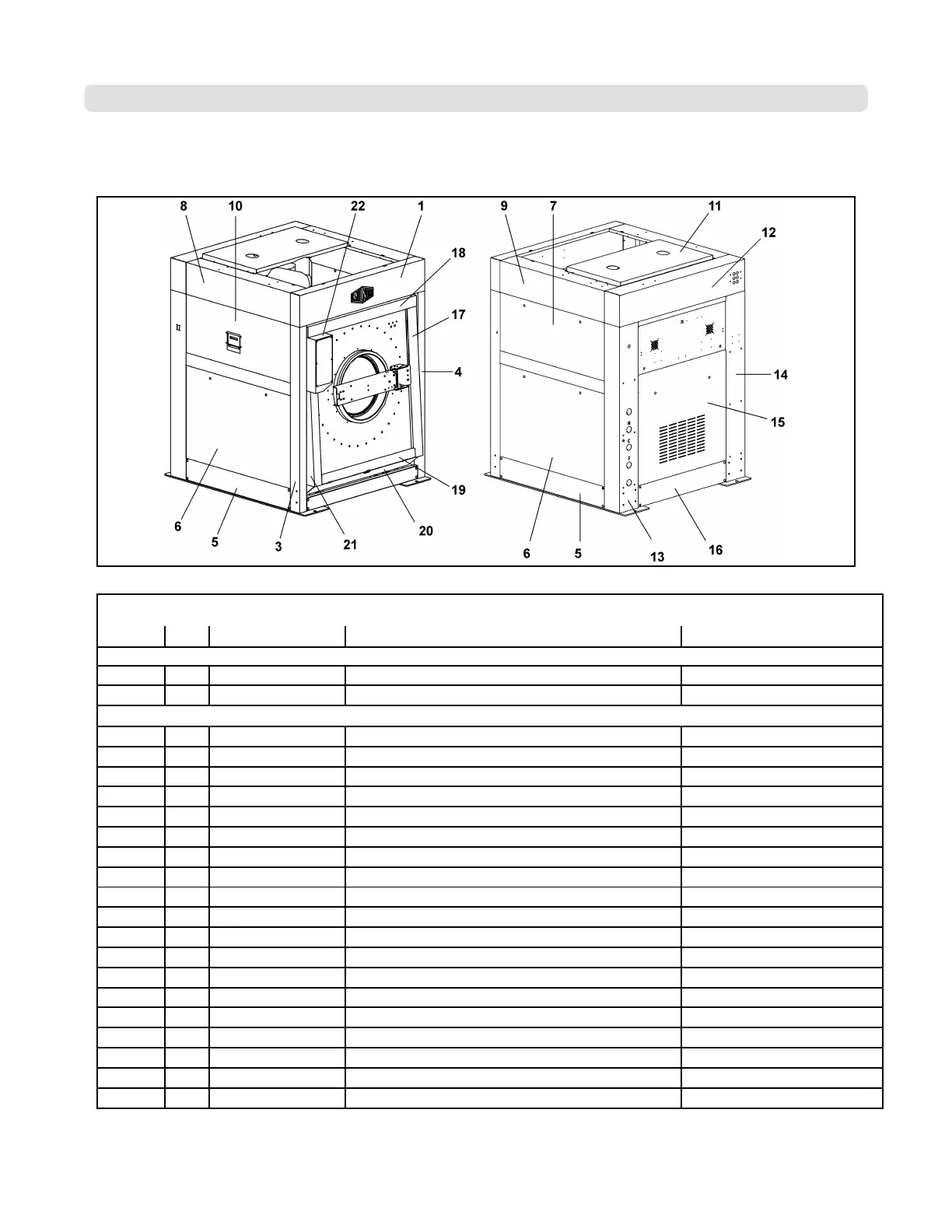

Table 1 Parts List—
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this let-
ter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Assemblies
A REFERENCE MWF77C7, MWF77Y7
B REFERENCE MWF63C7, MWF63Y7
Components
all 1 98MW23648 UPPER FRONT PANEL, MWF63 TILT
all 2 98MW23652 LOWER FRONT PANLE, MWF63 TILT
all 3 98MW23649A FRONT LEFT POST, MWF63 TILT
all 4 98MW23649B FRONT RIGHT POST, MWF63 TILT
A 5 98MW21689 LOWER SIDE SUPPORT, MWF77 TILT
B 5 98MW23689 LOWER SIDE SUPPORT, MWF63 TILT
A 6 98MW21688 LOWER SIDE PANEL, MWF77 TILT
B 6 98MW23688 LOWER SIDE PANEL, MWF63 TILT
A 7 98MW21686 UPPER RIGHT SIDE PANEL, MWF77 TILT
B 7 98MW23686 UPPER RIGHT SIDE PANEL, MWF63 TILT
A 8 98MW21685A UPPER LEFT SUPPORT, MWF77 TILT
B 8 98MW23685A UPPER LEFT SUPPORT, MWF63 TILT
A 9 98MW21685B UPPER RIGHT SUPPORT, MWF77 TILT
B 9 98MW23685B UPPER RIGHT SUPPORT, MWF63 TILT
A 10 98MW21686B UPPER LEFT PANEL=SOAP CHUTE, MWF77 TILT
B 10 98MW23686B UPPER LEFT PANEL=SOAP CHUTE, MWF63 TILT
all 11 98MW23684 TOP PANEL, MWF63 TILT
all 12 98MW23654 UPPER REAR SUPPORT, MWF63 TILT
all 13 98MW23643 REAR RIGHT POST,MWF63 TILT
Guards and Covers
1 of 2
MWF63C7, MWF63Y7, MWF77C7, MWF77Y7
BPWCDM01 / 2018195A
