Milnor MWF63C7 - Door Open Lock

Pellerin Milnor Corporation
BPWCDD01.R01 0000184147 A.3 A.4 5/8/18 7:32 AM Released

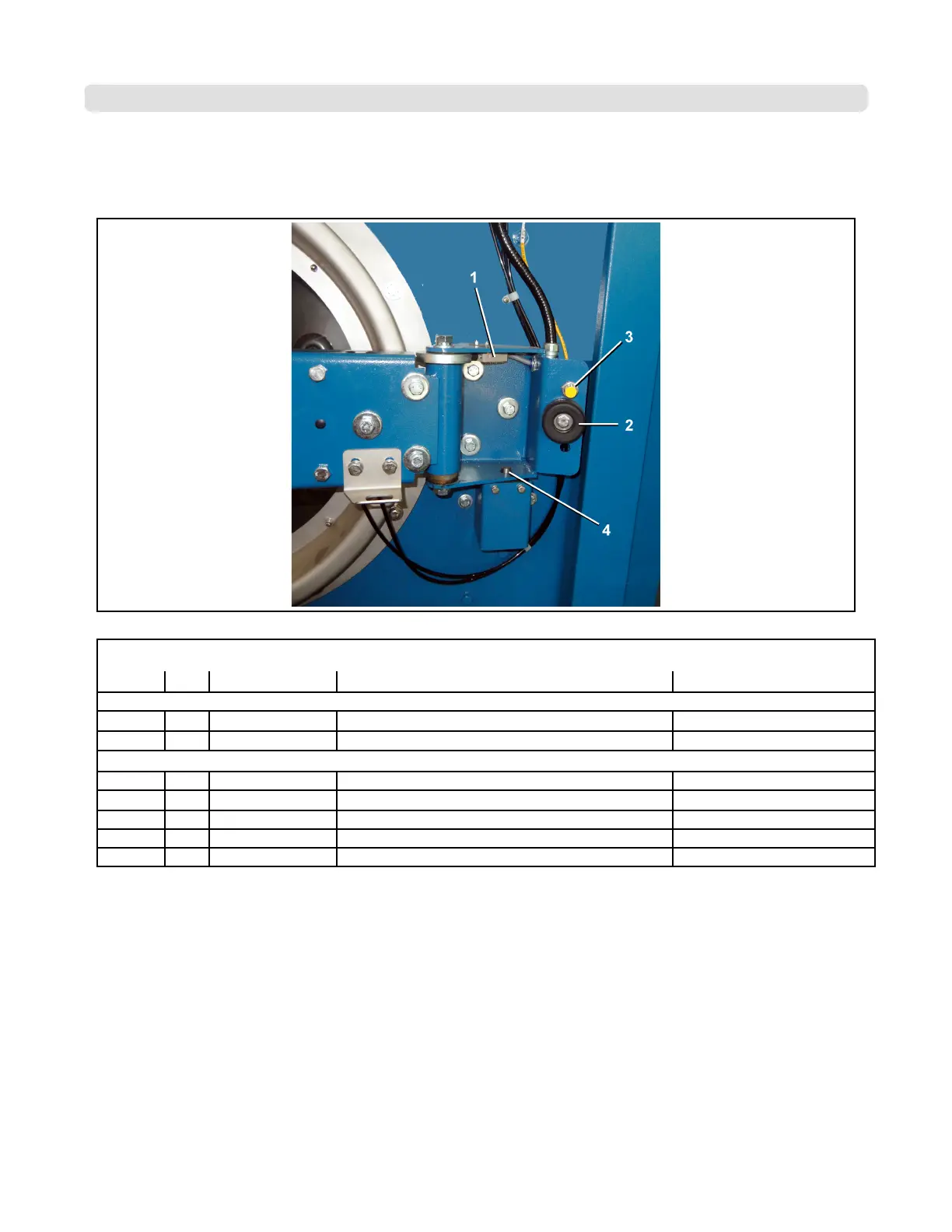

Figure 1. Door Open Lock and Secondary Door Switch (Tilt Models)
Table 1 Parts List—
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this let-
ter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Assemblies
A REFERENCE MWF63C7, MWF63Y7
B REFERENCE MWF77C7, MWF77Y7
Components
all 1 09RM01212S CAPSW 12' 180DEG ROLLER SILVER
all 2 98CX773680 BUMPER 2+1/2OD, CSM
all 3 09RPS18CAS PRXSW QKCO 18M NO-AC SHLD
all 4 SA 10 020 * DOORLATCH ASSY-SMALL
all 5
09RPTAC005 CONN.ST.FEM 3-PIN AC 3A 5M KB3T-5 ?MICROFAST
Door Open Lock
1 of 1
MWF63C7, MWF63Y7, MWF77C7, MWF77Y7
BPWCDD01 / 2018195A
