PELLERIN MILNOR CORPORATION
Legend
N1.
N2.
N3.
N4.
P.
Q.
R.
S.
T.
Add shims to make the latch looser. Remove shims to make the latch tighter. To add shims, add a notch to the
shims as shown. Then you will not have to remove the handle assembly. When you remove or add shims,
always start with the thinnest shim.
Make a notch as shown.
Put in the machine screw. Put the eye of the torsion spring on the screw then put the flat washer, lock washer,
and nut on the screw to hold
the eye. Tighten the nut.
Put the free end of the spring into this hole.
The shim with the added notch
Rear view
Inside view
Detailed view
Torsion spring
U. The shims are (.230 inches) and (.015 inches) thick.

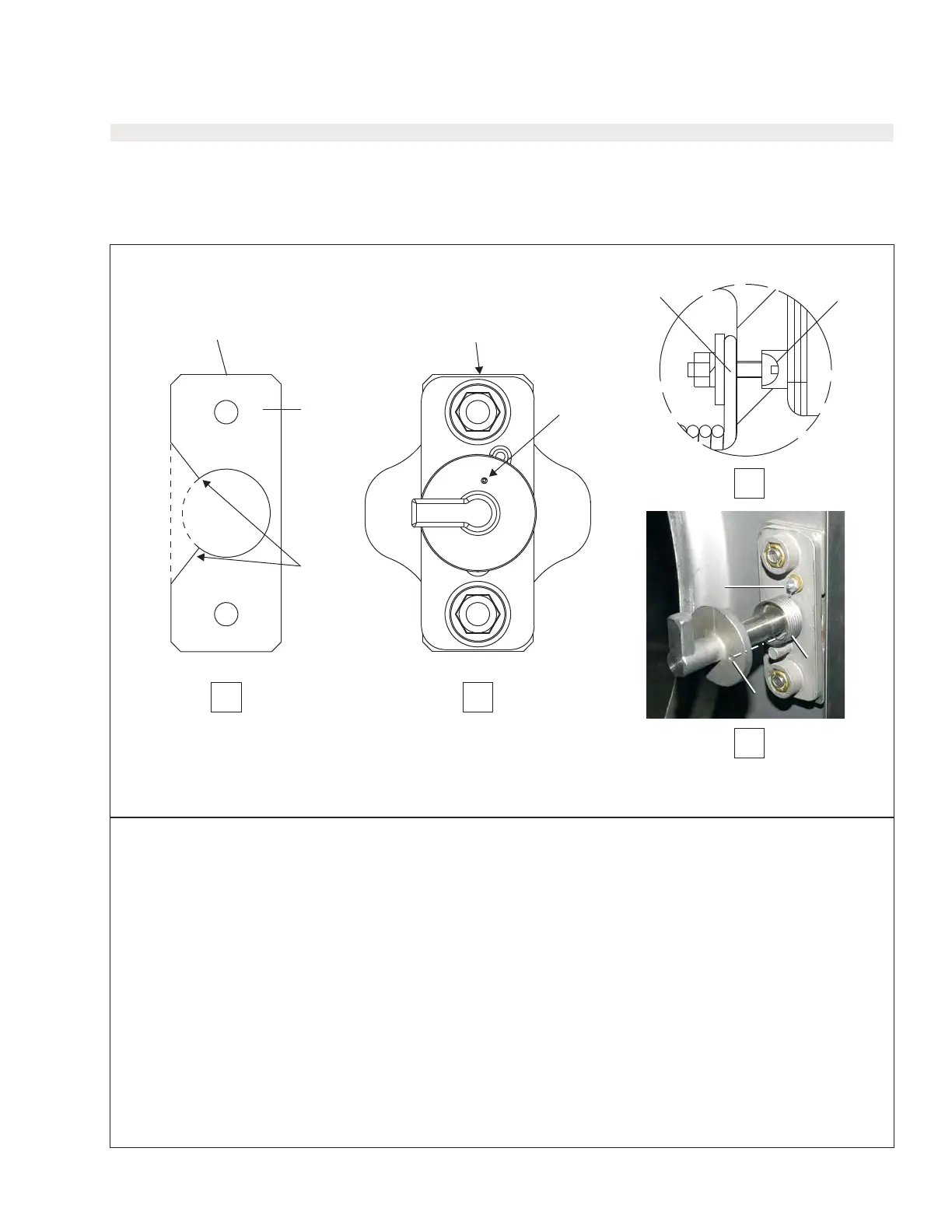

Figure 2: Add or remove shims until the door locks correctly and seals.
R
S
N3
F
F
N4
N3
N2
Shims,U
Shims,N1,U
PQ
N1
N4
Door Handle and Lock Actuator
MWF27J8, MWF27Z8
Page (2 / 3)BMP130065/2013484A
83
