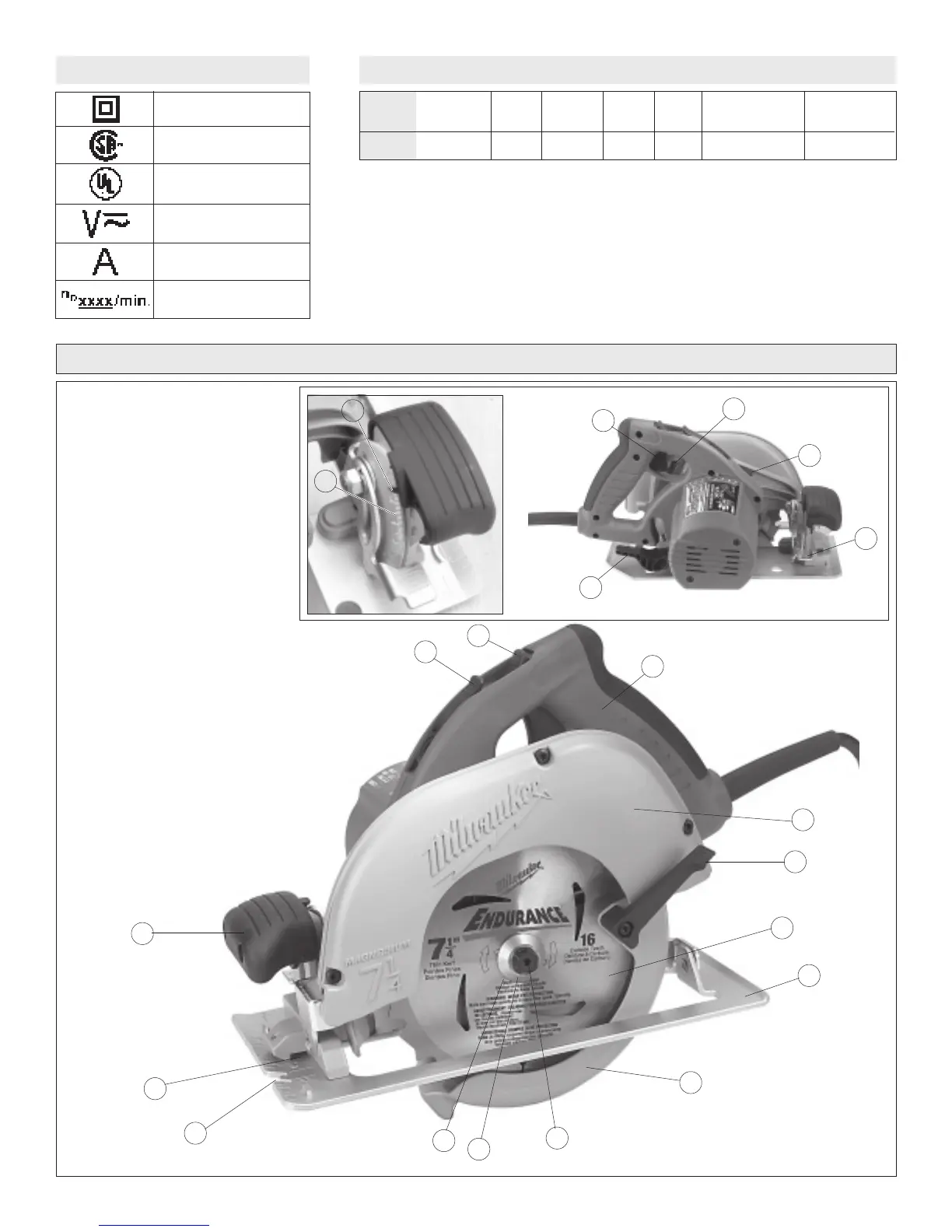

FUNCTIONAL DESCRIPTION
1. Handle release lever
2. Handle lever release button
3. Bevel scale
4. Bevel pointer
5. Depth adjusting lever
6. Trigger
7. Depth setting gauge (not shown)
8. Spindle lock button
9. Bevel adjusting lever
10. Tilt-Lok

handle
11. Upper guard
12. Lower guard lever
13. Blade
14. Shoe
15. Lower guard
16. Blade bolt
17. Outer blade flange
18. Inner flange (not shown)
19. Sight line
20. Rip fence slot
21. Front handle
Specifications
3
4
Depth of Cut
at 45°
0 to 1-13/16"
Blade
Size
7-1/4"
Catalog
No.
6391
Depth of Cut
at 90°
0 to 2-15/32"
Arbor
5/8"
No Load
RPM
5800
Volts
AC/DC
120
Amps
15
Double Insulated
Symbology
Canadian Standards
Association
Underwriters
Laboratories, Inc.
No Load Revolutions
per Minute (RPM)
Amps
Volts Alternating Current/
Direct Current
