Milwaukee MX FUEL ROCKET User Manual

4

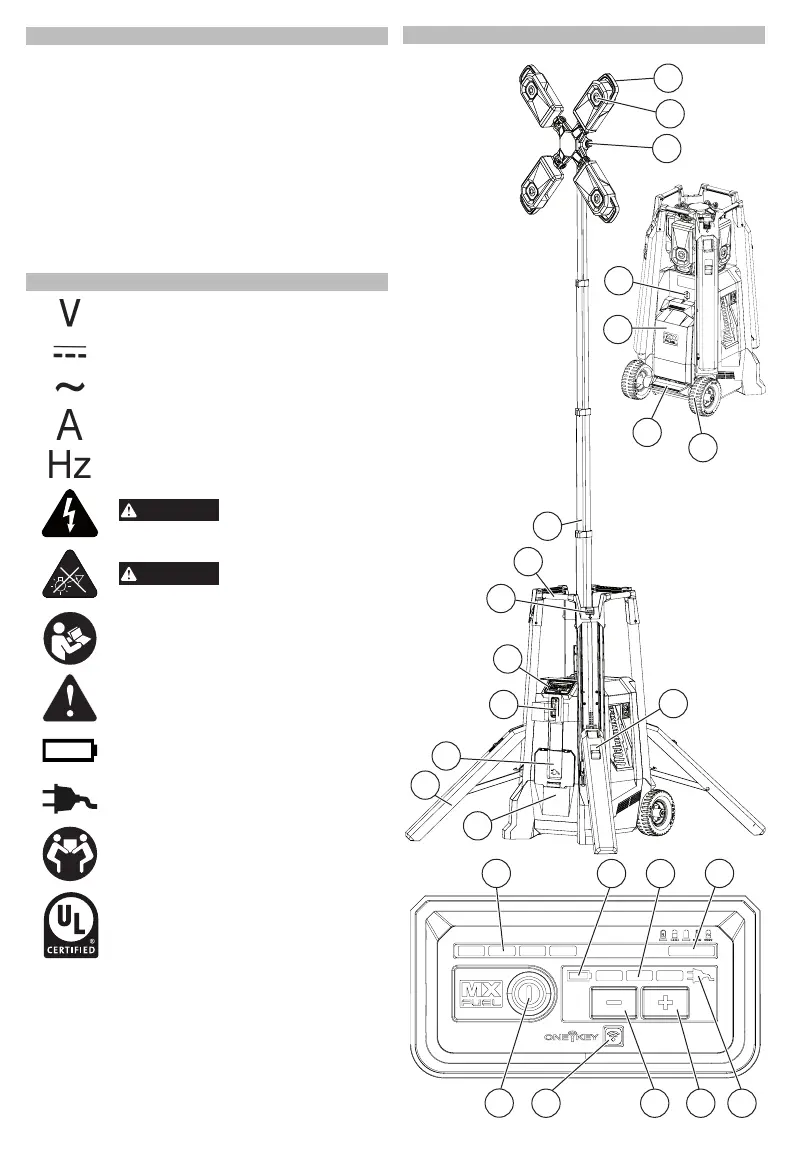

FUNCTIONAL DESCRIPTION
21. ONE-KEY™
indicator
22. Decrease
brightness
23. Increase
brightness
24. AC mode
indicator
25. Motor mast
disengage
lever
1
5
4
6
7
8
9
10
11
2
3
12
13
14
15
16
17 18
20
21 22 23
19
24
25
1. Positioning
handle
2. LED
3. Positioning
knob
4. Mast
5. Transport
handles
6. Leg deploy latch
7. Leg retract latch
8. Leg
9. AC Inlet Door
10. Mast raise/lower
buttons
11. Control panel
12. Wheel
13. Tilt bar
14. Battery door
15. Battery door
lock ring
16. Fuel gauge
17. DC mode indicator
18. Brightness gauge
19. Battery status
20. Arm button
SPECIFICATIONS
Cat. No. ..................................................... MXF041
Ingress Protection............................................ IP56
Battery Type ........................................ MX FUEL™
Charger Type....................................... MX FUEL™
Module/FCC ID .....................BLE113/QOQBLE113
AC Input Volts ....................................................120
AC Input Amps.......................................................6
DC Output Volts (Charging) .................................72
DC Output Amps (Charging)...............................4.5
Recommended Ambient
Charging Temperature ....................
40°F to 105°F
(5°C to 40°C)
Weight ..........................................................105 lbs.
MX FUEL
TM
Li-Ion Battery Packs ............ 72 V DC
SYMBOLOGY
Volts
Direct Current
Alternating Current
Amps
Hertz
WARNING
Risk of Electric Shock
WARNING
Do not stare at the
operating light
source
Read operator’s manual
Safety Alert Symbol
DC Power
AC Power
Two-person lift
UL Listing for Canada and U.S.
