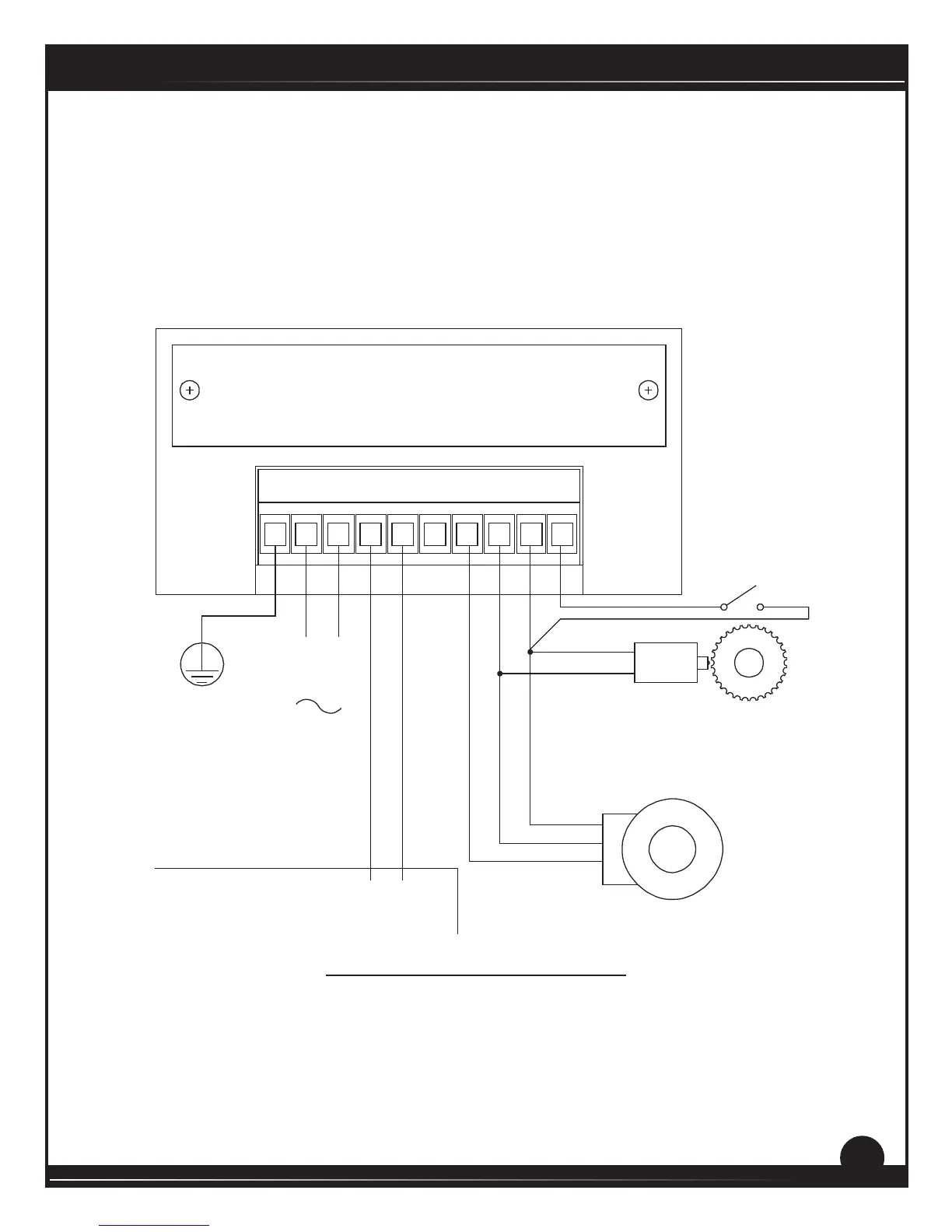

Minarik DLC600 - Figure 6 DLC600 Connections

11
DLC Series

OPTICAL ENCODER
115 VAC
or
230 VAC
MODEL DLC600
INPUT 115/230V AC, 50/60 Hz, 50 mA
MINARIK DRIVES, SOUTH BELOIT, IL 61080
www.minarikdrives.com
G L1 L2 S1 S2 Fin + IN C INH
AC VOLTAGE
NON-REGENERATIVE DRIVE
REGENERATIVE DRIVE
XP-AC DRIVE
EARTH GND
COMMON
SIGNAL
+5 VDC or +12 VDC
FROM WIPER TERMINAL
FROM CCW TERMINAL
S1
S0
S2
S2
S2
S1
MAGNETIC PICKUP
(NON-POLARIZED)
INHIBIT SWITCH
OPEN TO RUN
CLOSE TO INHIBIT
