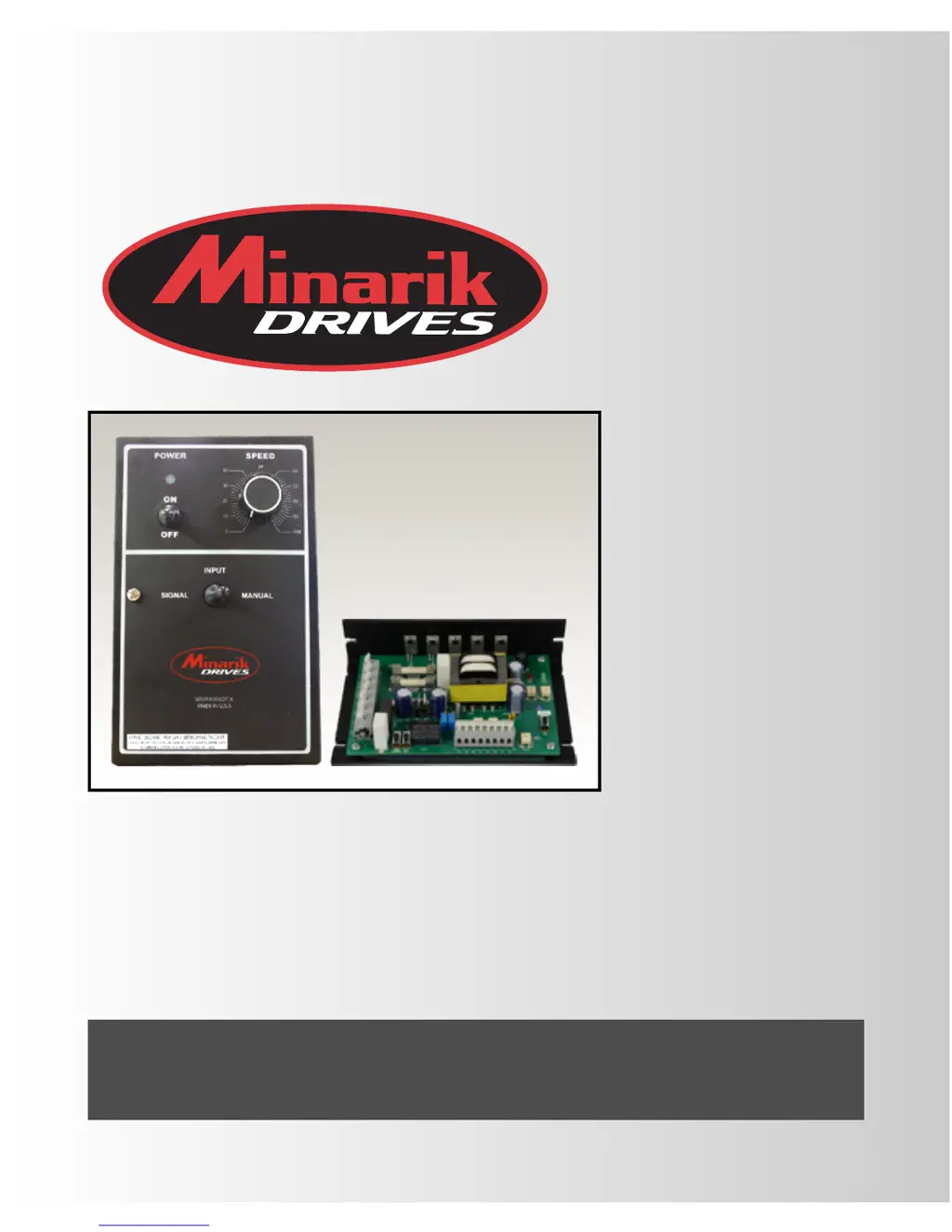

Minarik MM311U - User Manual

Questions and Answers

S
Stephen MaxwellAug 7, 2025
Why does the line fuse blow in my Minarik DC Drives?
- M
  Michael BrownAug 7, 2025
  The line fuse might be blowing due to several reasons. It could be the wrong size for the motor, so check that it's correct. There might be a short in the motor cable or armature to ground; inspect them for shorts. Alternatively, nuisance tripping might occur due to ambient conditions combined with high-current spikes. In this case, try adding a blower to cool the drive components, decrease the CURRENT LIMIT settings, resize the motor and drive, or check for misaligned mechanical components or jams.
H
hchavezAug 12, 2025
What to do if the line fuse doesn't blow, but the motor won't run on my Minarik DC Drives?
- P
  paulamcdanielAug 12, 2025
  If the line fuse is intact but the motor isn't running, several factors could be at play. First, check if the speed adjust potentiometer or input voltage/current signal is set to zero speed and increase it. Ensure the start switch is closed, or jumper terminals B1 and B3. Verify that S2 is not shorted to S1 and remove any short if present. Also, confirm the drive isn't in current limit by checking for motor jams and increasing the CURRENT LIMIT setting if it's too low. Ensure the drive is receiving AC line voltage and that the motor is correctly connected to A1 and A2 after removing power.
V
Veronica Evans DDSAug 16, 2025
How to troubleshoot a Minarik DC Drives motor that won't reach desired speed?
- G
  Gary PattersonAug 16, 2025
  If your motor isn't reaching the desired speed, there are a few potential causes. The MAX SPD setting might be too low; try increasing it. Similarly, the IR COMP or CURRENT LIMIT settings could be limiting the speed, so increase those as well. Finally, the motor might be overloaded, so check the motor load and resize the motor and drive if necessary.
S
Sean GonzalezAug 20, 2025
Why is my Minarik DC Drives motor running too fast?
- J
  Jeffery MartinAug 20, 2025
  If your motor is running too fast, it could be due to a high MAX SPD setting. Consider calibrating or decreasing the MAX SPD setting. Another possible cause could be loose motor field connections, if you are using shunt wound motors. Check these connections to ensure that they are properly connected.
K
Kathy RobinsonAug 25, 2025
What to do if my Minarik DC Drives motor pulsates or surges under load?
- J
  Jon RomeroAug 25, 2025
  If your motor pulsates or surges under load, the IR COMP might be set too high. Adjust the IR COMP setting slightly counter-clockwise until the motor speed stabilizes. Another cause could be the motor bouncing in and out of current limit. Ensure the motor isn't undersized for the load and adjust the CURRENT LIMIT trim pot clockwise.
R
robert04Aug 28, 2025
How to fix a Minarik DC Drives motor running in the opposite direction?
- J
  Jamie HowardAug 28, 2025
  If the motor is running in the opposite direction, the motor connections to A1 and A2 are likely reversed. To correct this, remove power, reverse the connections to A1 and A2, and then reapply power.
A
Andrew McbrideSep 2, 2025
What to do if Minarik DC Drives motor does not stop when the speed adjust potentiometer is full CCW?
- M
  Matthew WelchSep 2, 2025
  If the motor doesn't stop when the speed adjust potentiometer is fully counter-clockwise (CCW), the MIN SPD might be set too high.
