Part II General Information

Structure and Assembly/Disassembly 184

5. S-Video board

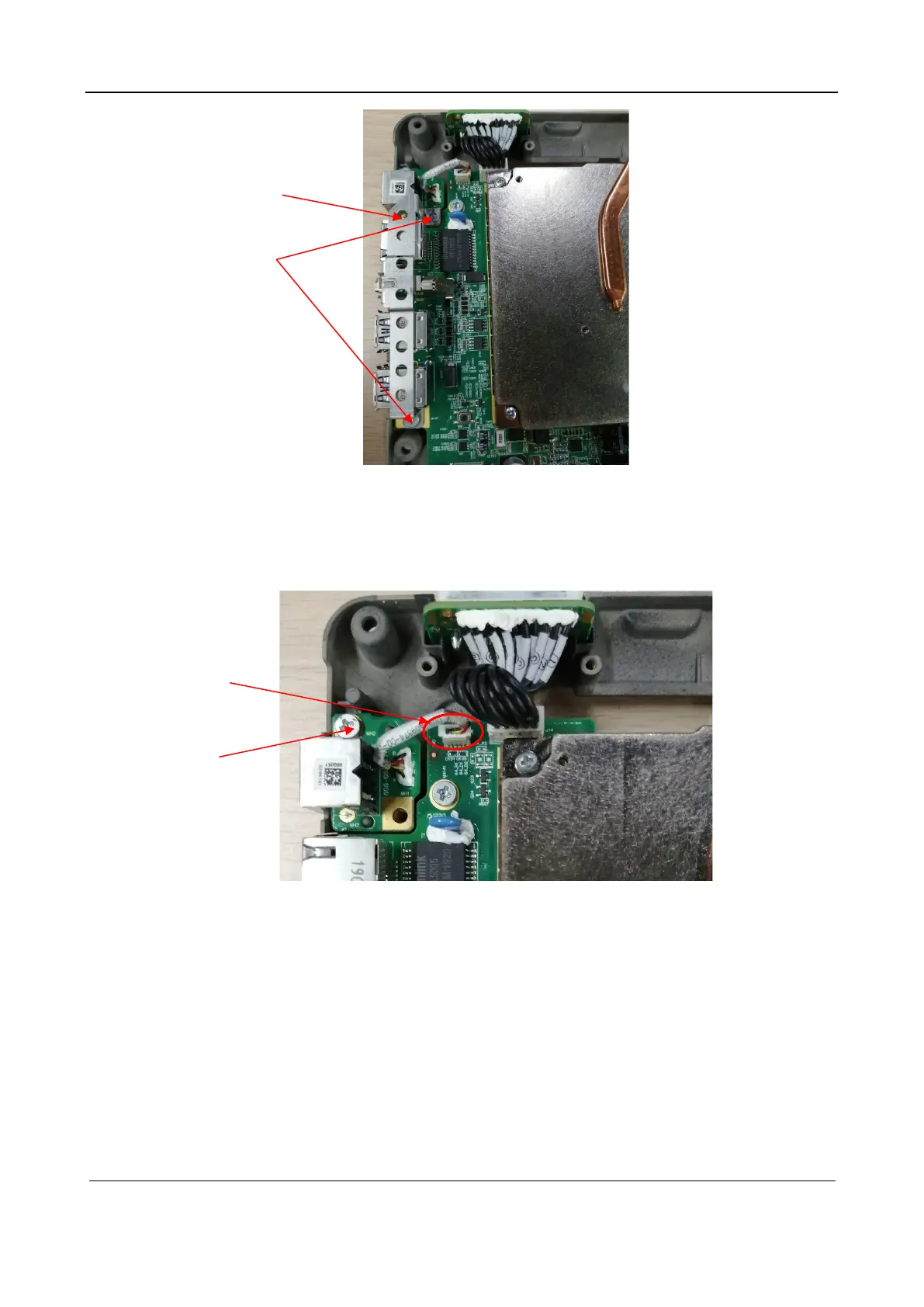

Use a screwdriver to remove the M3X5 cross recessed flathead screw and remove the S-Video

board cable.

6. Magnetic socket

Remove the magnetic socket cable to take off this component.

M3X5 cross recessed

flathead screw

IO shield cover

M3X5 cross recessed

flathead screw

S-Video board
