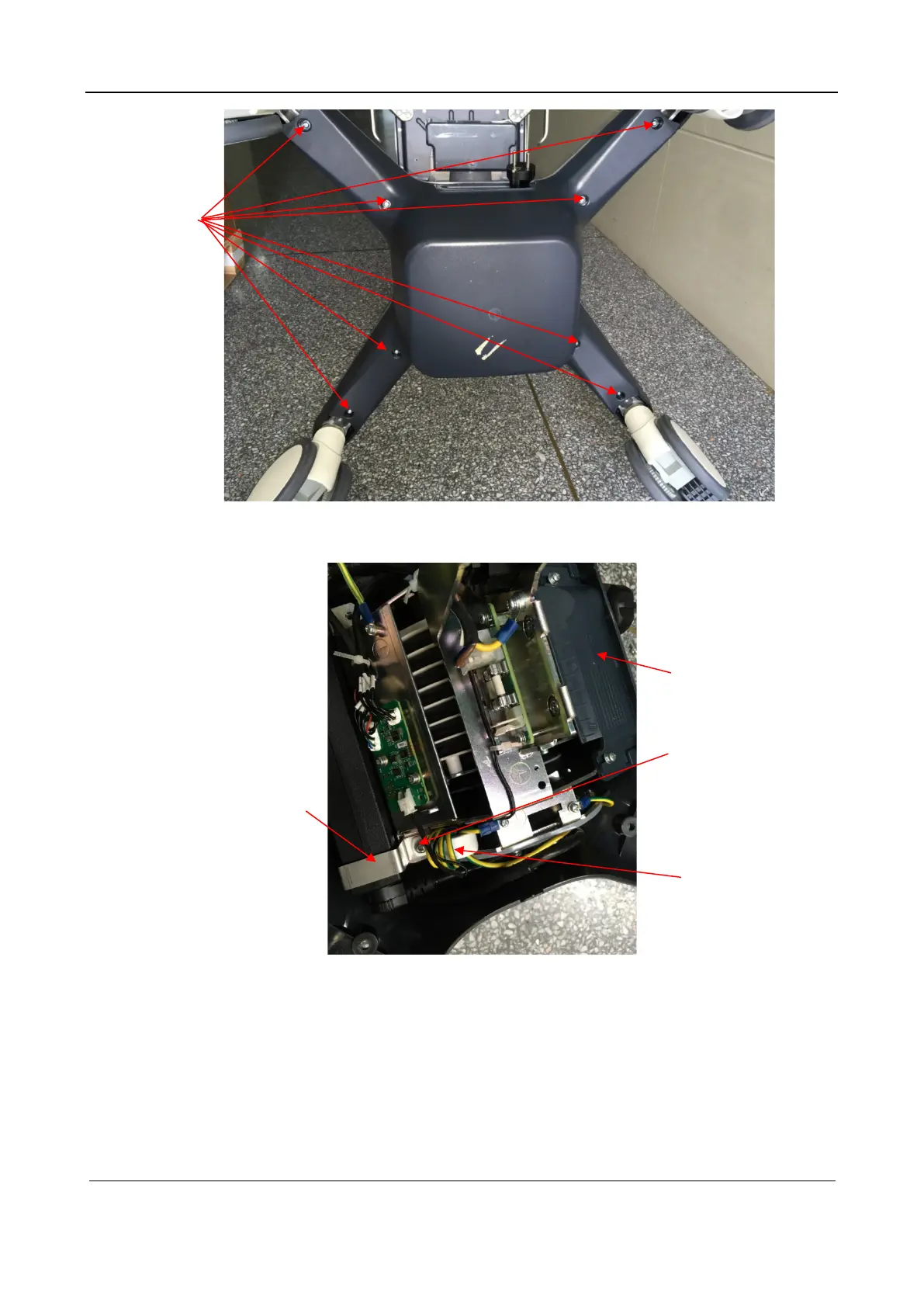

3. Take off the base from the trolley and remove the M4X12 cross recessed screws for fixing the
adapter bracket and magnetic ring.
4. Remove the winder.
Remove the four M4X12 cross recessed panhead screw for fastening the winder and take off the
winder.
M4X12 cross
recessed panhead
screw (8 pcs)
Adapter
bracket
Magnetic ring
M4X12 cross
recessed panhead
screw
Base
