Part II General Information
Structure
and Assembly
/Disassembly
216

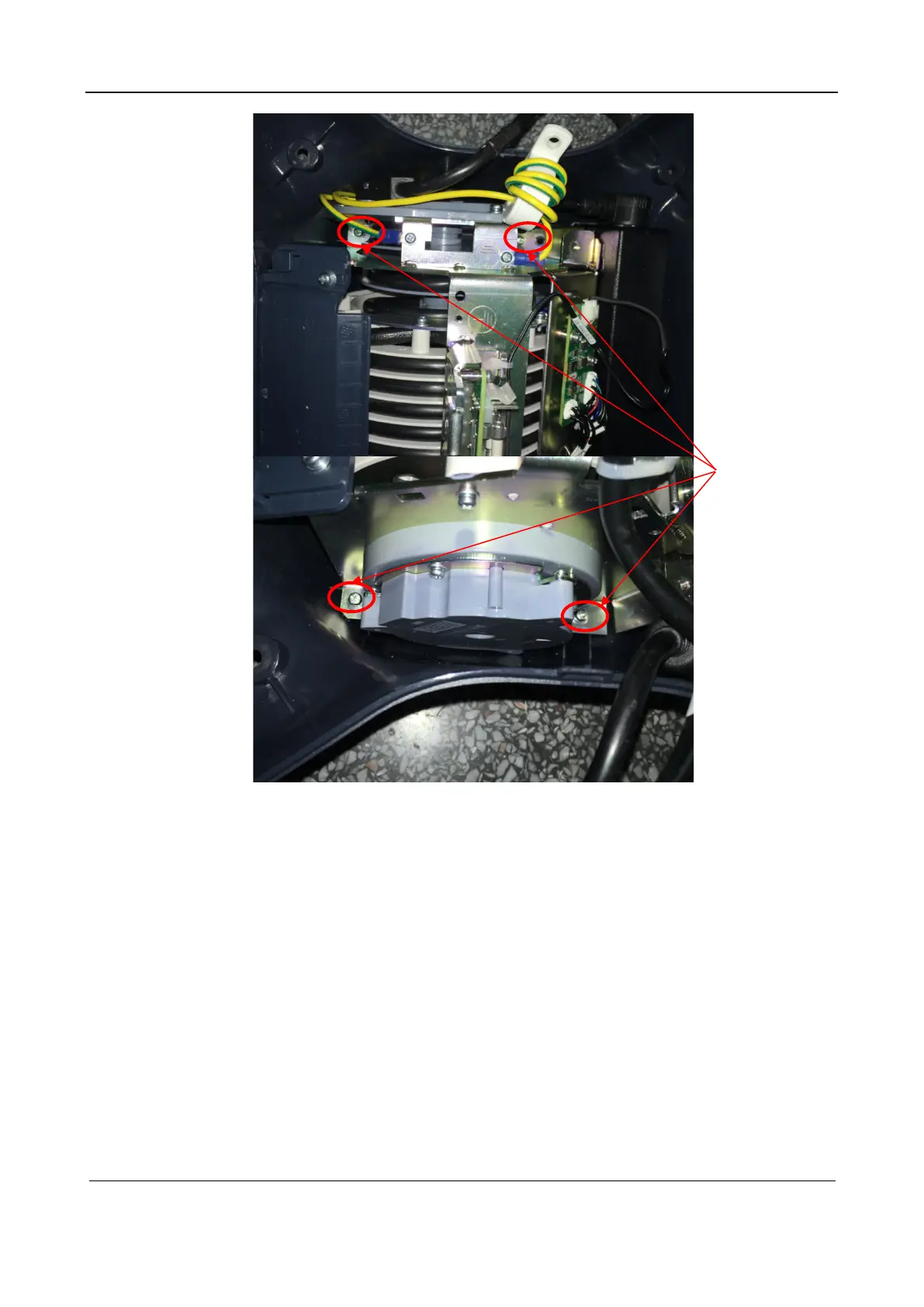

5.3.11
Pr
otection a
nd Indicator Board and Output Control Board
1.
Re
move t
he protec
tion and indicator
board.
W
ear a pai
r of ESD
gloves, remove t
he two plu
gs from
t
he board sh
own in the figure
, remove the
two M3X8 cross
recessed panh
ead screws for fastening
the board, and
take off the pr
otection and
indicator board.
M4X12 cross
recessed panhead
screw (4 pcs)
232
