3.3 Greasing flex part
The rubber part that sits behind the camera head
ensures, through its sophisticated shape, that the
camera head can be pushed well through all kinds of
bends. To make the bends, it is necessary to grease
this part before use. Use acid-free petroleum jelly for
this purpose.

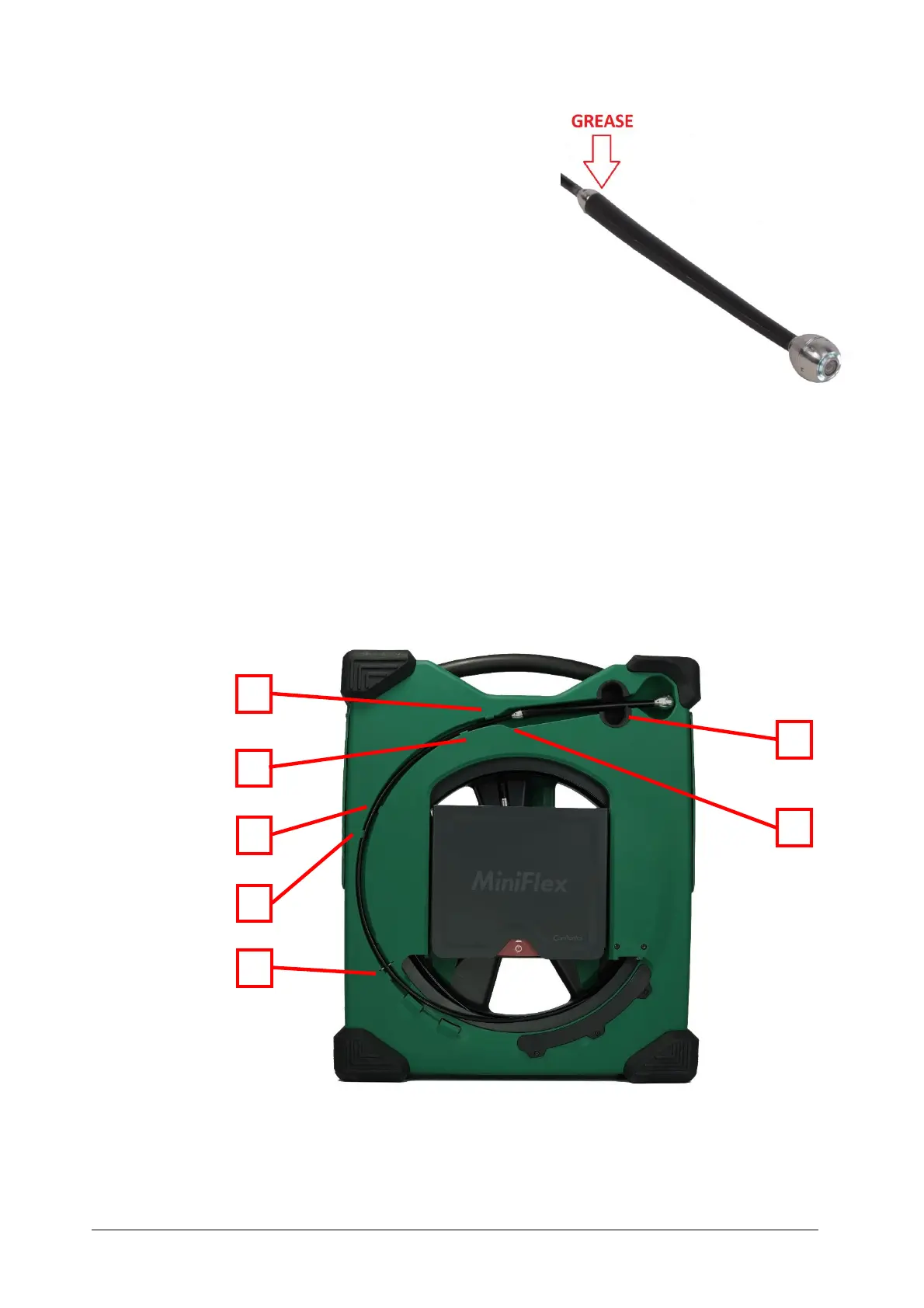

3.4 storing camera head
When the camera head is not in use, it is best to store it in the storage compartment
provided for that purpose. This ensures that the flexible rubber part remains straight.
Proceed as follows
Make sure the push cable is stowed in the drum
Snap the push cable into the auxiliary spring (1)
Guide the push cable there so that it is behind point (2),(3),(4) and (5).
Now push back the redundant push cable until rear side is flexible at point (6)
Push the flexible rubber part into point (7)
