Operating instructiOns
Operating instructiOns
OVERVIEW
This is a high performance battery charger that has the ability to properly and safely work with LEAD-ACID: FLOODED/WET
CELL, MAINTENANCE FREE, and AGM/STARVED ELECTROLYTE batteries only. It is important to read and understand how
to properly use the battery charger before charging batteries.
Each output bank is independent and isolated from one another and the AC input. The Minn Kota charger can charge
independent batteries or combinations of batteries hooked in series or parallel without disconnecting the batteries from any
switches or wires / straps joining the batteries.
12v Battery 12v Battery
12v Battery
12v Battery 12v Battery
12v Battery
12v Battery 12v Battery
12v Battery
12v Battery

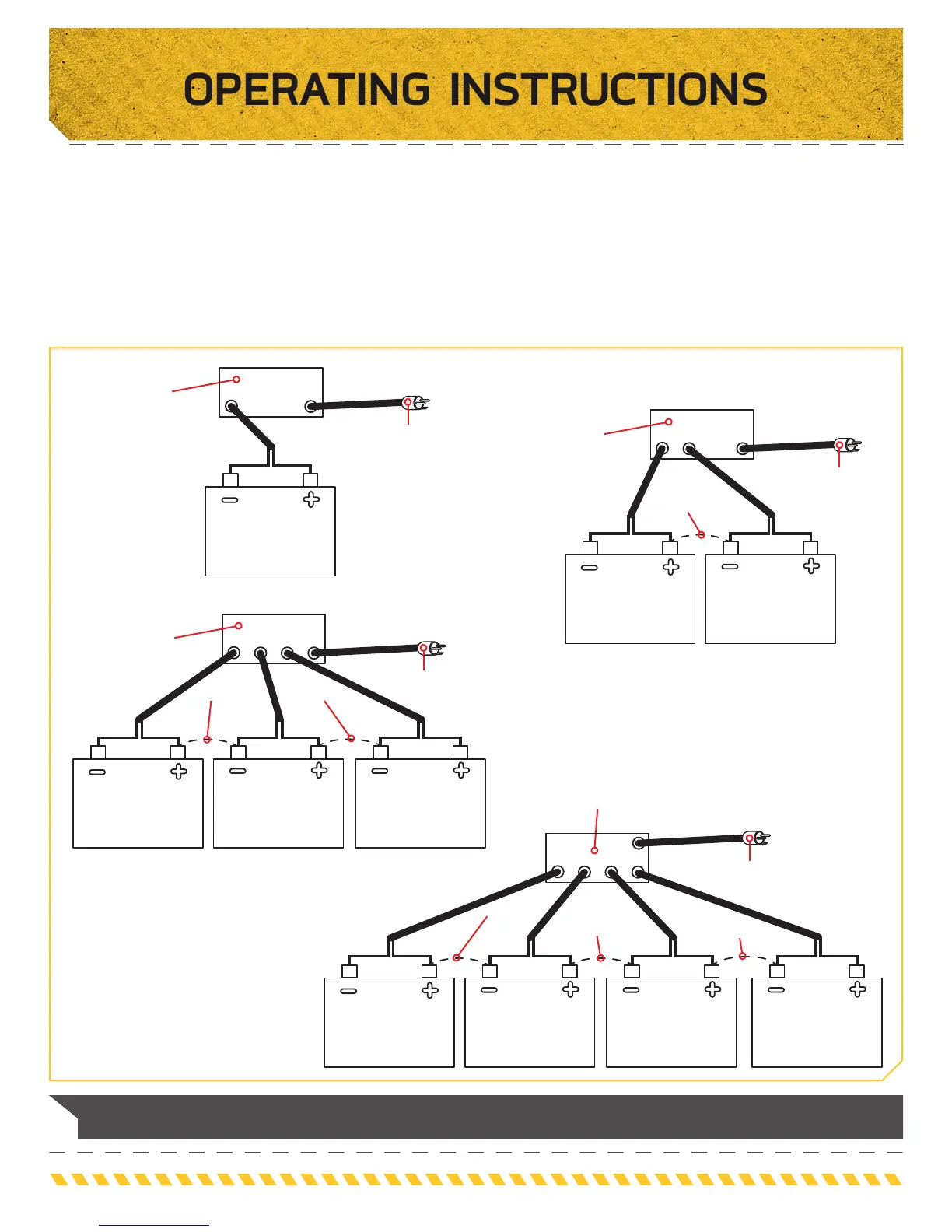

Single Bank
Battery Charger
Two Bank
Battery Charger
Four Bank
Battery Charger
Optional
Jumper
Wires
NOTE: If batteries are connected in a series with jumper wires, those wires can be left in place during charging.
Black-
Black- Black- Black-
Red+
Red+ Red+ Red+
Black- Black-Red+ Red+
Black- Black- Black- Black-Red+ Red+ Red+ Red+
120V AC Input
120V AC Input
120V AC Input
120V AC Input
Optional
Jumper
Wires
Optional
Jumper
Wires
Optional
Jumper
Wires
Optional
Jumper
Wires
Optional
Jumper Wires
Three Bank
Battery Charger
