OPERATING INSTRUCTIONS
GENERAL OPERATION
After the AC cord on the charger is plugged in and a battery is connected to the output cable correctly, the Yellow LED will turn
on. After 4 seconds the charger will begin charging the battery. The 4 second delay is added to allow the user to establish a
good connection before the charger output is turned on. This will help prevent unwanted sparks during battery connections.
NOTE: If a RED LED is on, reference the Troubleshooting Section of this manual to determine the reason and take the
necessary corrective action to remedy the situation. If you are unable to remedy the situation and need help, call the
Minn Kota Service Department at 1.800.227.6433 and a technical support representative will be happy to assist you.

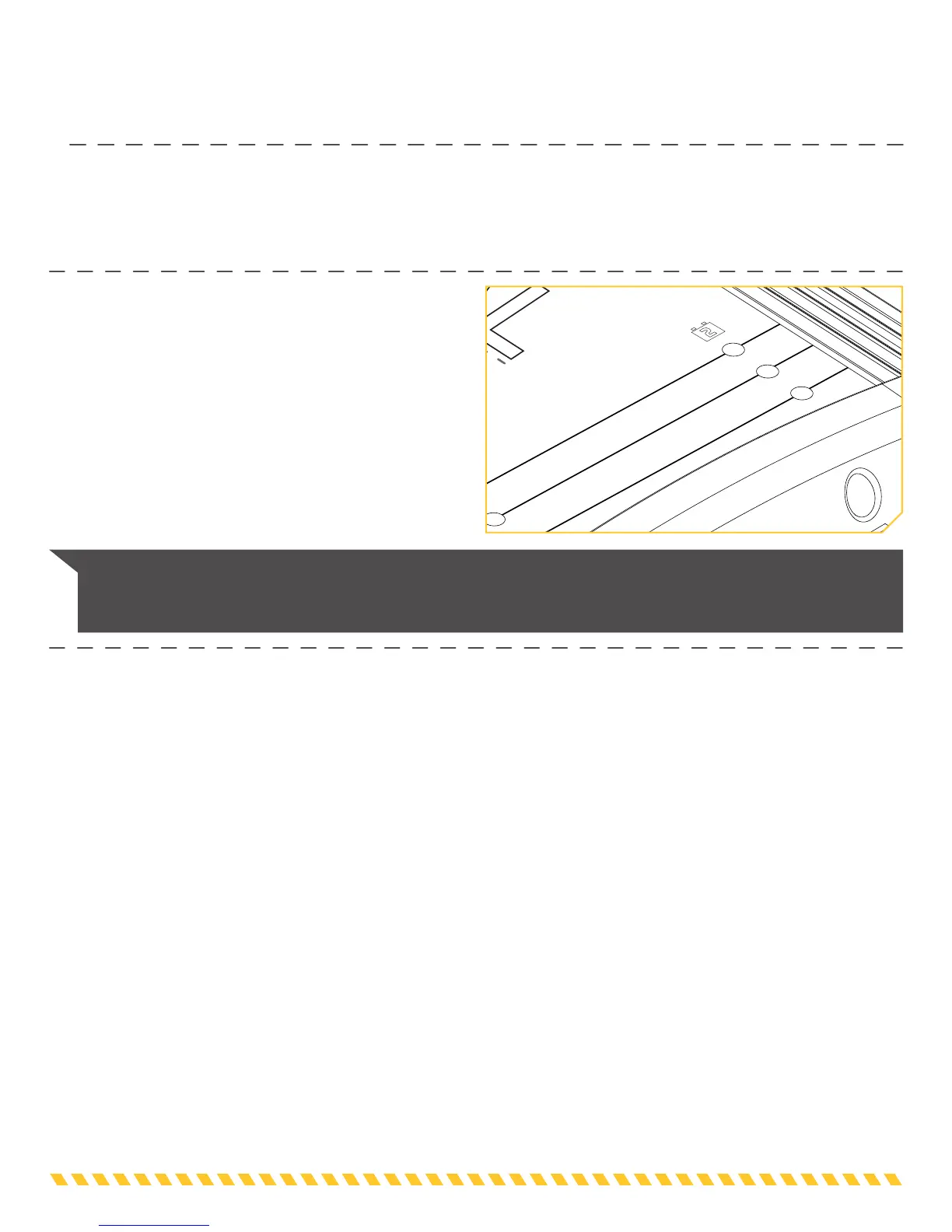

INDICATOR LEDS
Each bank has the following LEDs:
• A solid RED LED indicates there is an issue with the
battery connection.
• A flashing RED LED indicates an error. See the
Troubleshooting section of this manual.
• A YELLOW LED indicates the progress of charging.
• A flashing GREEN LED indicates battery is fully charged, in
Maintenance Mode and ready to use.
• A solid GREEN LED indicates battery is fully charged, in
long term Maintenance Mode and ready to use.
CHARGING (1-10A)
FULL CHARGE (0-1A)
CHECK CONNECTION
2 Bank • 10 Amps per Bank • 20 Amps Total
Ignition Protected • Waterproof Construction*
For Use with 12 Volt/6 Cell Batteries
that are Flooded/Wet Cell, Maintenance Free
or Starved Electrolyte (AGM) Only
*MANUFACTURER’S ENCLOSURE RATING
ON-BOARD BATTERY CHARGER
MK 220D
