MINN KOTA RIPTIDE INSTINCT QUEST Installation Instructions

minnkota.johnsonoutdoors.com | 19 ©2023 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
3
2
Advanced Advanced
GPS GPS
Ethernet Ethernet
ConnectorConnector
ReceptacleReceptacle
(Braided Sleeve)(Braided Sleeve)
To MotorTo Motor
To Fish FinderTo Fish Finder
MountMount
Ethernet Ethernet
CableCable
2e
2d
Coil CordCoil Cord

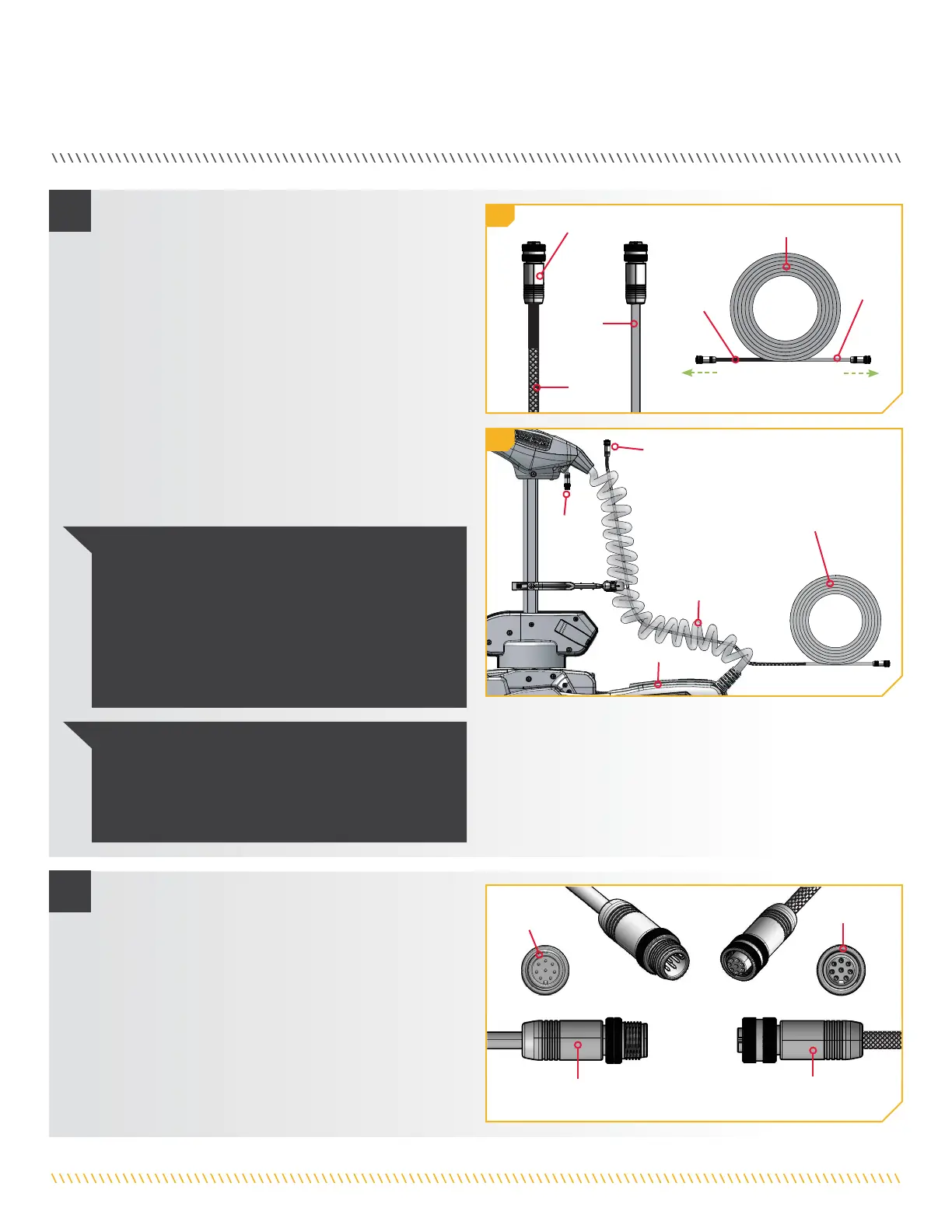

d. Take the Receptacle on the end of the Ethernet
Cable covered in a braided sleeve. The Receptacle
with the braided sleeve will be inserted into the Coil
Cord and connected to the Advanced GPS Ethernet
Connector, while the Receptacle on the bare end
of the Ethernet Cable will exit the Coil Cord and be
connected to the Fish Finder.
e. Run the Receptacle on the Ethernet Cable up
through the bottom of the Coil Cord. The Ethernet
Cable should float freely inside the Coil Cord. The
Receptacle should exit from the top of the Coil Cord,
with the other end exiting from the bottom of the
Coil Cord near the Mount. Allow enough slack in the
cable to attach the Receptacle to the Advanced GPS
Ethernet Connector.
f. To install the Ethernet Cable, align the pins on
the Advanced GPS Ethernet Connector with the
Receptacle on the Ethernet Cable. Notice the keyed
connectors. Tighten the Collar from the Ethernet
Cable to secure the connection.
g. The Ethernet Cable will plug directly into a
Solix or Helix Fish Finder or directly into a Helix
Adapter Cable.
Ethernet Ethernet
CableCable
Advanced GPS Ethernet Advanced GPS Ethernet
Connector from Trolling MotorConnector from Trolling Motor
Eight-Pin Eight-Pin
ConnectorConnector
ReceptacleReceptacle
NOTICE: Once all accessory cables are connected,
the final installation will require the Ethernet Cable
to be secured. See the “Securing the Ethernet
Cable” section of this document for details once all
connections are complete.
NOTICE: Ensure that the correct Receptacle on the
Ethernet Cable is routed through the Coil Cord and
connected to the Advanced GPS Ethernet Connector.
The section of the Ethernet Cable covered in a braided
sleeve must be routed through the Coil Cord and
connected. Do not connect the Receptacle on the
bare end to the motor. Failure to connect the correct
Recpetacle may result in damage to cables.
ReceptacleReceptacle
Ethernet CableEthernet Cable
Bare Bare
EndEnd
Braided Braided
SleeveSleeve
Braided Braided
SleeveSleeve
Bare Bare
EndEnd
