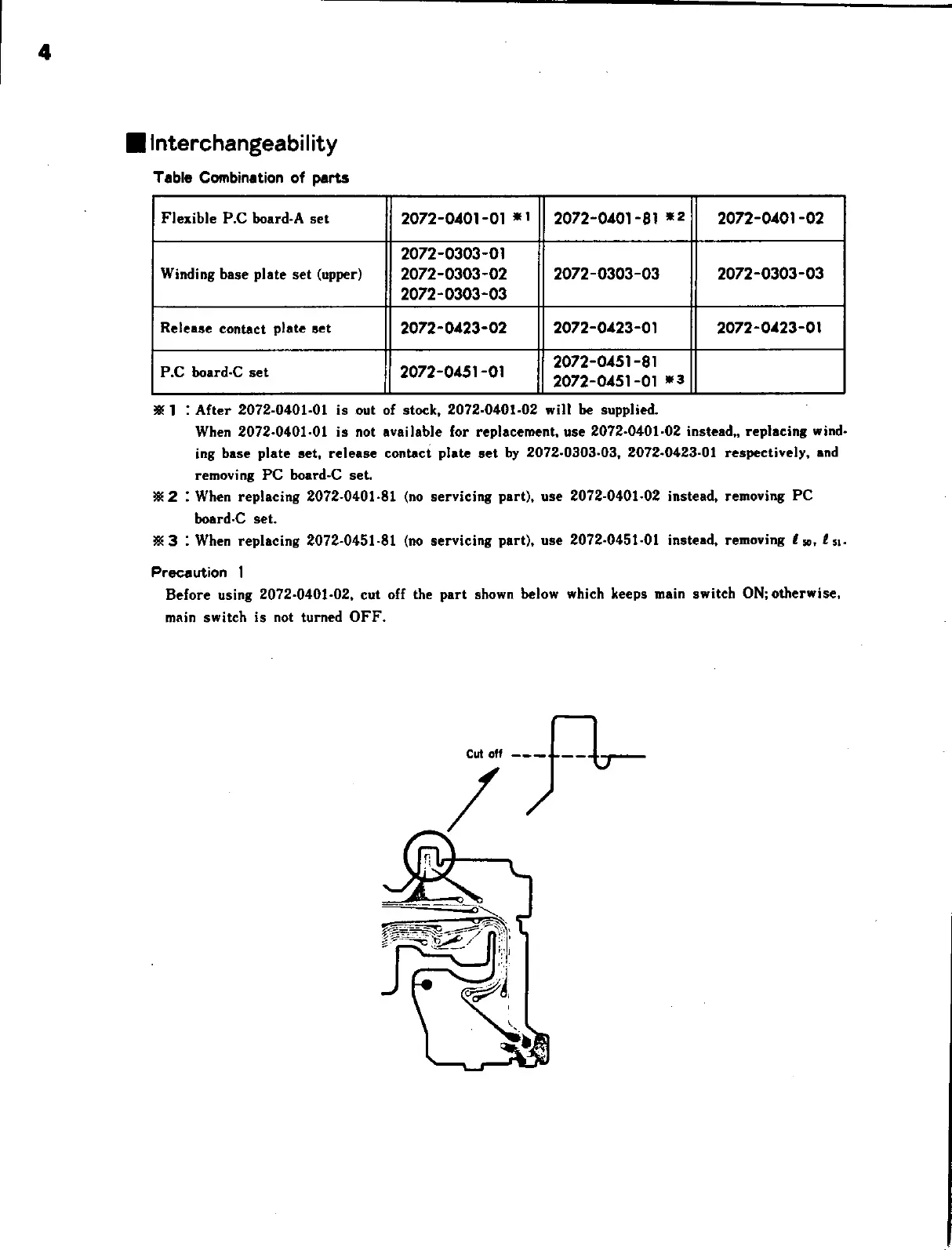

Minolta 7000 - Page 41

W interchangeability
Table Combination of parts
Flexible P.C board-A set 2072-0401-01 *1 || 2072-0401-8} *2 2072-0401 -02
2072-0303-01
Winding base plate set (upper) 2072-0303-02 2072-0303-03 2072-0303-03
2072-0303-03
Release contact plate set 2072-0423-02 2072-0423-01 2072-0423-01
P.C board-C set 2072-0451-01 2072-0451-81
2072-0451-01 *3
% 1 =: After 2072-0401-01 is out of stock, 2072-0401-02 will be supplied.
When 2072-0401-01 is not available for replacement, use 2072-0401-02 instead,, replacing wind-
ing base plate set, release contact plate set by 2072-0303-03, 2072-0423-01 respectively, and
removing PC beard-C set.
% 2 : When replacing 2072-0401-81 (no servicing part), use 2072-0401-02 instead, removing PC
board-C set.
% 3: When replacing 2072-0451-81 (no servicing part), use 2072-0451-01 instead, removing @ 59, @ s:.
Precaution |
Before using 2072-0401-02, cut off the part shown below which keeps main switch ON; otherwise,
main switch is not turned OFF.
