Minolta 7000 - Page 42

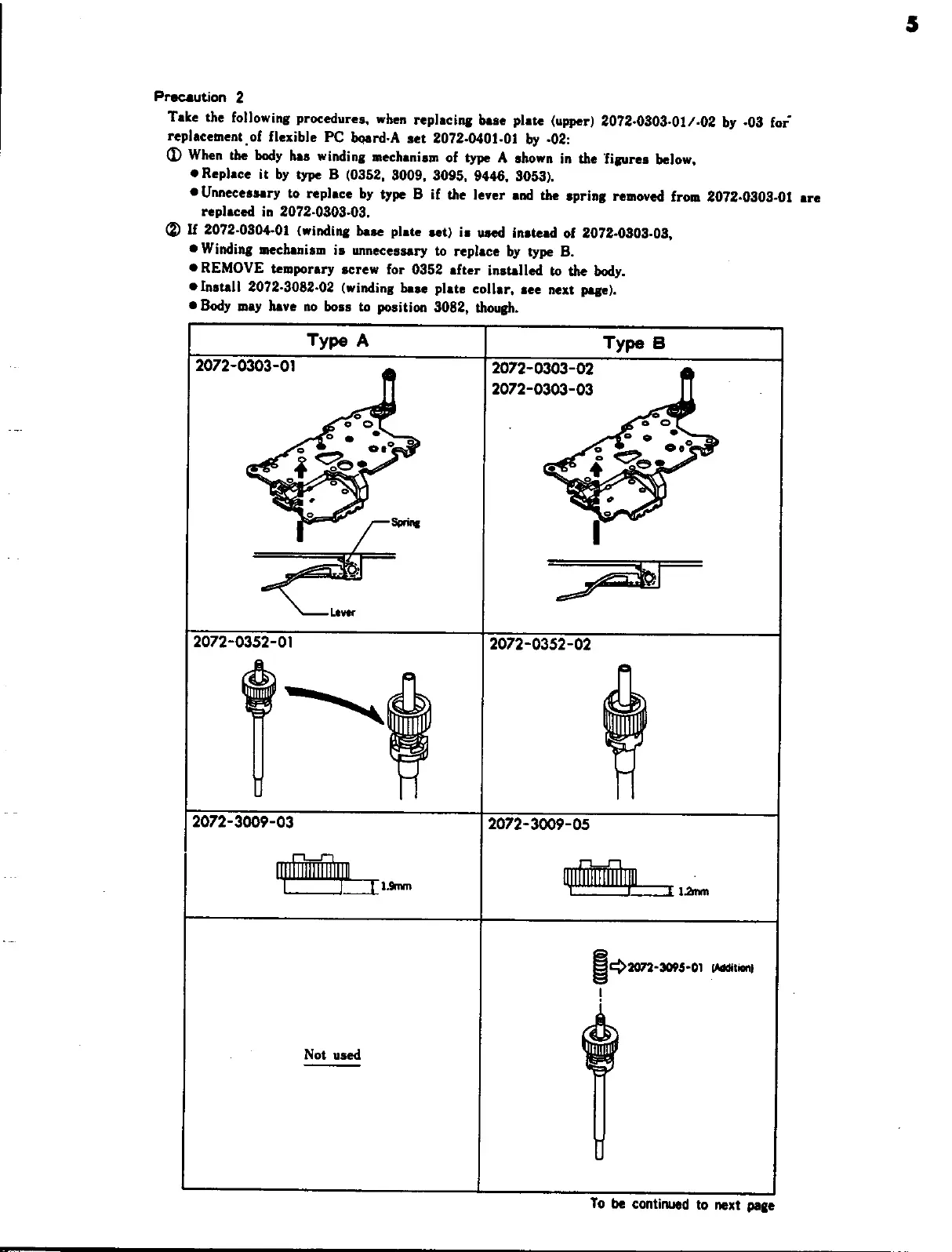

Precaution 2
Take
the
following
procedures,
when
replacing
base
plate
(upper)
2072-0303-01/-02
by
-03
for
replacement
of
flexible
PC
board-A
set
2072-0401-01
by
-02:
@®
When
the
body
has
winding
mechanism
of
type
A
shown
in
the
figures
below,
@Replace
it
by
type
B
(0352,
3009,
3095,
9446,
3053).
@
Unnecessary
to
replace
by
type
B
if
the
lever
and
the
spring
removed
from
2072-0303-01
are
replaced
in
2072-0303-03.
@
If
2072-0304-01
(winding
base
plate
set)
ia
used
instead
of
2072-0303-03,
@
Winding
mechanism
is
unnecessary
to
replace
by
type
B.
@REMOVE
temporary
screw
for
0352
after
installed
to
the
body.
@
Install
2072-3082-02
(winding
base
plate
collar,
see
next
page).
®@
Body
may
have
no
boss
to
position
3082,
though.
Type
A
Type
B
2072-0303-01
.
2072-0303-02
2072-0303-03
2072-0352-01 2072-0352-02
=~
2072-3009-03 2072-3009-05
wi i Lamm
Ei ara-sons-1 (Addition)
\
Not used
To be continued to next page
