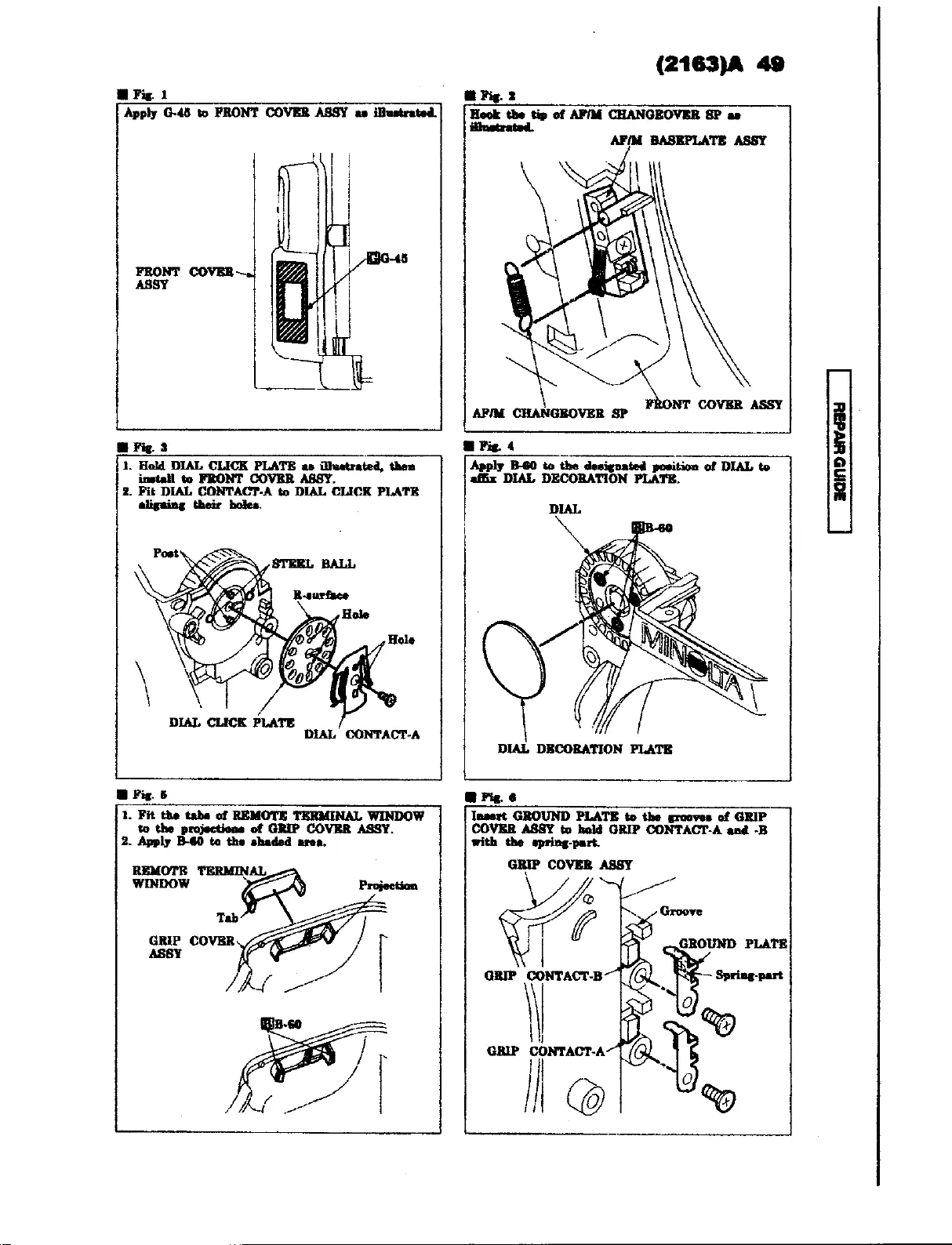

@ Fig. 1
(2163)A 49
it Fig. 2
Apply G-45 to FRONT COVER ASSY as iBustrated.
FRONT COVER -...
ASSY
Hook the tip of AF/M CHANGEOVER SP as
Hivetrated.
AFiM BASEPLATE ASSY
@ Fig. 3
Fig. 4
1. Hold DEAL CLICK PLATE as iustrated, then
install to FRONT COVER ASSY.
2. Fit DIAL CONTACT-A to DIAL CLICK PLATE
Apply B-60 to the desigoated position of DIAL to
affix DIAL DECORATION PLATE.
DIAL DECORATION PLATE
20INS
Bivda
@ Fig. 6
@ Fig. 6
1. Fit the tabs of EEMOTE TERMINAL WINDOW
to the projections of GRIP COVER ASSY.
2. Apply B-60 to the shaded area.
REMOTE TERMINAL
WINDOW Projection
Tab
GRIP COVER
ASBY
Tasert GROUND PLATE to the grooves of GRIP
COVER ASSY to hald GRIP CONTACT-A and -B
with the spring-part.
GRIP COVER ASSY
Vawe
l
