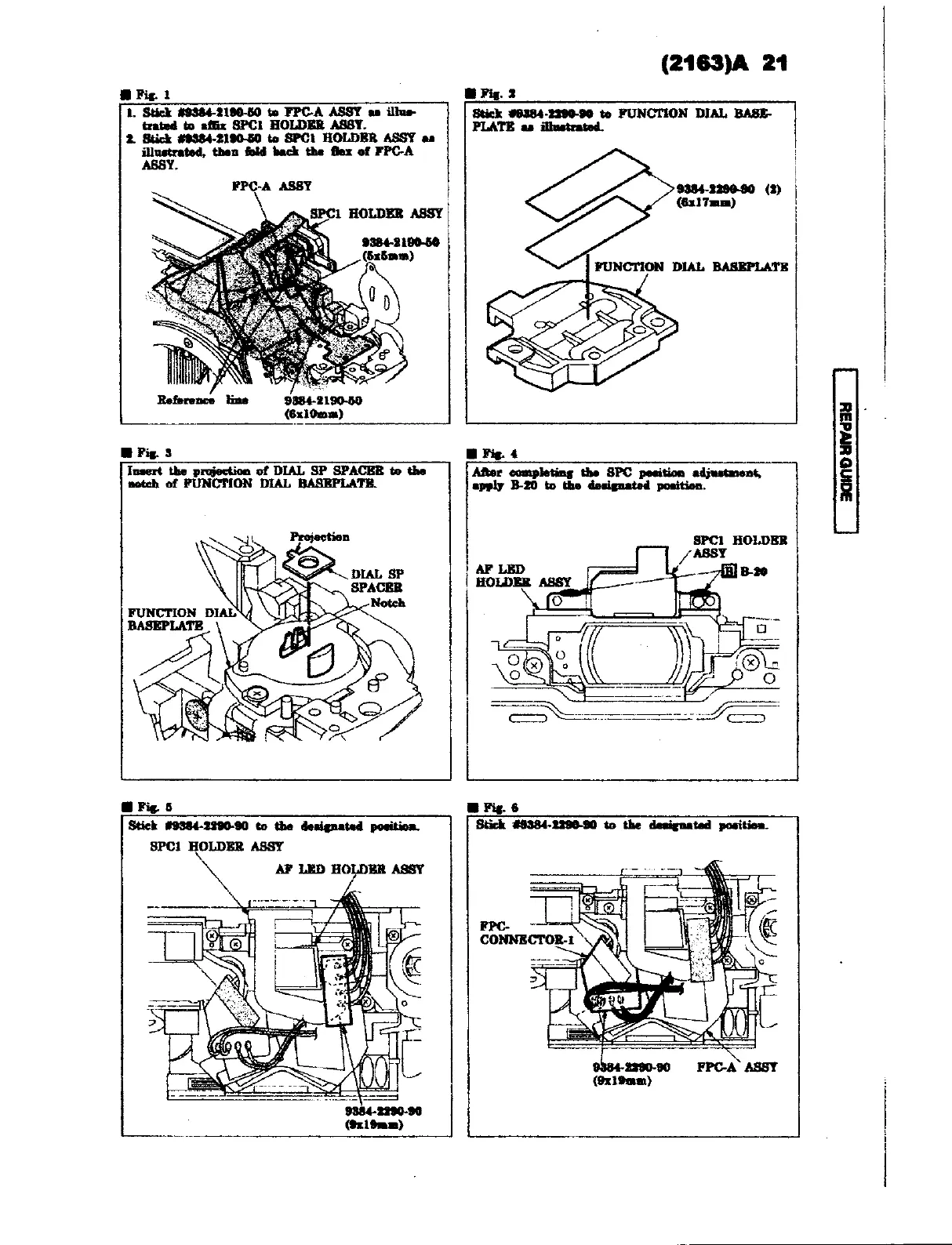

Fig.
!
(2163)A
21
Fig.
2
1.
Stick
#9984-2190-50
to
FPC-A
ASSY
as
illus-
trated
to
affix
SPC]
HOLDER
ASSY.
2
Stick
#8384-2190-50
to
SPC)
HOLDER
ASSY
as
illustrated,
then
fold
back
the
flex
of
FPC-A
(6x1l0mm)
Stick
#9384-2290-90
to
FUNCTION
DIAL
BASE-
PLATE
as
ilinetrated.
@
Fig.
3
m
Fig.
4
Insert
the
projection
of
DIAL
SP
SPACER
to
the
notch
of
FUNCTION
DIAL
BASEPLATE.
After
completing
the
SPC
position
adjustment,
apply
3-20
to
the
designated
position.
@
Fig.
5
@
Fig.
6
Stick
#9384-2790-90
to
the
designated
position.
SPC!
HOLDER
ASSY
Stick
#6384-2290-90
to
the
designated
position.
4
30m0
