NAMES OF PARTS
6
7
DATA PANEL VIEWFINDER
1 2 3 4 5 6
7
8
9
10
11
12
13
14
1516
17
18
1920212223
1
6
7 8 9 10 11 12 13 14 15
2 33
4
3
5

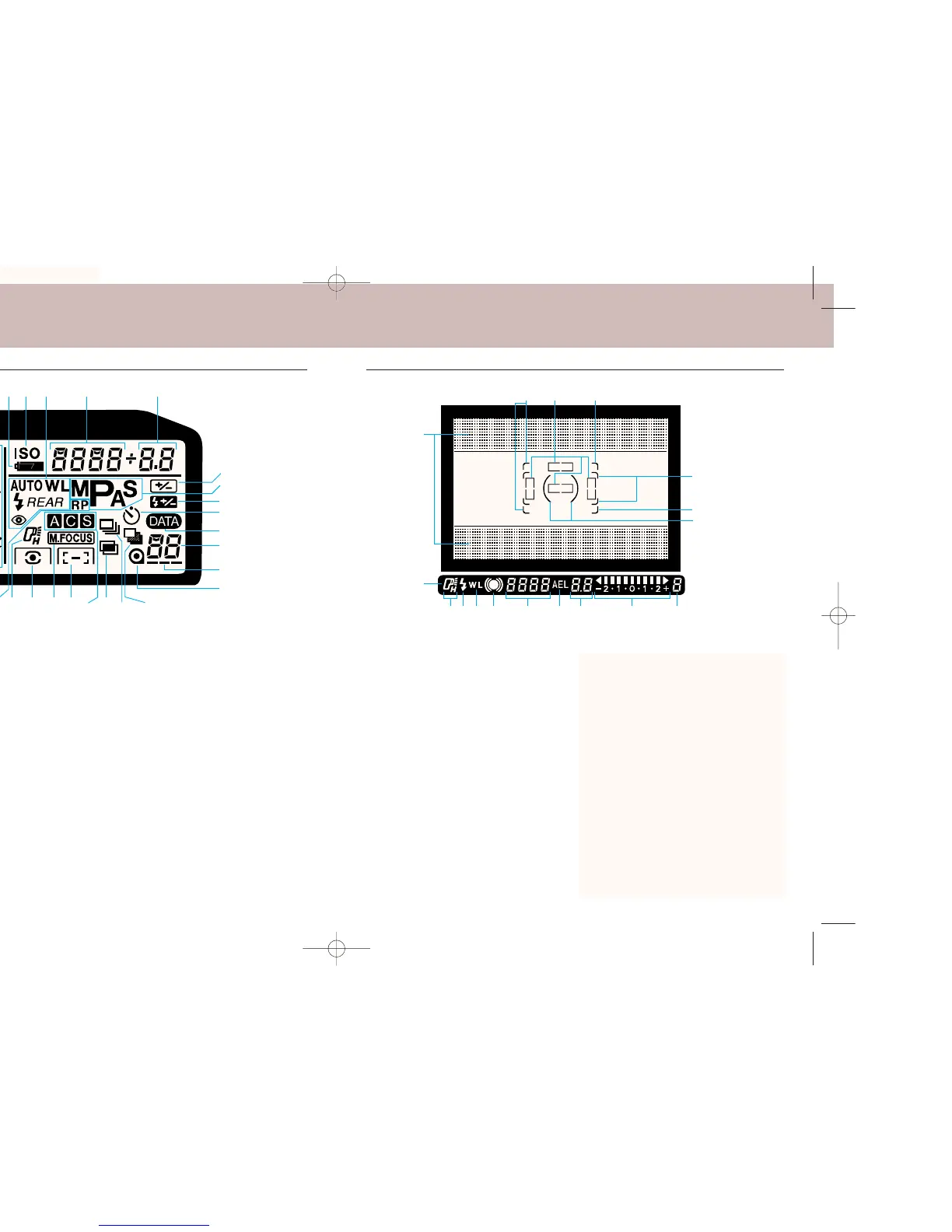

1. Subject Program Selection icons
2. Battery-condition indicator
3. Film-speed mark
4. Flash-mode indicators
5. Shutter-speed/Film-
speed/Focus-area display
6. Aperture/Exposure-
compensation/Flash-
compensation display
7. Exposure-compensation
indicator
8. Exposure-mode indicator
9. Flash-compensation display
10. Self-timer indicator
1. Panorama frame
2. Local-focus areas
3. Horizontal wide-focus frame
4. Vertical wide-focus frame
5. Spot-metering area
6. Flash-on indicator
7. High-speed sync flash indicator
8. Flash signals
9. Wireless-flash indicator
11. Data-memory indicator
12. Frame counter
13. Film-transport signal
14. Film-cartridge mark
15. Exposure-bracketing indicator
16. Drive-mode indicator
17. Multiple-exposure indicator
18. AF-mode indicator
19. Focus-area indicator
20. Manual-focus indicator
21. Metering-mode indicator
22. High-speed sync indicator
23. Release-priority indicator
10. Focus signals
11. Shutter-speed/Focus-area
display
12. AEL indicator
13. Aperture/Exposure-
compensation/Flash-
compensation display
14. Metering index
15. Frame counter
