Minolta XE - Mirror Box-2; Fig-15 How to engage 2524 SP; Fig-16 How to engage 2578 SP

20

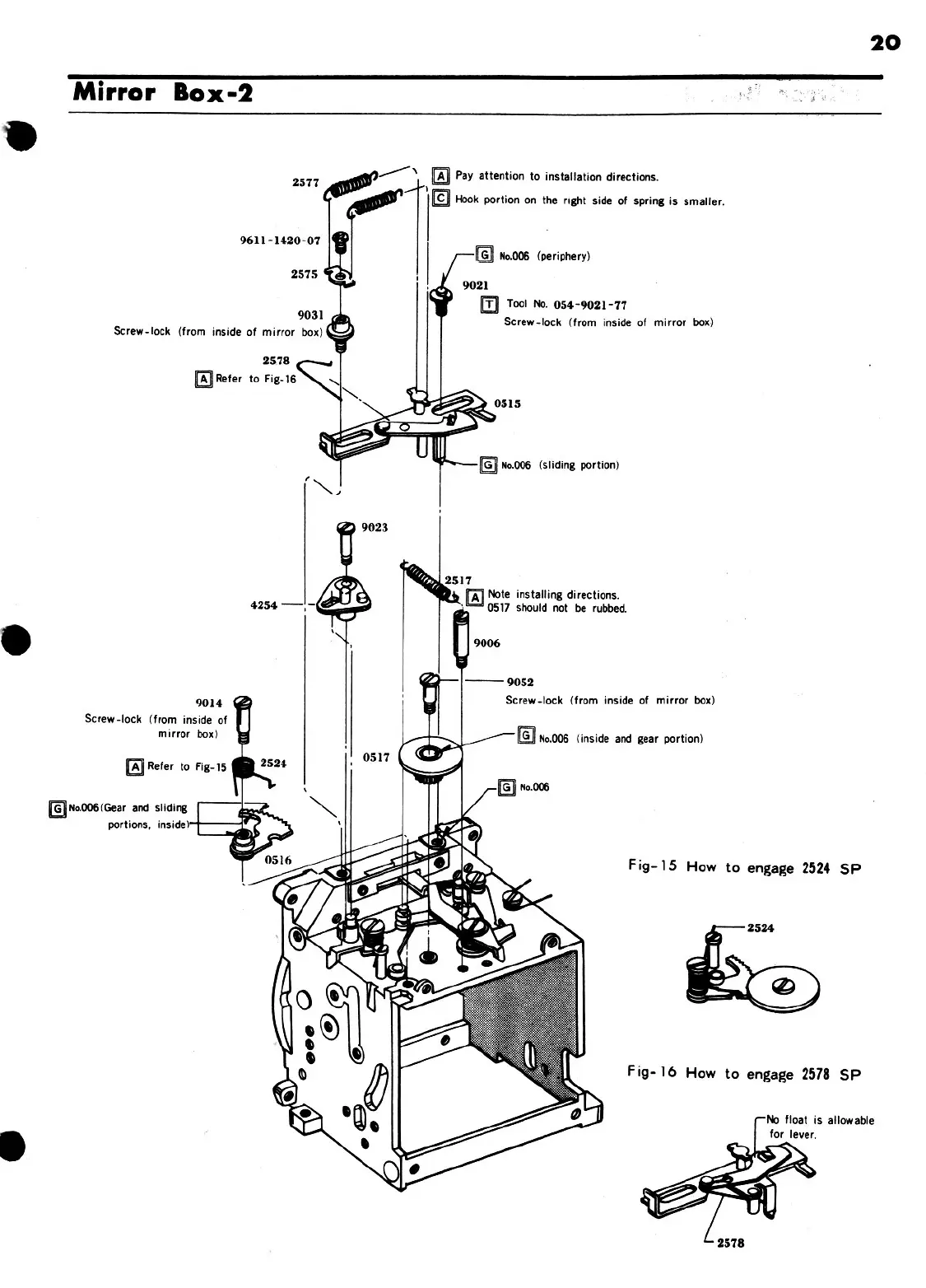

Mirror Box-2
Screw-lock (from inside of mirror box) GQ
mirror
[6] ¥2.006 (Gear and sliding
Refer to Fig-16
9014
box)
Screw-lock (from inside of
Refer
to
Fig-15
2524
4
9611-1420-07
2575 Te
9031
2578
4254 ——\-
portions, inside}
9023
Pay attention to installation directions.
(c] Hook portion on the right side of spring is smaller.
No.006 (periphery)
9021
Tool No. 054-9021-77
Screw-lock (from inside of mirror box)
2517
Note installing directions.
0517 should not be rubbed.
9006
9052
Screw-lock (from inside of mirror box)
| IJ No.006 (inside and gear portion)
Fig-15
How
to
engage
2524
SP
Fig-16
How
to
engage
2578
SP
No float is allowable
for lever.
