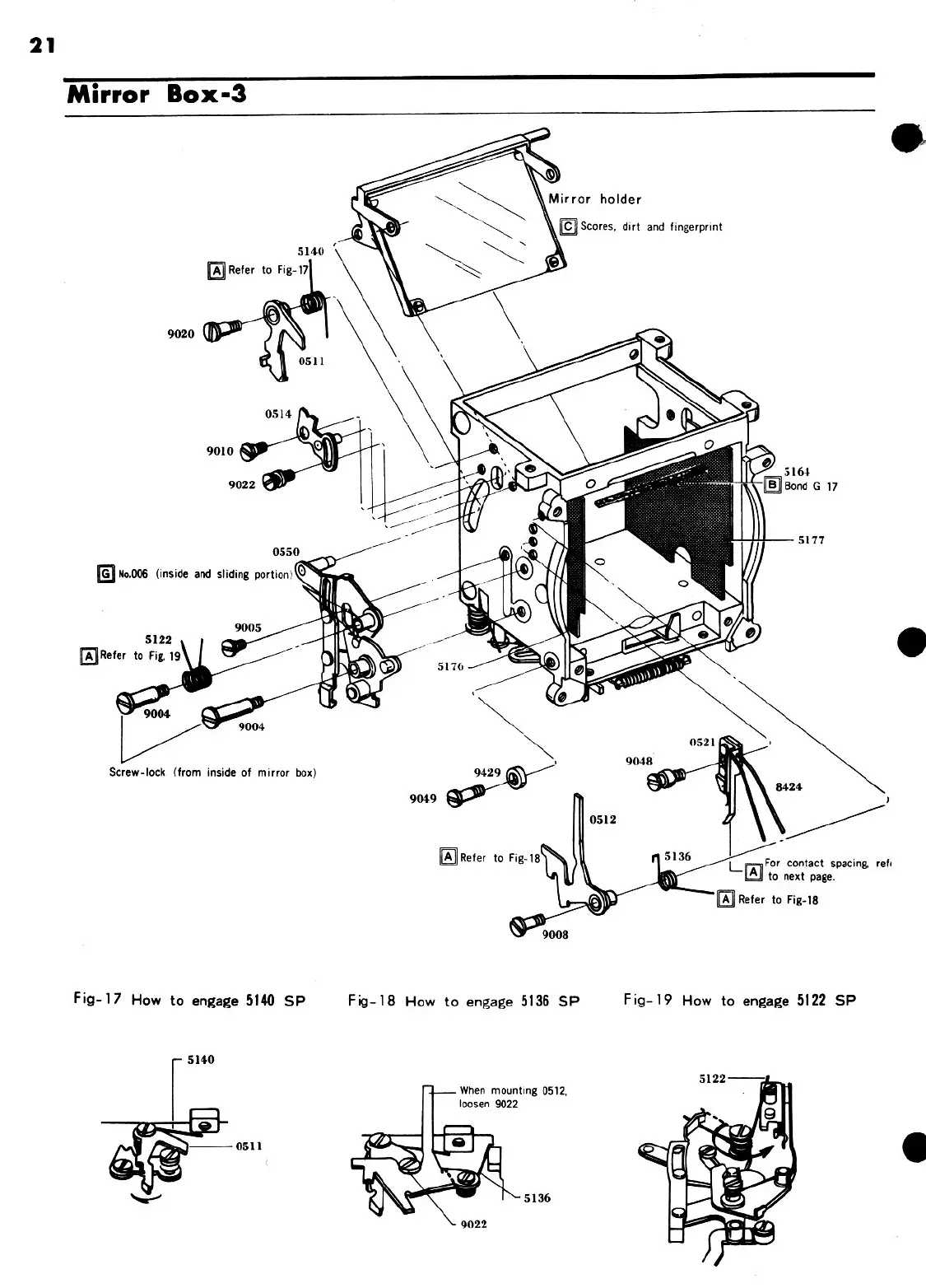

Minolta XE - Mirror Box-3; Fig-17 How to engage 5140 SP; Fig-18 How to engage 5136 SP; Fig-19 How to engage 5122 SP

21
Mirror Box-3
\ Mirror holder
\ [Cj Scores, dirt and fingerprint
5140 ‘ }
[A] Refer to Fig-17
9020
5177
5122
[A] Refer to Fig, 19
Screw-lock (from inside of mirror box)
9049
For contact spacing, refi
Ufa] to next page.
(A) Reter to Fig-18
Fig-17 How to engage 5140 SP Fig-18 How to engage 5136 SP Fig-19 How to engage 5122 SP
r- 5140
{— When mounting 0512,
loosen 9022
test =
0511 e
~~ 5136
9022
