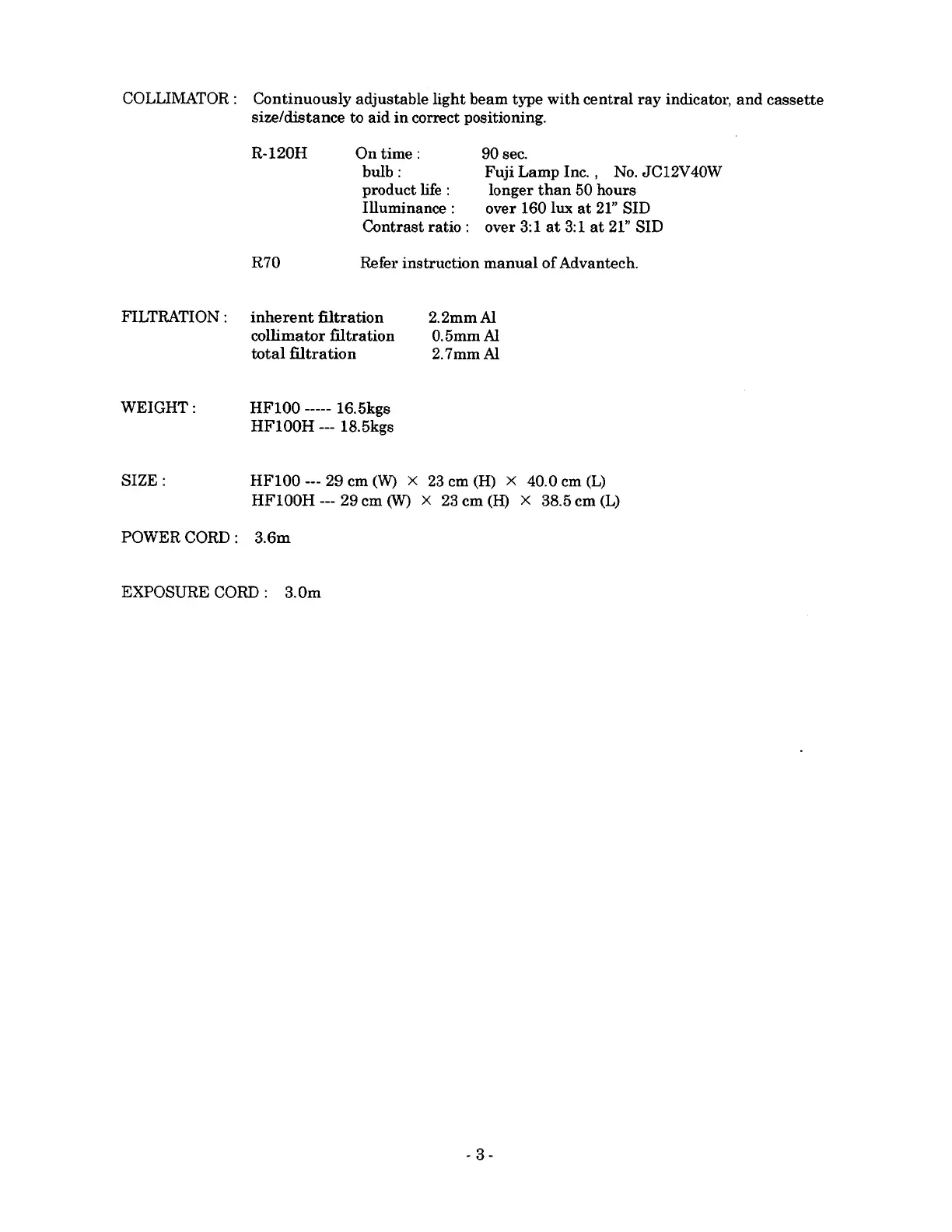

MinXray HF100 - Collimator and Filtration Specifications; Physical Specifications (Weight, Size, Cords)

COLLIMATOR: Continuously adjustable light beam type with central ray indicator, and cassette
size/distance to aid in correct positioning.
R-120H On time : 90 sec.
bulb: Fuji Lamp Inc., No. JC12V40W
product life : longer than 50 hours
Tlluminance : over 160 lux at 21” SID
Contrast ratio: over 3:1 at 3:1 at 21” SID
R70 Refer instruction manual of Advantech.
FILTRATION: inherent filtration 2.2mm Al
collimator filtration 0.5mm Al
total filtration 2.7mm Al
WEIGHT: HF100 ----- 16.5kgs
HF100H --- 18.5kgs
SIZE : HF100 --- 29 cm (W) X 23 cm (H) X 40.0 cm (L)
HF100H --- 29 cm (W) X 23cm (H) x 38.5 cm (L)
POWER CORD: 3.6m
EXPOSURE CORD: 3.0m
