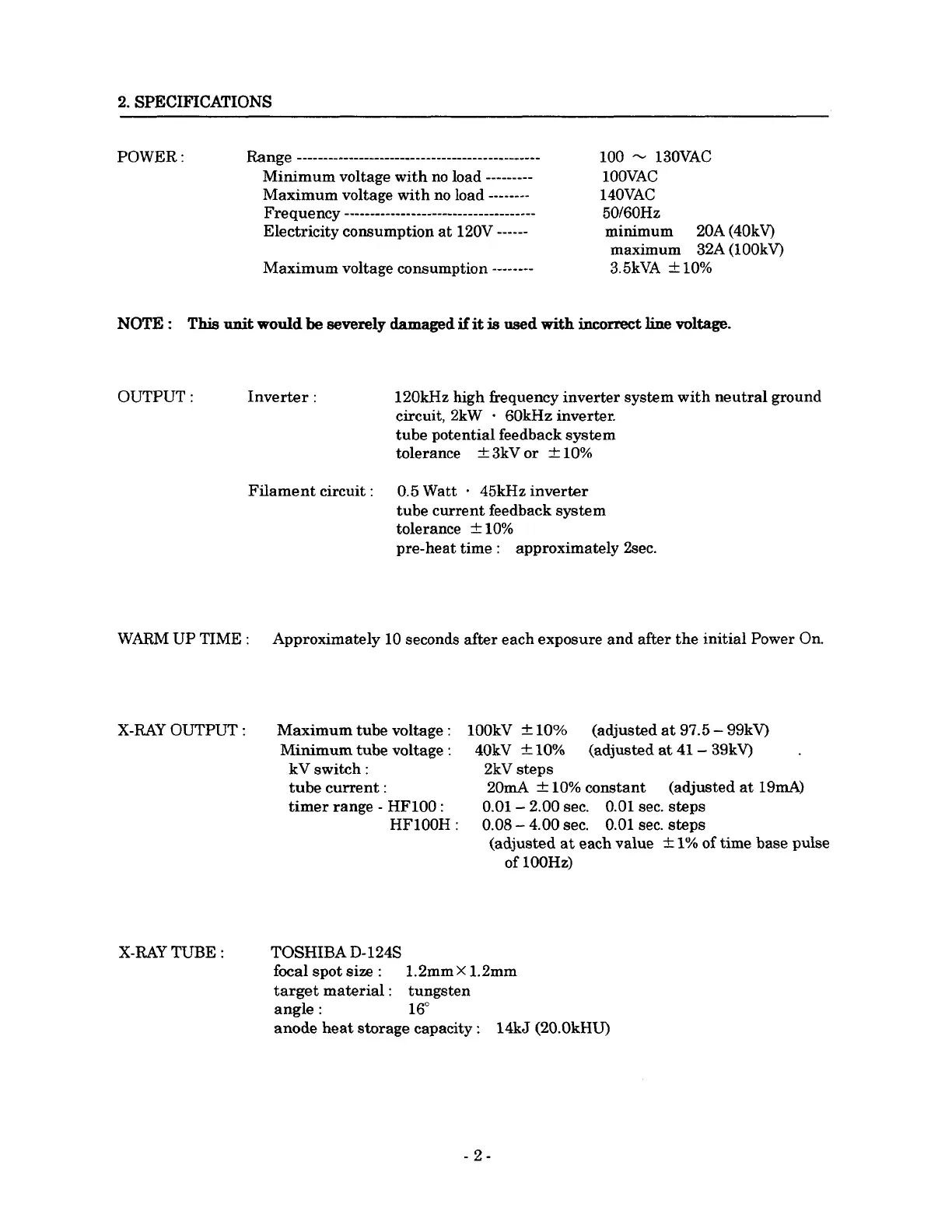

2. SPECIFICATIONS
POWER: Range
Minimum voltage with no load ---------
Maximum voltage with no load --------
Frequency
Electricity consumption at 120V ------
Maximum voltage consumption --------
100 ~ 130VAC
100VAC
140VAC
50/60Hz
minimum 20A (40kV)
maximum 32A(100kV)
3.5kVA + 10%
NOTE: This unit would be severely damaged if it is used with incorrect line voltage.
OUTPUT : Inverter : 120kHz high frequency inverter system with neutral ground
circuit, 2kW - 60kHz inverter.
tube potential feedback system
tolerance +3kVor +10%
Filament circuit: 0.5 Watt - 45kHz inverter
tube current feedback system
tolerance +10%
pre-heat time: approximately 2sec.
WARM UP TIME: Approximately 10 seconds after each exposure and after the initial Power On.
X-RAY OUTPUT : Maximum tube voltage: 100kV +10%
Minimum tube voltage: 40kV 10%
(adjusted at 97.5 — 99kV)
(adjusted at 41 — 39kV)
kV switch: 2kV steps
tube current : 20mA +10% constant (adjusted at 19mA)
timer range - HF100: 0.01 — 2.00 sec. 0.01 sec. steps
HF100H : 0.08 — 4.00 sec. 0.01 sec. steps
(adjusted at each value £1% of time base pulse
of 100Hz)
X-RAY TUBE : TOSHIBA D-124S
focal spot size: 1.2mmX1.2mm
target material: tungsten
angle : 16°
anode heat storage capacity: 14kJ (20.0kHU)
