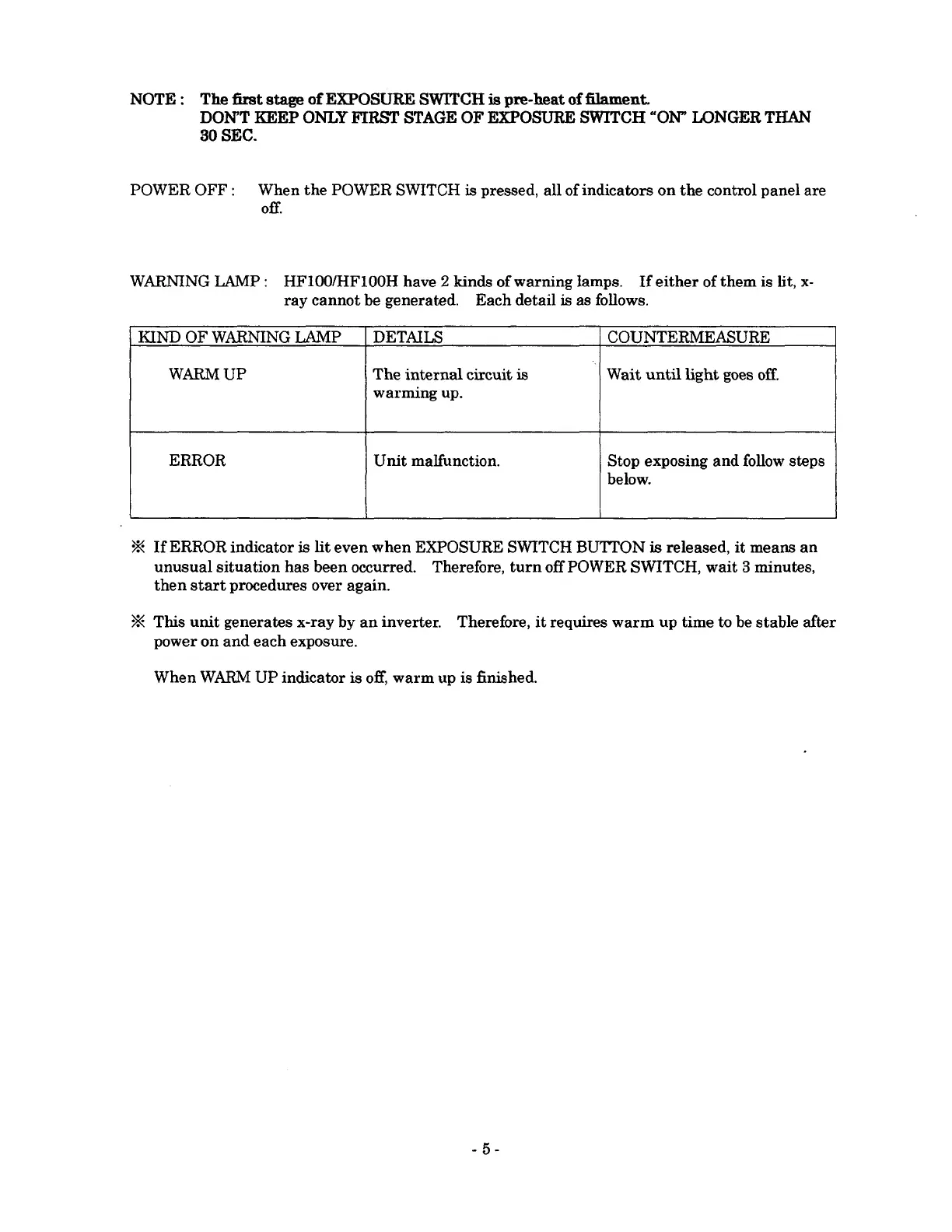

MinXray HF100 - Warning Lamps and Indicators

NOTE: The first stage of EXPOSURE SWITCH is pre-heat of filament.
DON’T KEEP ONLY FIRST STAGE OF EXPOSURE SWITCH “ON” LONGER THAN
30 SEC.
POWER OFF: When the POWER SWITCH is pressed, all of indicators on the control panel are
off.
WARNING LAMP: HF100/HF100H have 2 kinds of warning lamps. If either of them is lit, x-
ray cannot be generated. Each detail is as follows.
KIND OF WARNING LAMP DETAILS COUNTERMEASURE
WARM UP The internal circuit is | Wait until light goes off.
warming up.
ERROR Unit malfunction. Stop exposing and follow steps
below.
x If ERROR indicator is lit even when EXPOSURE SWITCH BUTTON is released, it means an
unusual situation has been occurred. Therefore, turn off POWER SWITCH, wait 3 minutes,
then start procedures over again.
This unit generates x-ray by an inverter. Therefore, it requires warm up time to be stable after
power on and each exposure.
When WARM UP indicator is off, warm up is finished.
