- 3 -

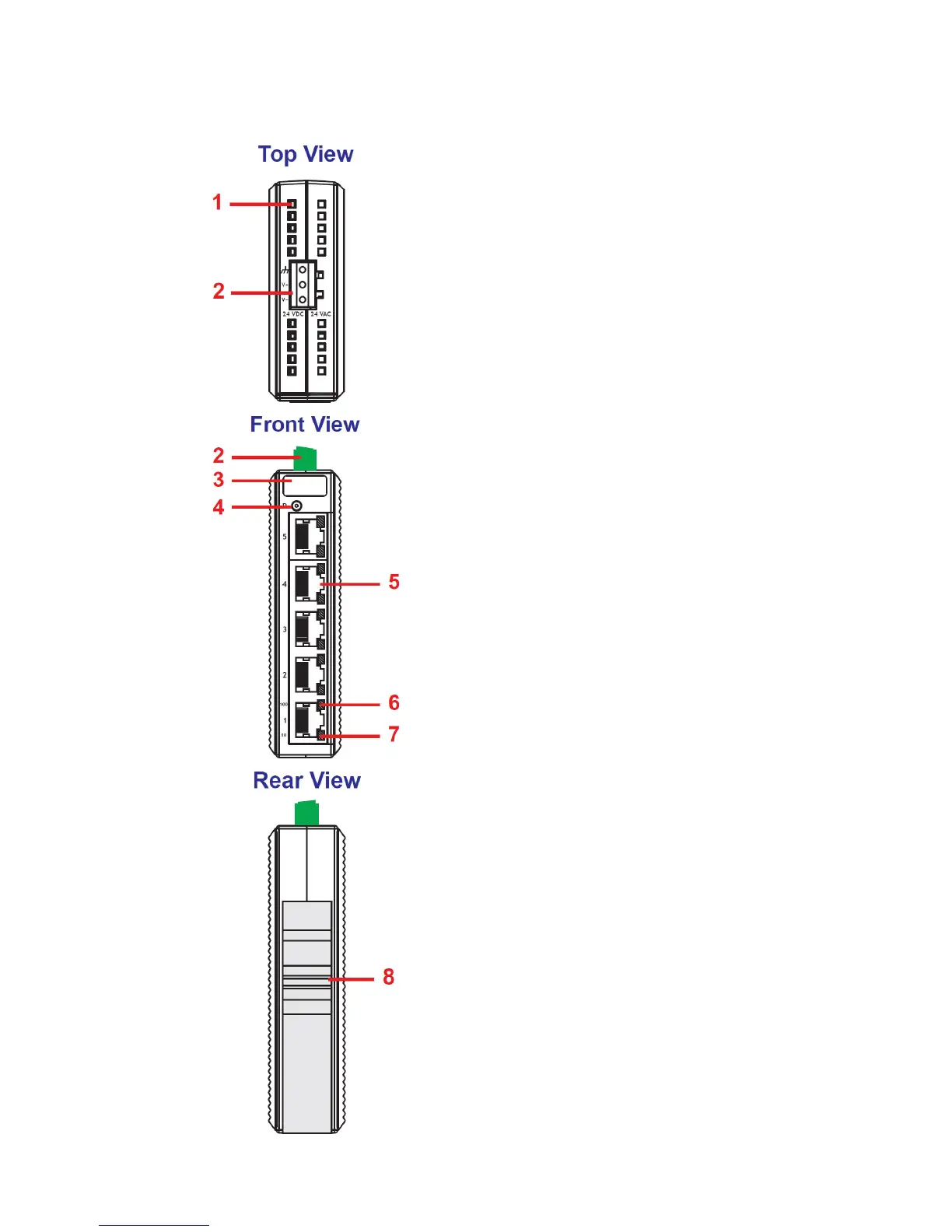

Panel Layout of the IESH-MB205-R
Series
1. Heat dissipation orifices
2. Terminal block for power input
and grounding
3. Misumi logo
4. Power input LED
5. 10/100BaseT(X) Port
6. TP port’s 100 Mbps LED
7. TP port’s 10 Mbps LED
8. DIN-Rail kit
