DIN-Rail Mounting
The plastic DIN-Rail attachment plate should already be fixed to the rear panel
of the EDS when you take it out of the box. If you need to reattach the
DIN-Rail attachment plate, make sure the DIN-Rail kit is situated towards the
top, as shown in the figures below.

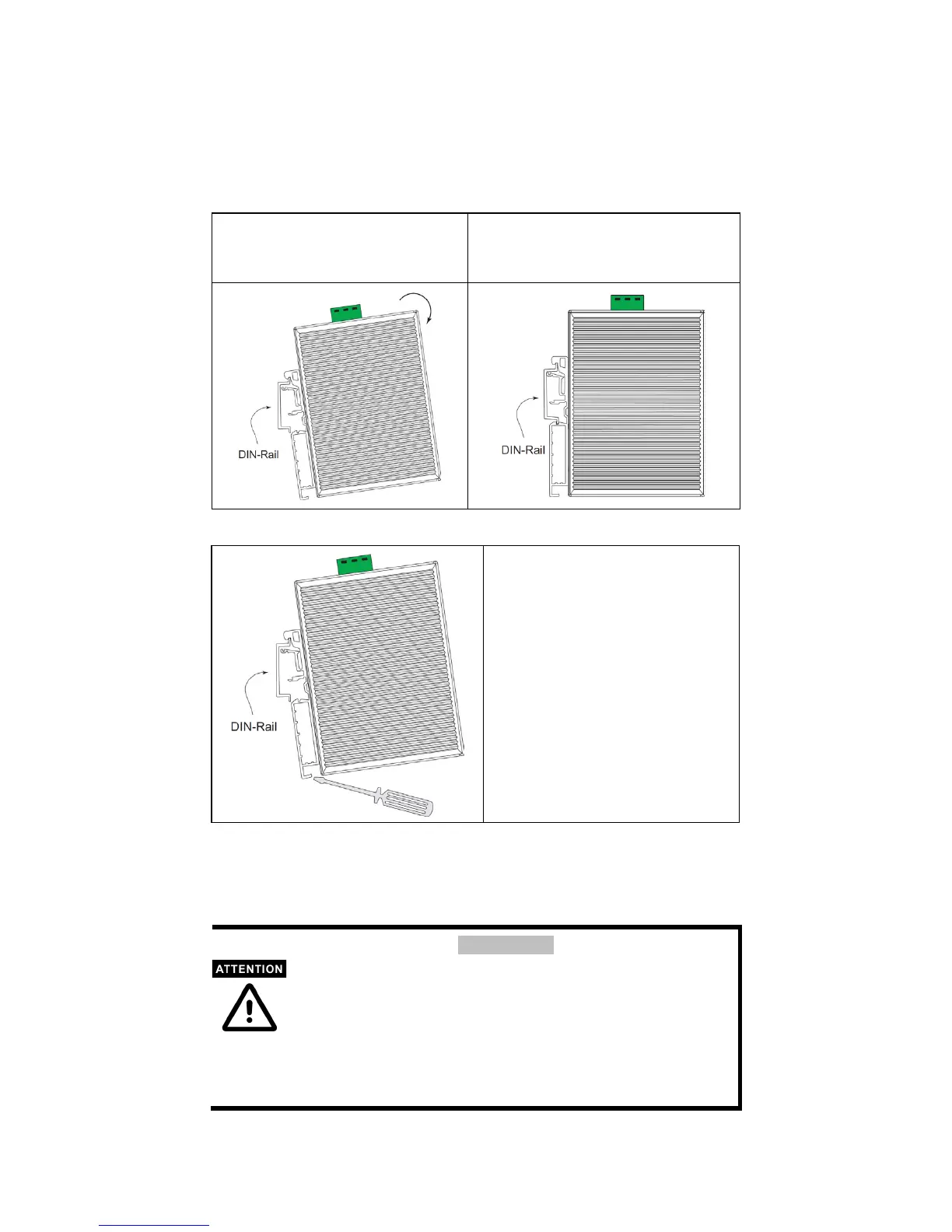

STEP 1:
Insert the top of the DIN-Rail into
the slot.
STEP 2:
The DIN-Rail attachment unit will
snap into place as shown below.
To remove the IESH-MB205-R from
the DIN-Rail, insert a flat-blade screw
driver horizontally into the DIN-Rail
kit under the IESH-MB205-R, and
then pull it upwards and release the
switch towards you and away from
the DIN-Rail.
Wiring Requirements
Safety First!
Be sure to disconnect the power cord before installing and/or
wiring your
EtherDevice Switch.
Cal
culate the maximum possible current in each power wire and
common wire. Observe all electrical codes dictating the
maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could
overheat, causing serious damage to your equipment.
