MISUMI IESH-MB205-R Series User Manual

- 6 -
You should also pay attention to the following points:
 Use separate paths to route wiring for power and devices. If power wiring
and device wiring paths must cross, make sure the wires are perpendicular
at the intersection point.
 NOTE: Do not run signal or communications wiring and power wiring in
the same wire conduit. To avoid interference, wires with different signal
characteristics should be routed separately.
 You can use the type of signal transmitted through a wire to determine
which wires should be kept separate. The rule of thumb is that wiring that
shares similar electrical characteristics can be bundled together.
 Keep input wiring and output wiring separated.
 It is strongly advised that you label wiring to all devices in the system when
necessary.

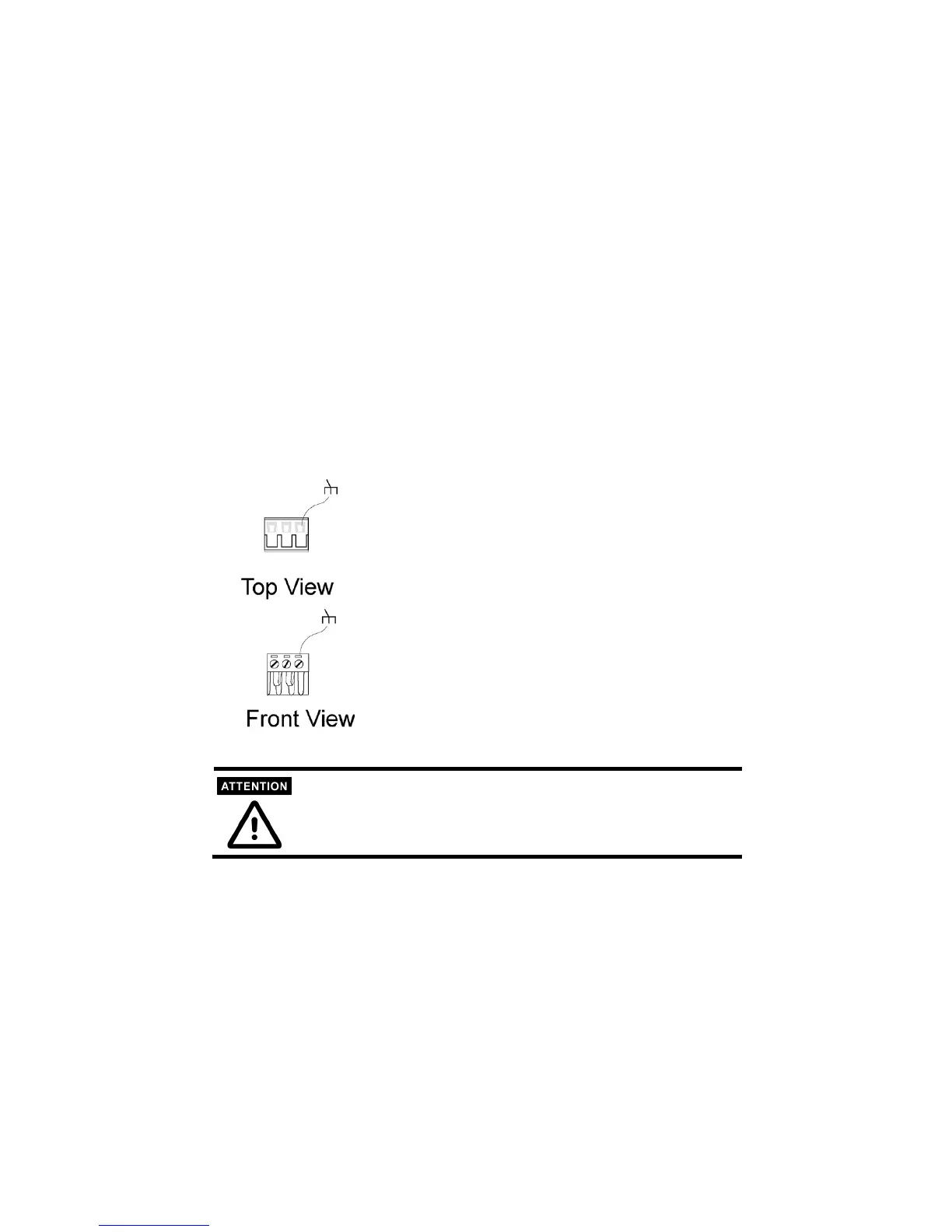

Grounding the EtherDevice
Switch
Grounding and wire routing help limit the effects
of noise due to electromagnetic interference
(EMI). Run the ground connection from the right
most contact of the 3-
contact terminal block to the
grounding surface prior to connecting devices.
This product is intended to be mounted to a well-grounded
mounting surface such as a metal panel.

MISUMI IESH-MB205-R Series Specifications

General

Brand	MISUMI
Model	IESH-MB205-R Series
Category	Switch
Language	English
