MISUMI IESH-MB205-R Series User Manual

- 7 -
Wiring the Power Inputs

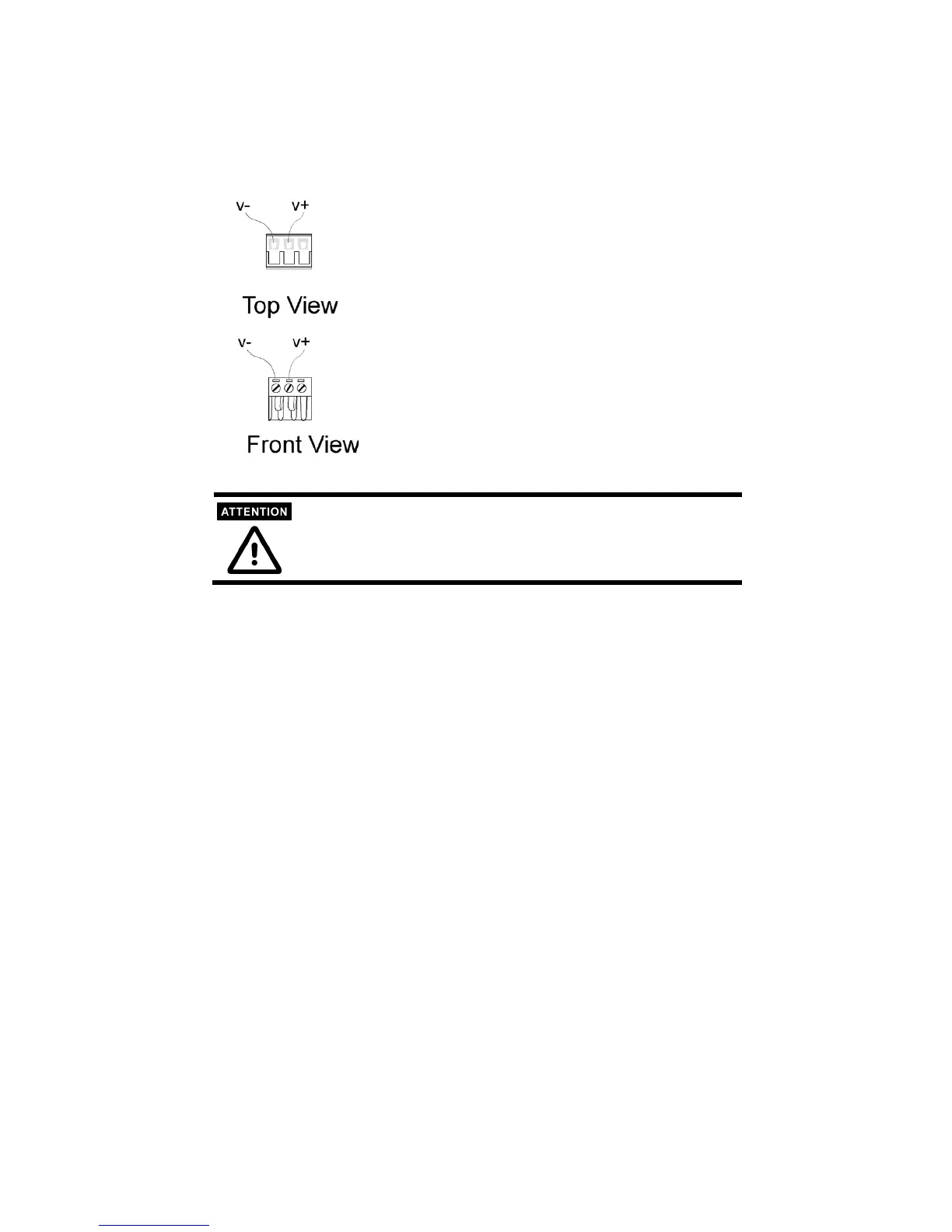

The two left-most contacts of the 3-contact terminal block connector on the top
panel are used for the DC and AC inputs. Top and front views of one of the
terminal block connectors are shown here.
STEP 1: Insert the negative/positive DC wires
into the V-/V+ terminals.
STEP 2: To keep the DC wires from pulling
loose, use a small flat-
blade screwdriver to tighten
the wire-
clamp screws on the front of the terminal
block connector.
STEP 3: Insert the plastic terminal block
connector prongs into the terminal block receptor,
which is located on the top panel.
 Only connect to a class 2 power supply.
 Only use 60/75°C copper (CU) wire, 28-12 AWG.
 Use a maximum torque of 4.5 in-lb.
