N/B MAINTENANCE
N/B MAINTENANCE

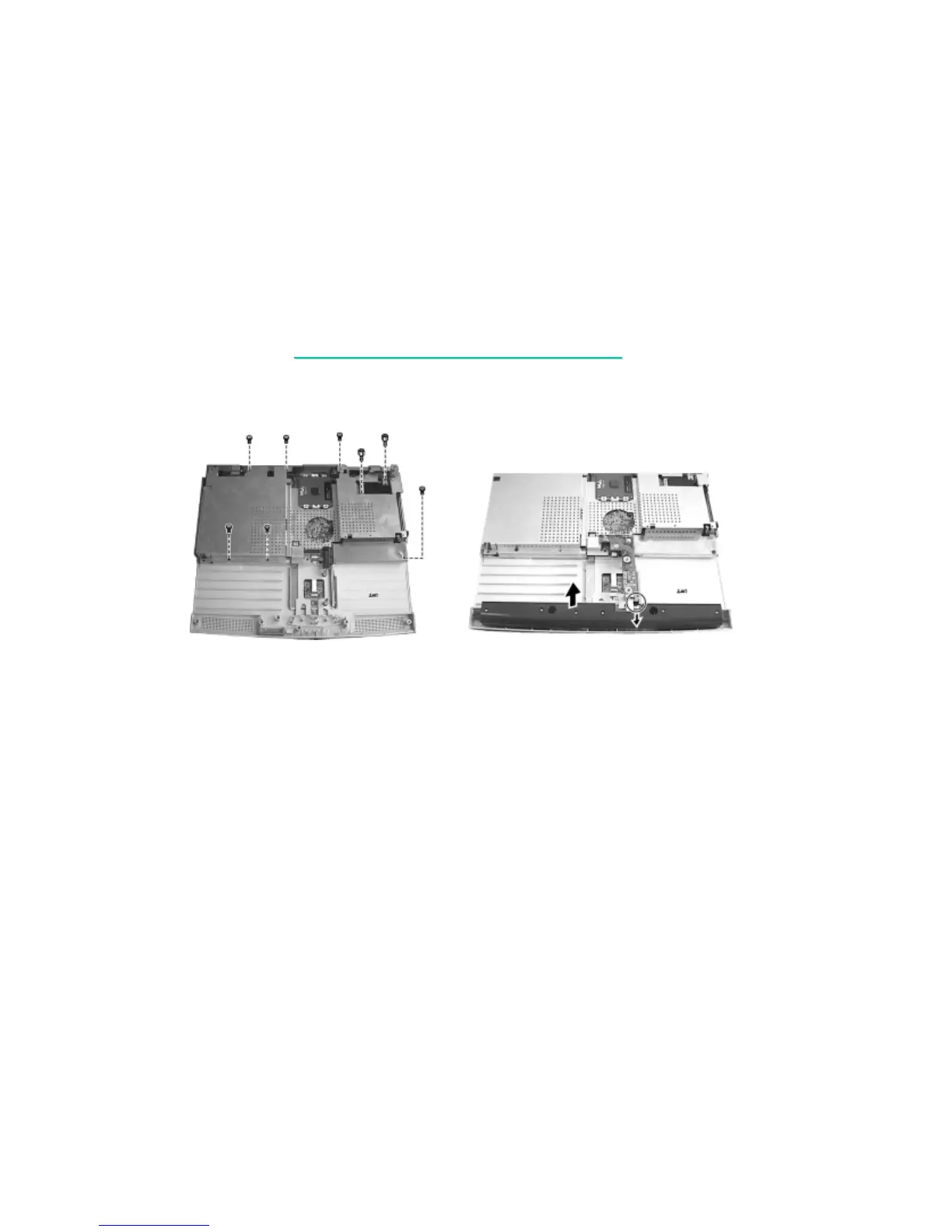

6. Remove six screws and two hexnut screws fastening the metal shield, and then lift the shield up
from the system board carefully. (figure 5-23)
Figure 5-23 Figure 5-24
7. Lift up the speaker assembly and disconnect the cable. (figure 5-24)
