MITJAVILA V2 - 10. Cassette Assembly Installation on Wall Profile; Install and Secure Cassette Assembly

Page 10

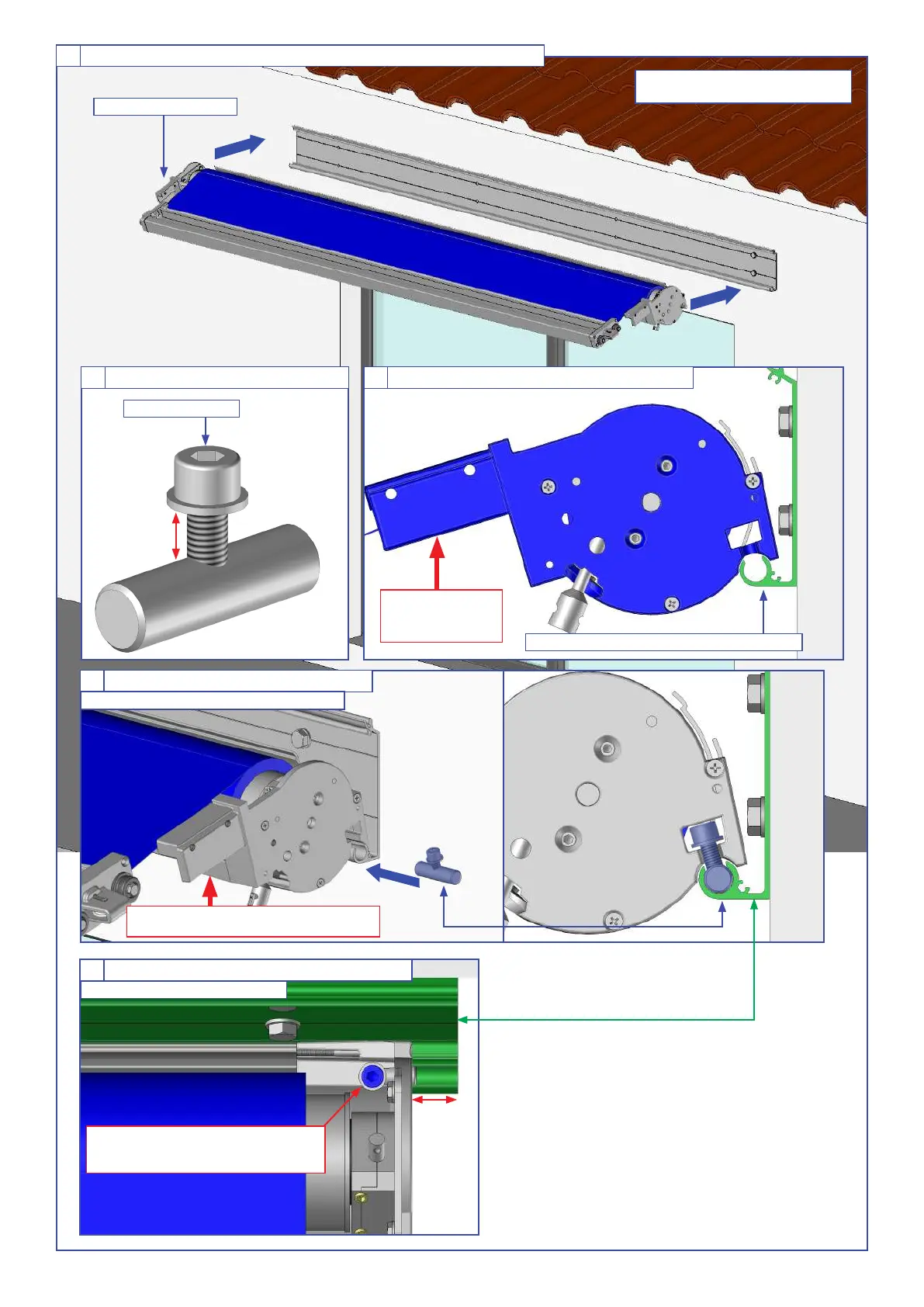

10 Installation of the cassette assembly on the wall prole.
Cassette assembly
Place both caps on the wall prole.
BA Assemble 2 locking pieces.
11mm
Installing the cassette assembly.
C Slide the locking pieces.
Note : to carry out on both sides.
IN POSITION
IN POSITION
IMPORTANT, hold the cassette until it is
screwed on.
3mm
IMPORTANT, tighten the screw with a
# 6 hex wrench from above to hold the
cassette assembly.
D Screw in the cassette assembly.
Note : to carry out on both sides.
IMPORTANT, hold
the cassette until it
is screwed on.
DOUBLE SPAN PERGOLA :
See page 13.
DIN912M8x20mm
