Page 9

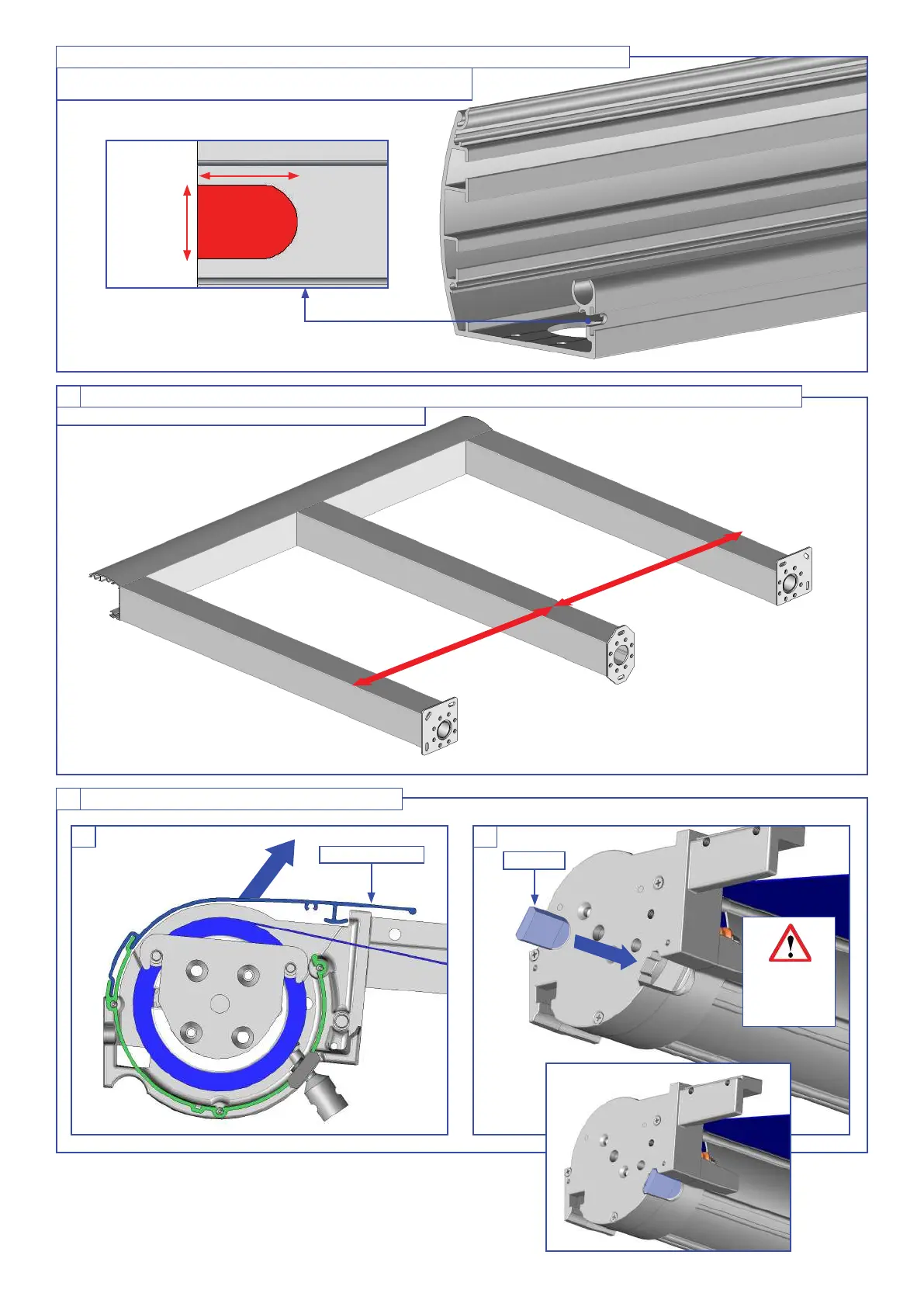

8 Depending on the evacuation chosen, perform the same operations for the middle foot.
Left foot
Right foot
Middle foot
4000mm maxi
Note : respect the orientation of the xing plates to the oor.
4000mm maxi
Mechanization of the front cassette, front cassette LED option only.
Note : perform the operation on the motor side. For double span per-
gola, perform the mechanization at both ends of the front cassette.
6mm
10mm
9 Preparation of the Cassette assembly.
CE135 06
CM155
Operation on
the opposite
side to the
motor.
A B
