Page 8

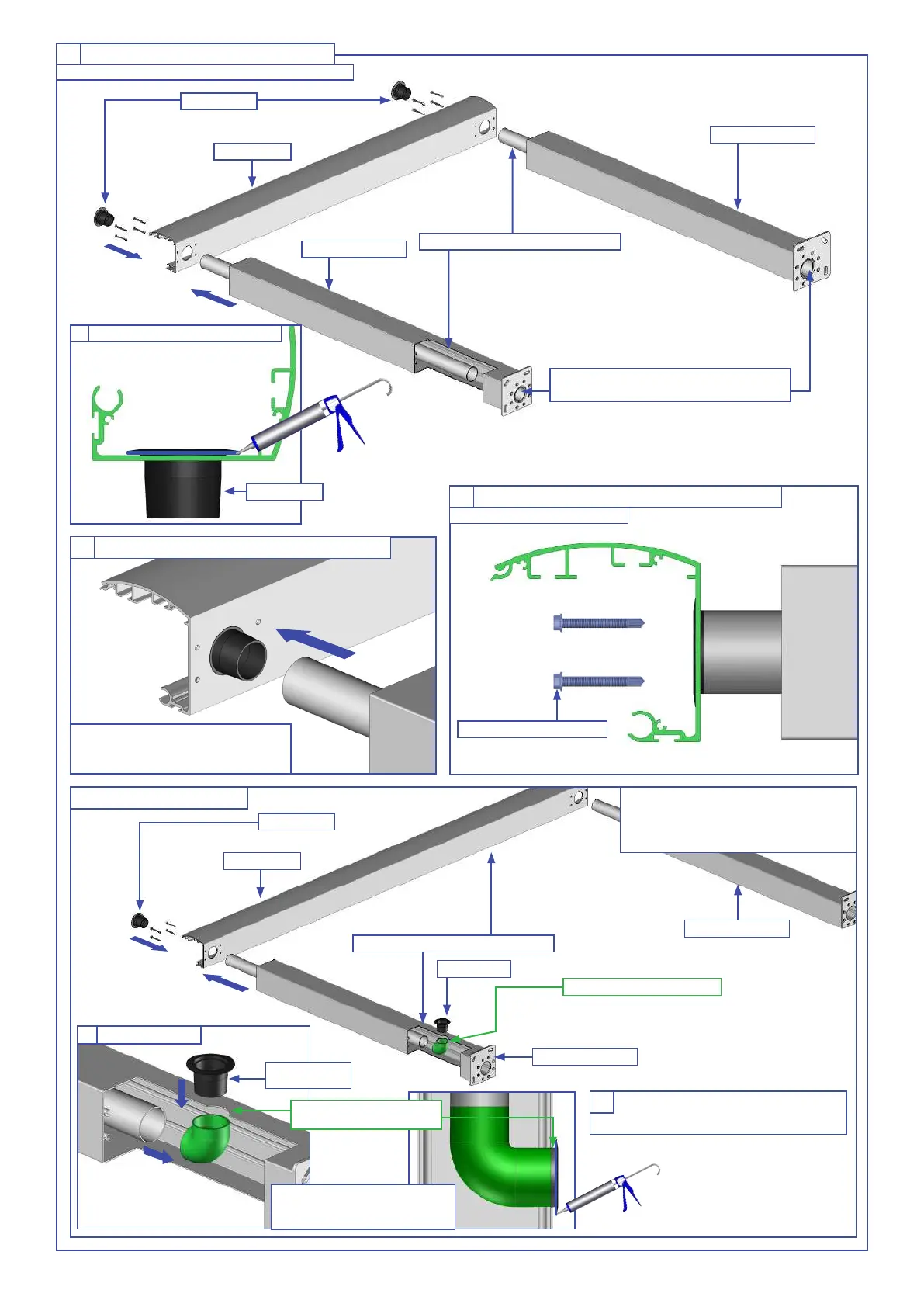

7 Mounting the back cassette.
Repeat operations A, B and
C above.
B Guide the PVC tube over the ring.
Note : Optional, glue the tube on
the ring to hold it for the rest of the
operations.
C Attach the post to the front cassette.
Note : seal the screw heads.
Note : evacuation to be performed on each foot.
Evacuation elbow.
Ø50 mm PVC tube. Not supplied.
PVC ring
Cut the ring if
necessary.
A Fit the elbow.
Note : seal between the ring,
the PVC elbow not supplied
and the foot.
Note : Determine the face where the
water evacuation will be located. Take
into account that the water evacuation
must face the outside of the pergola.
B
A Glue the ring on the cassette.
Ø50 mm PVC tube. Not supplied.
Tube passage at the bottom, for evacua-
tion to the ground.
PLB9041
PLB9041
Right foot
Left foot
4 x DIN7504K5.5x50mm
PLB9041
Right foot
Left foot
PPV19 05
PPV19 05
PVC elbow. Not supplied.
Mechanize the post for the
passage of the ring.
To Next Page
