MITJAVILA V2 - 5. Foot Assembly and Front Cassette Connection; Mount Plates on Feet; Front Cassette Connection (Over 7 m)

Page 7

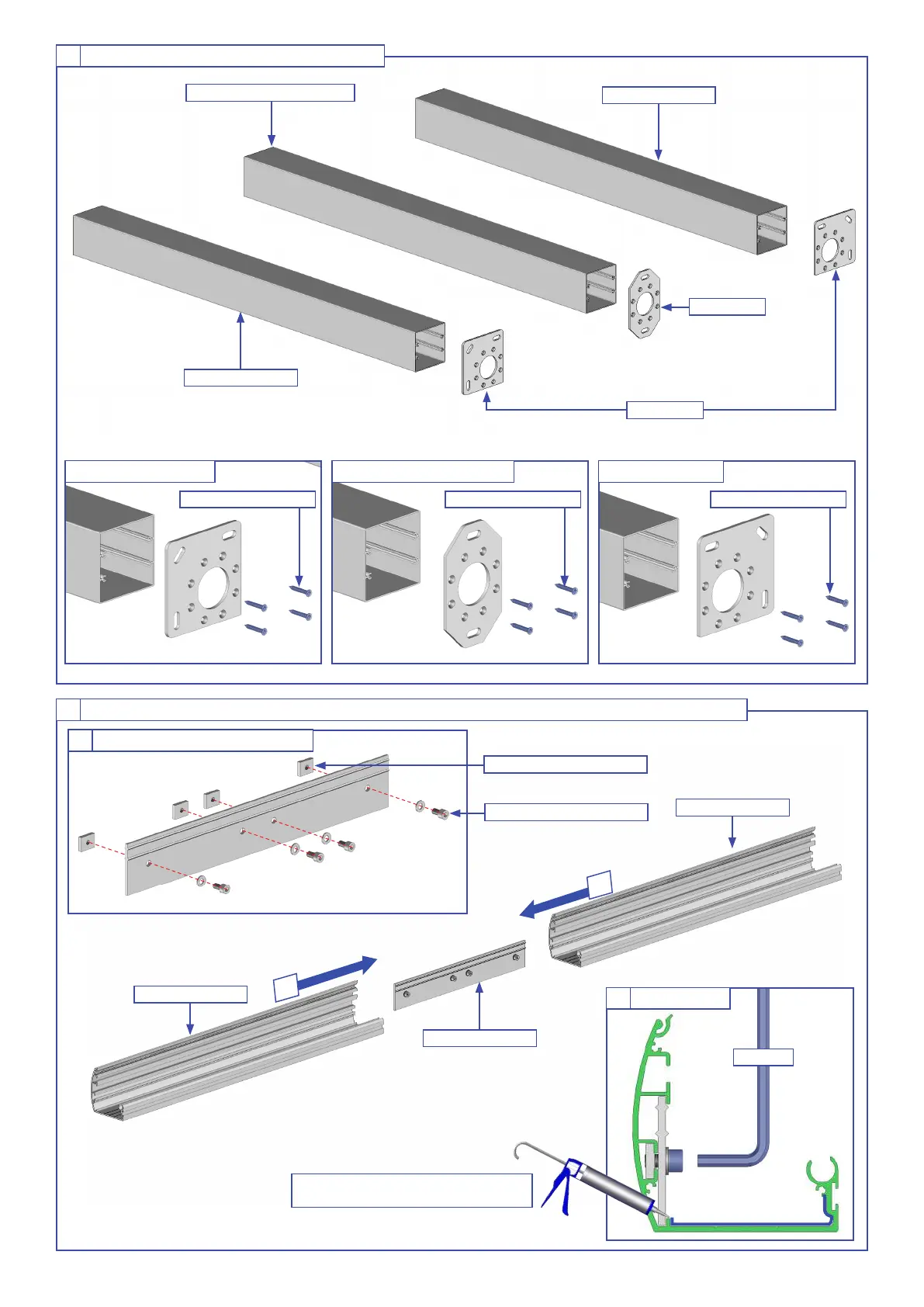

5 Mount the plates on the feet.
ST3802
ST38
Right foot
Left foot
Intermediate foot. > 4m
6 Front cassette connection. Pergola over 7m wide only.
Left foot Intermediate foot. Right foot.
DIN7982ST4.8x38mm DIN7982ST4.8x38mm DIN7982ST4.8x38mmDIN7982ST4.8x38mm
A Assemble the connection
C Screw.
Clé N°6
B
B
DIN912M8x14 + Washer
DIN912M8x14 + Washer
PV26 05M
PPV19 05
PPV19 05
Seal the junction of the two PPV19 05
cassettes.
