MITJAVILA V2 - 12. Front Cassette Installation; Adjust and Align Front Cassette; Secure Front Cassette Guides

Page 12
12 Installation of the front cassette.
C D
Note : Loosen the cassette assembly
locking screws if necessary to allow the
guides to be adjusted.
CAUTION : Do not loosen the screws
completely.
VIEW FROM ABOVE

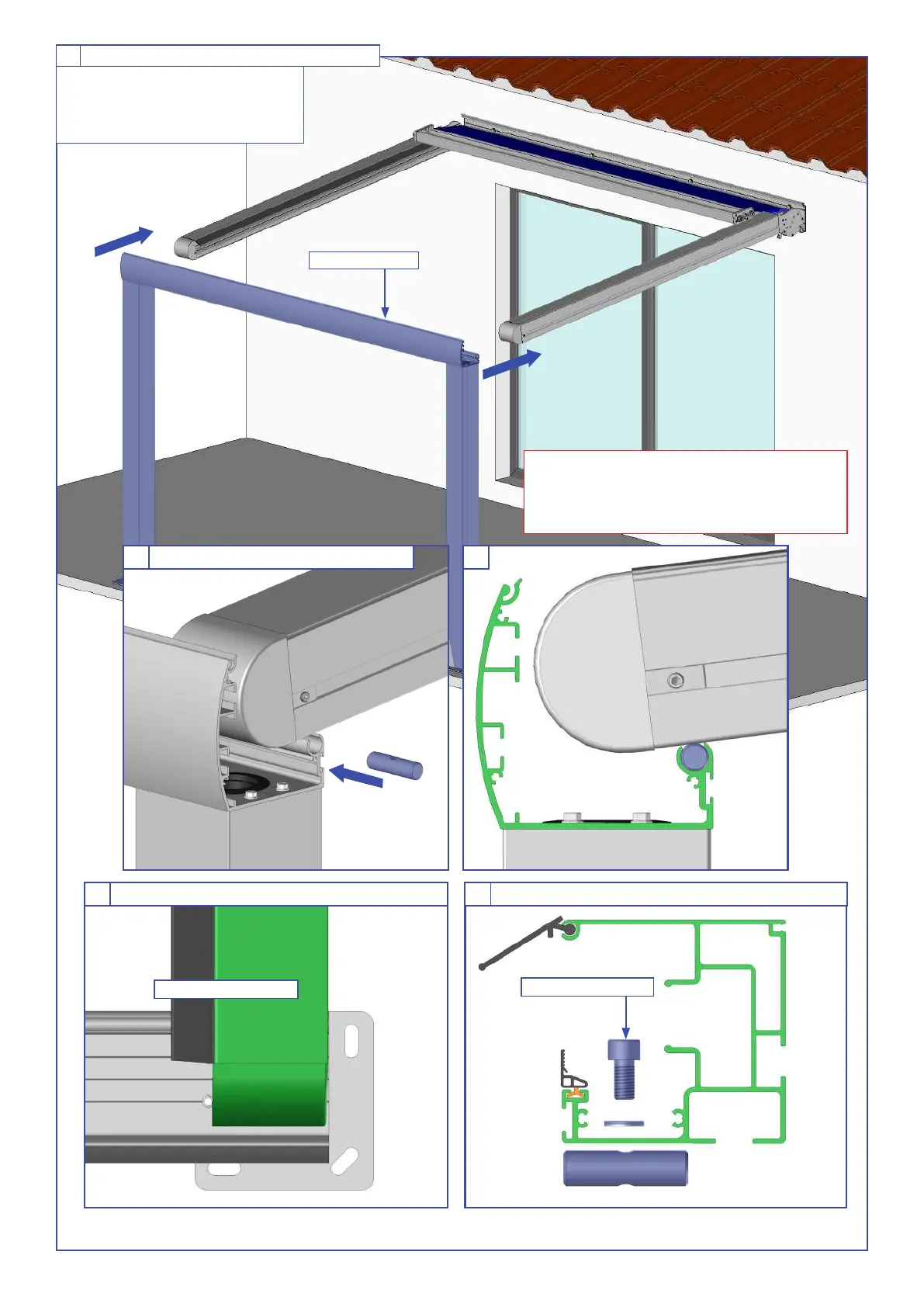

Align the guides on the front cassette.
IN POSITION
Screw the guides to the front cassette.
Front cassette
A B
IN POSITION
Note : to be carried out on both sides.
DIN912M8x16mm
IMPORTANT, check that the cassette as-
sembly screws mounted in paragraph 10
on page 11 are tight after attaching the
guides to the front cassette..
