MITJAVILA V2 - 13. Double Span Frame Assembly; Install First Span; Install Second Span Cassette Assembly

Page 13
Repeat the operations on page 10 to secure the second leg cassette assembly.

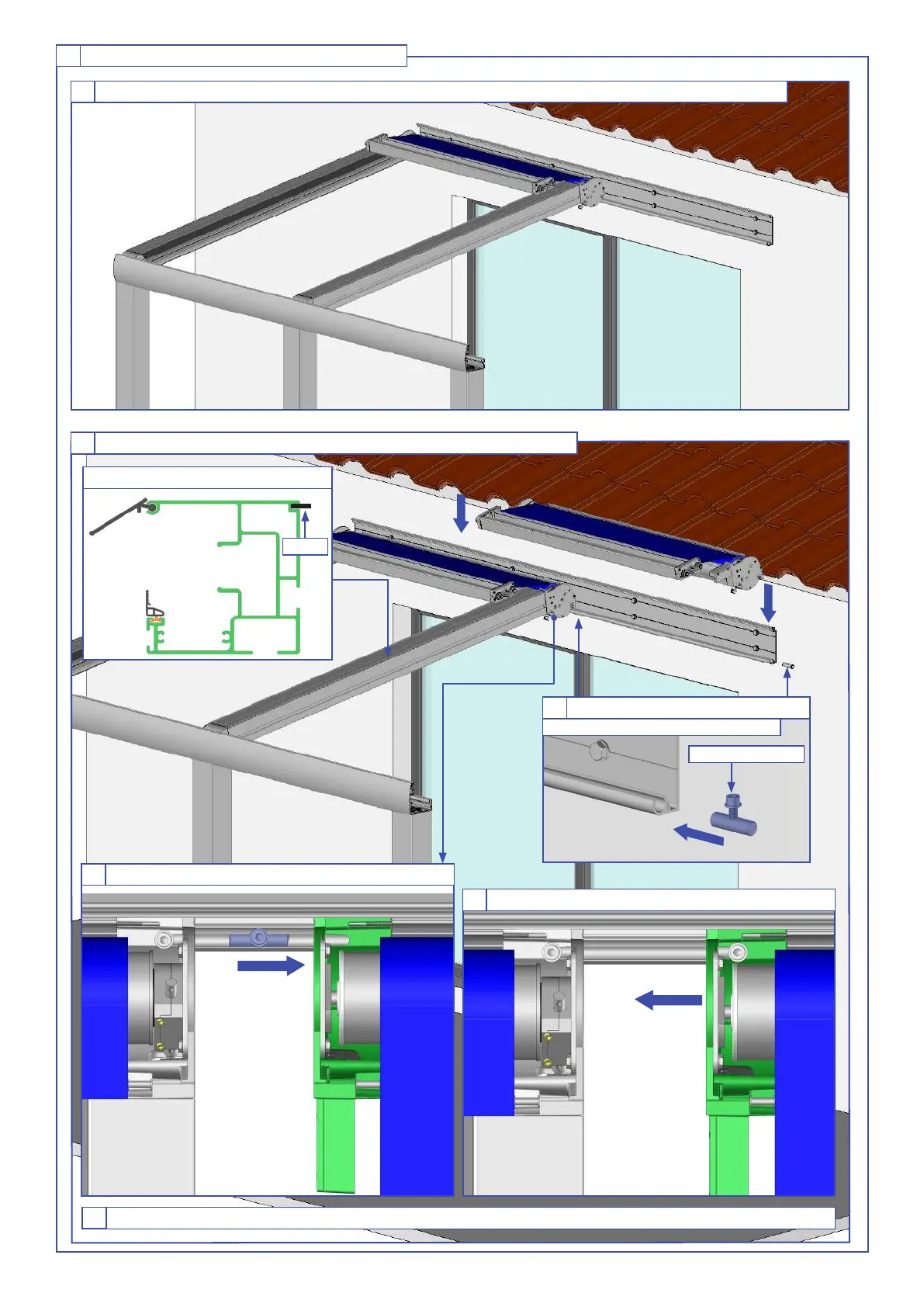

13 Frame assembly. Double span pergola.
A Installation of the rst span. Repeat the operations on page 10, page 11 and page 12.
B Installation of the cassette assembly of the second span.
A
Pre-assemble a locking piece.
Note : xing pieces in the center.
B
Place the locking pieces on the cap.
D
C
Place the cassette against the rst span.
Place the JO51 on the guide.
JO51
DIN912M8x20mm
