Page 14

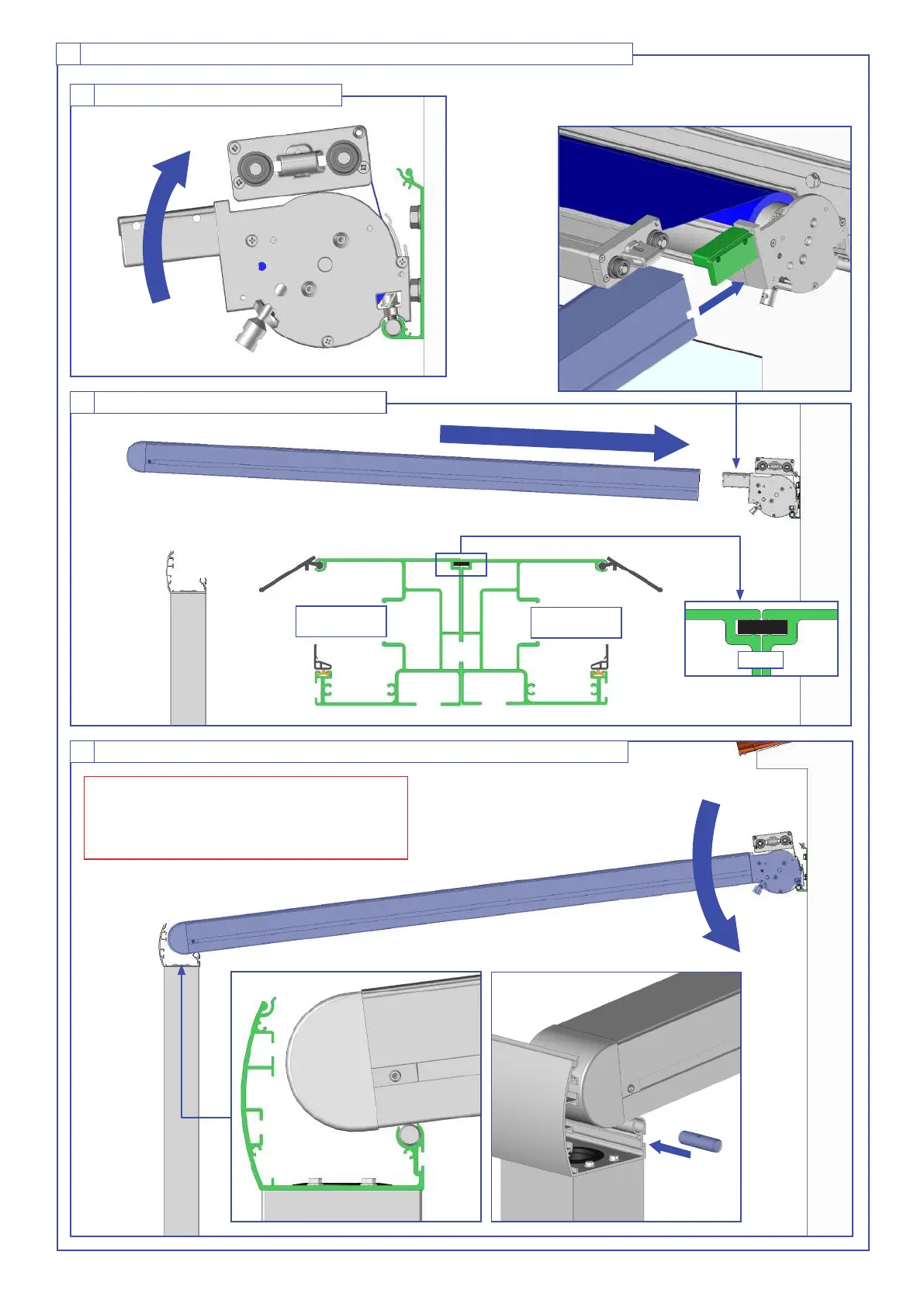

14 Installation of the guides of the second span. Double span pergola.
A Rotate the cassette up.
B Place the guides on the caps.
C Rotate the assembly to position the guides on the front cassette.
IN POSITION
First span
guide
Second span
guide
JO51
IMPORTANT, check the tightness of the
cassette assembly screws mounted in pa-
ragraph 10 on page 11 after screwing the
guides into the front cassette.
