Page 15

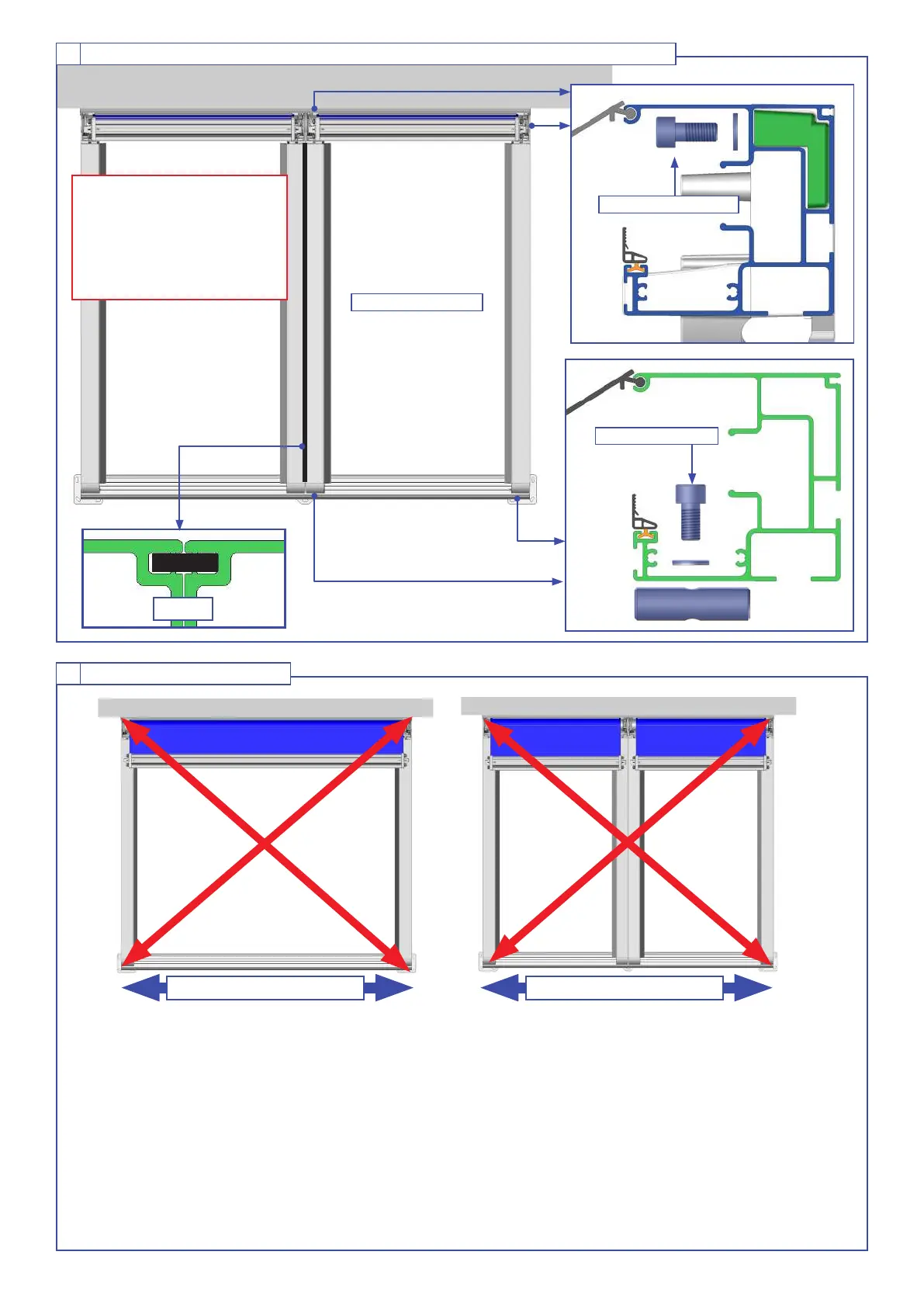

15 Screw in the guides of the second span. Double span pergola.
2 x DIN912M8x20mm
DIN912M8x16mm
VIEW FROM ABOVE
JO51
16 Quadrature control.
This step is very important :
Before proceeding with the assembly of your pergola, make sure that the diagonals are equal (acceptable tolerance of 5 mm) so
that the operation of the system continues correctly.
If the diagonals are not equal :
1 - Slightly loosen the caps and guides.
2 - Move the front part to correct the diagonals.
3 - Tighten the guides.
4 - Check the quadrature again.
Quadrature adjustment Quadrature adjustment
IMPORTANT, check the
tightness of the cassette
assembly screws mounted
in paragraph 10 on page 11
after screwing the guides
into the front cassette.
