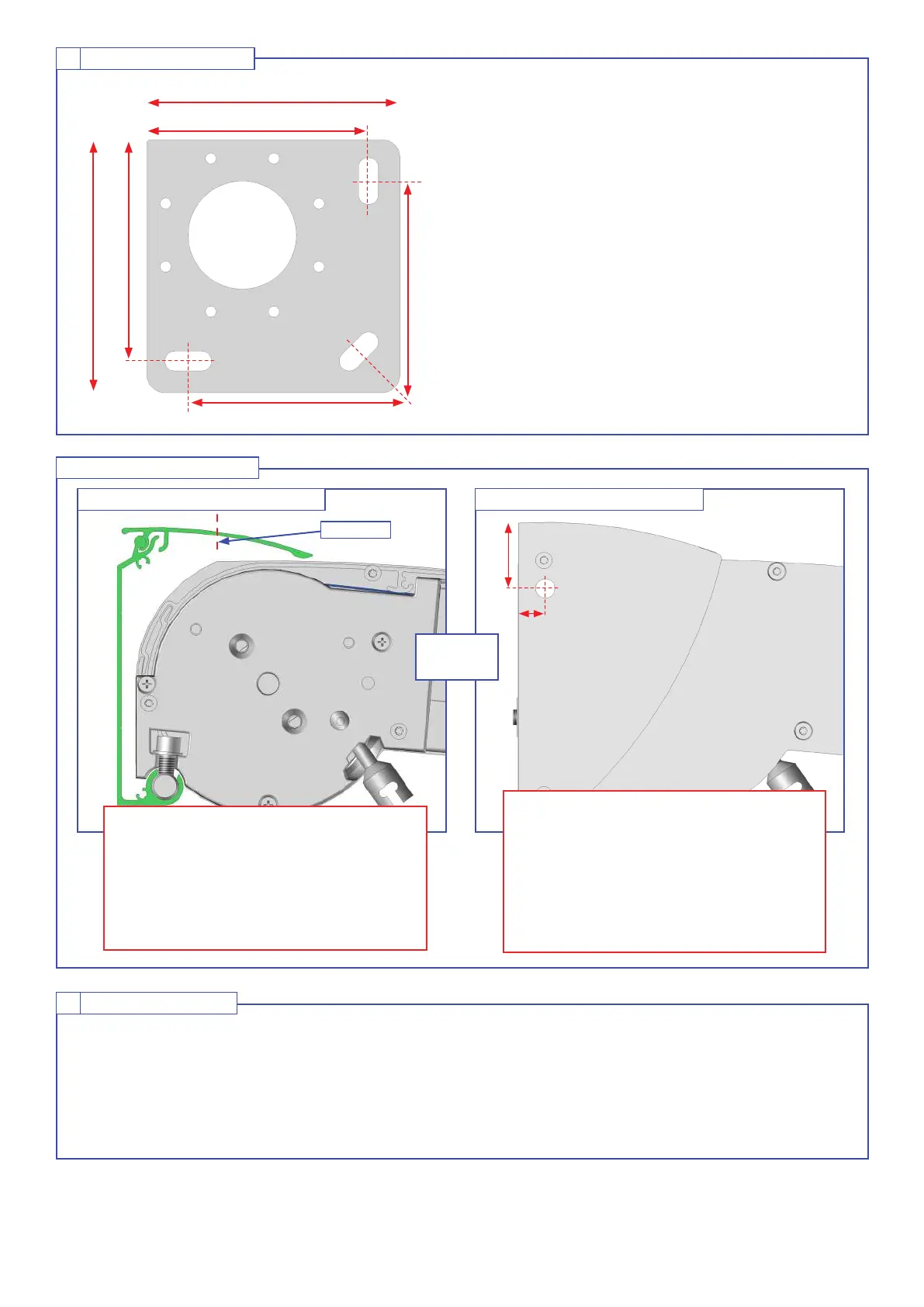

17 Fixing to the ground.
Attach the plates to each previously made concrete base
with at least two screws.
Our recommendation: 6 concrete screws Ø8 mm long at
least 120 mm. Resistance to extraction 500DaN (500Kg)
In the case of installation with a chemical sealing kit,
refer to the instructions for use of the product used.
140mm
140mm
123mm
123mm
95mm
18 Motor connection.
- Motorization with switch. See page 17.
- Motorization by remote control. See page 18 et page 19.
- Option of motorization with LED lighting. See the instructions delivered with the automatism. Just make
the connection and programming of the motor.
Motor cable outlet.
Through the cover PPV20 03. Through the cap JPV11 08.
OU
PPV20 03
IMPORTANT
The motor cable outlet will be made during opera-
tion 31 page 29. Drill the cover PPV20 03 Ø8mm to
Ø10mm to make the cable passage.
WARNING,
The cable outlet must be waterproof so as not to da-
mage the motor. Use the waterproof cable grommets
supplied or seal them.
10mm
35mm
IMPORTANT
The motor cable will be released during operation
32 on page 30. Drill the JPV11 08 Ø8mm to Ø10mm
cheek to make the cable passage.
WARNING,
Make an elbow for raising water at the product outlet
so as not to damage the engine. Use the waterproof
cable grommets supplied or seal them.
