Page 24

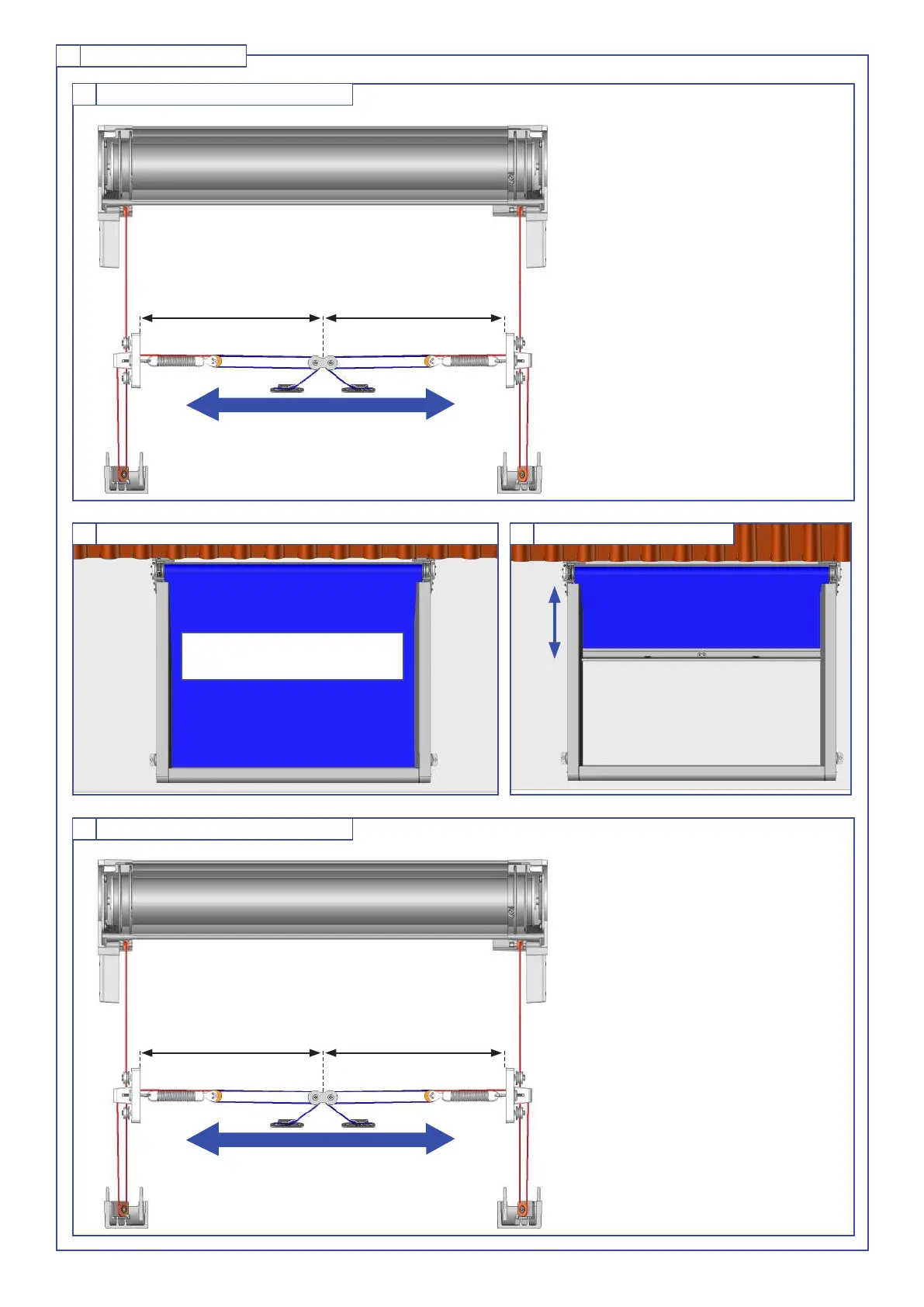

24 Fabric tension.
A Realice a rst tension.
= =
Vers l’extérieur
1 - Pull the halyards out and hang
them on their respective rope stop,
AC12.
2 - The tension must be identical on
both sides. Check that the PLO5149
double pulley is centered in relation
to the load bar.
3 - Check the halyard route and
make sure the halyard is correctly
guided on the pulleys.
D Realice a second tension.
= =
Outward
1 - Pull the halyards out and hang
them on their respective rope stop,
AC12.
2 - The tension must be identical on
both sides. Check that the PLO5149
double pulley is centered in relation
to the load bar.
3 - Repeat an opening and closing
cycle.
ATTENTION,
Do not wait for the lower opening
limit switch.
4 - Cut off the excess halyard.
B Open the fabric. Don’t wait until the end limit. C Close the fabric again.
500mm
CAUTION,
don’t wait until the end limit.
