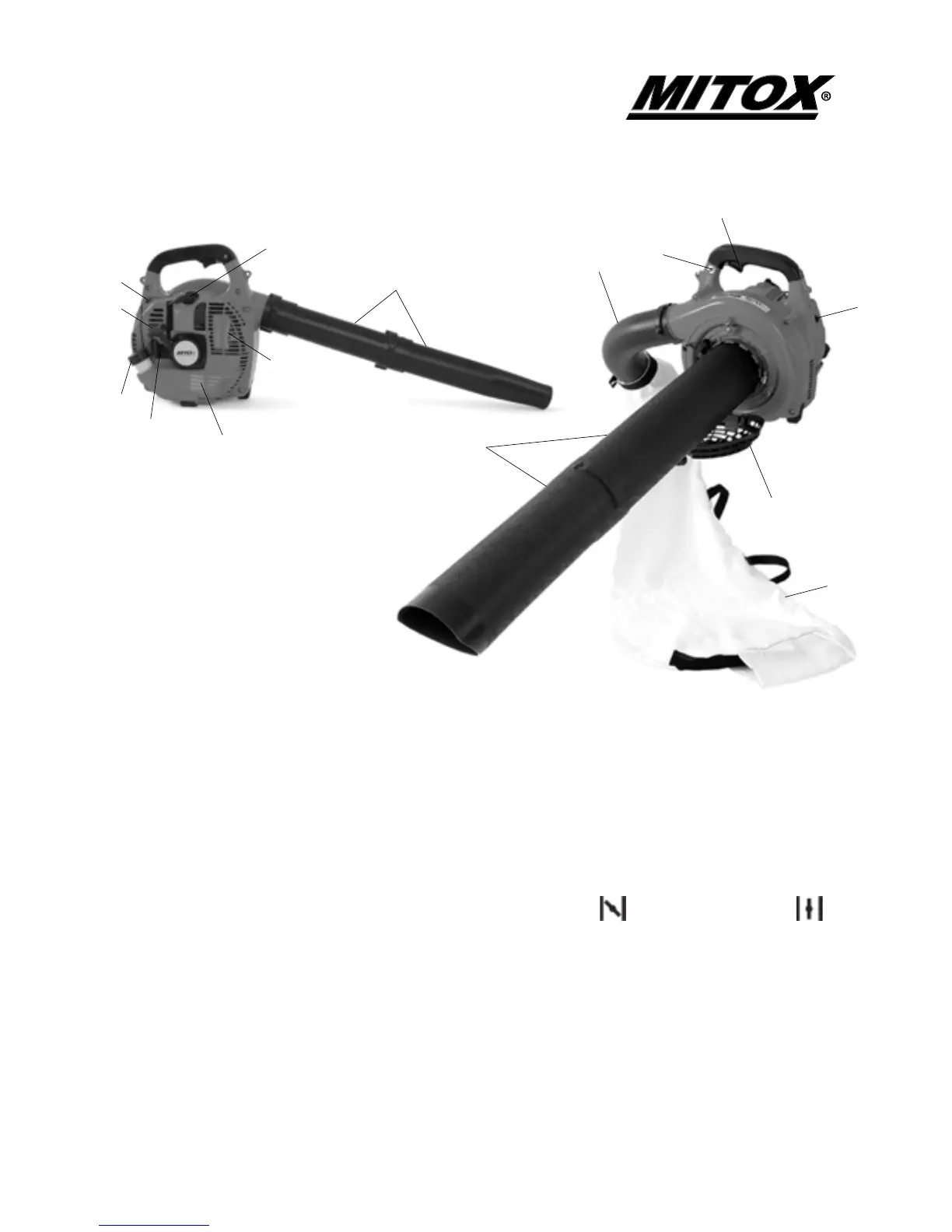

Component Location
1. Ignition Switch ON-OFF toggle switch. Switch to ON before starting. Switch to OFF to stop engine
2. Spark Plug Provides spark to ignite 2-stroke fuel mixture
3. Air Cleaner Replaceable air lter
4. Fuel Tank Contains fuel and fuel lter
5. Fuel Cap Seals fuel inside fuel tank
6. Recoil Starter Pull to start engine
7. Muer Controls exhause emissions and noise
8. Choke To assist cold starting. Fully extend to close choke. Push in to open choke.
9. Primer Bulb Draws fuel from fuel tank and purges air from the carburetor prior to starting.
10. Blower Pipes Two parts lock together to form air discharge pipe.
11. Throttle Lever Pull to increase engine speed.
12. Vacuum Tube Two parts lock together to form air intake pipe. Vacuums in debris to be shredded.
13. Vacuum Elbow Discharges shredded materials into collection bag.
14. Collection Bag Collects shredded materials with zip to empty.
15. Side Cover Must be closed when in blower mode.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
