Important
Blower tube installation aects both blower Balance and performance! The tube and
Nozzle are correctly installed when the label “TOP” is visible to the operator during normal
operation.

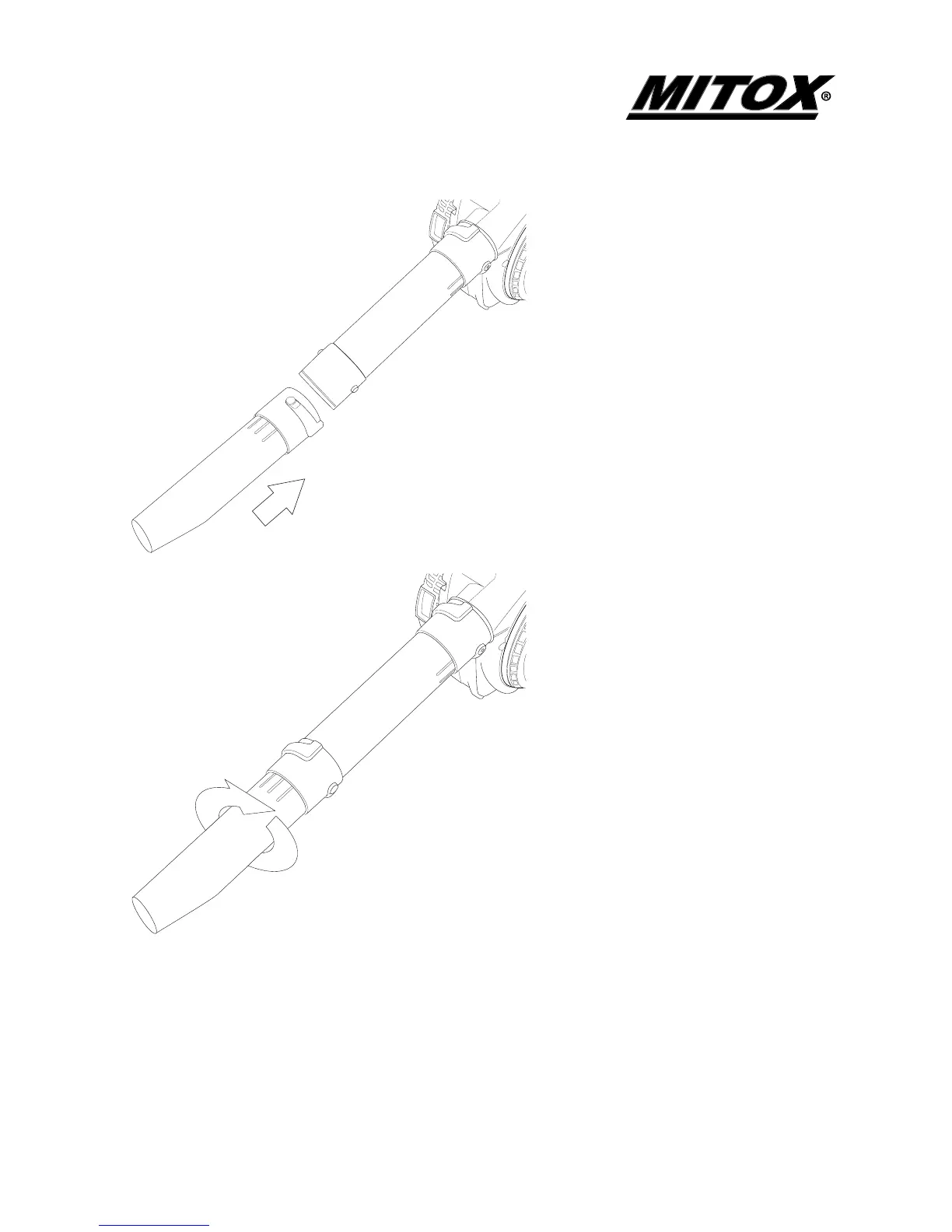

Fit the tapered blower tube over the
straight blower tube, aligning the channels
in the tube over the locking pins.
Twist the tapered blower tube tube to
engage the locking pins as illustrated.
Note the tapered discharge chute is
marked with a TOP side.
