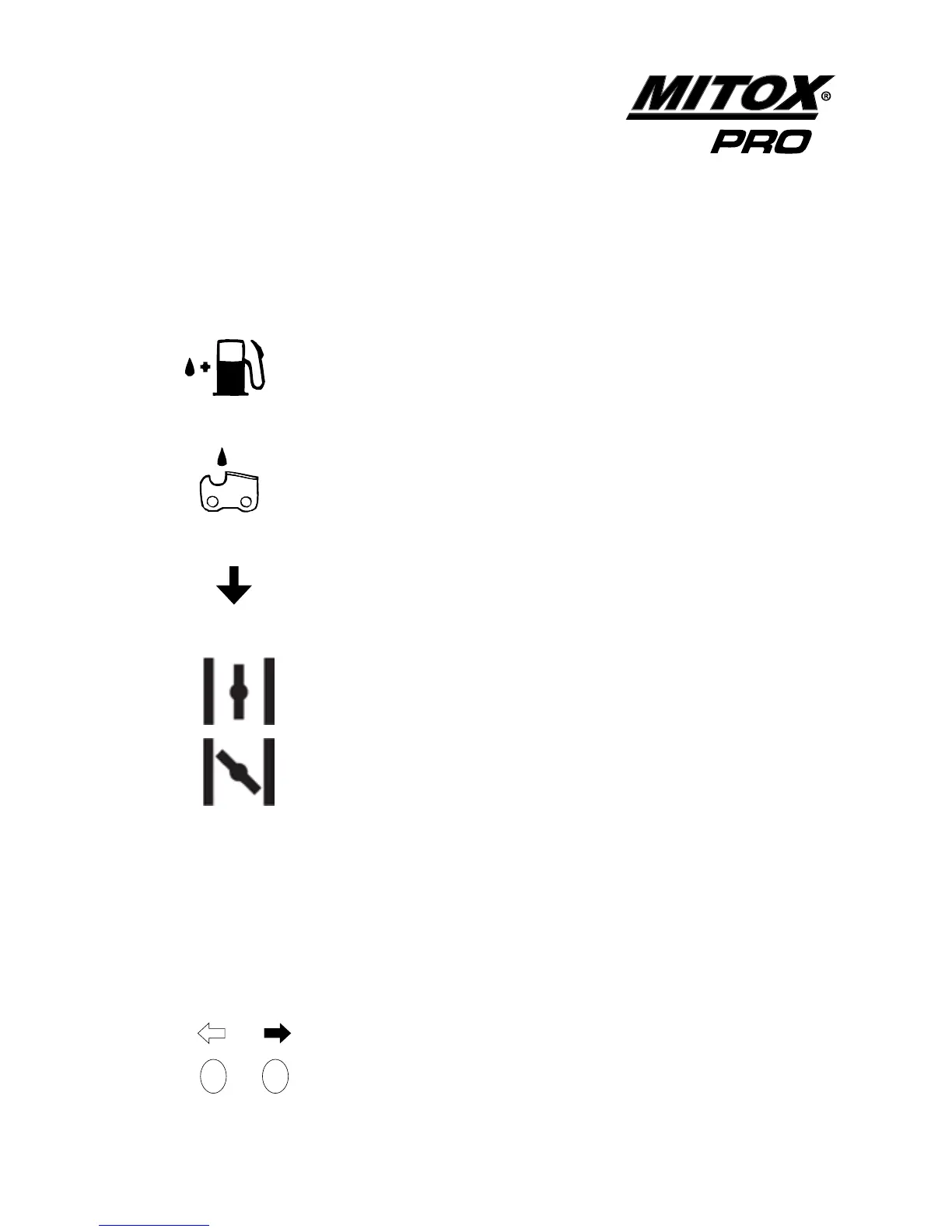

For safe operation and maintenance, symbols are carved in relief on the
machine.
Fuel tank 2 stroke mix
Position: Fuel cap
Chain oil tank
Position: oil cap
Stop Switch
Setting the switch to the “O” position, the engine stops immediately.
Position: Rear-left of the unit
Starting mode when the engine is hot.
Position: Upper-right of the air cleaner cover.
Starting mode when the engine is cold.
The screw under the “H” stamp is The High-speed adjustment screw.
Position: Left side
The screw under the “L” stamp is The Slow-speed adjustment screw.
Position: Left side
The screw at the left of the “T” stamp is the idle adjustment screw.
Position: Left side
Shows the directions that the chain brake is Released (white arrow) and
Activated (black arrow).
Position: Front of the chain cover
