APPENDICES
APP
−
6

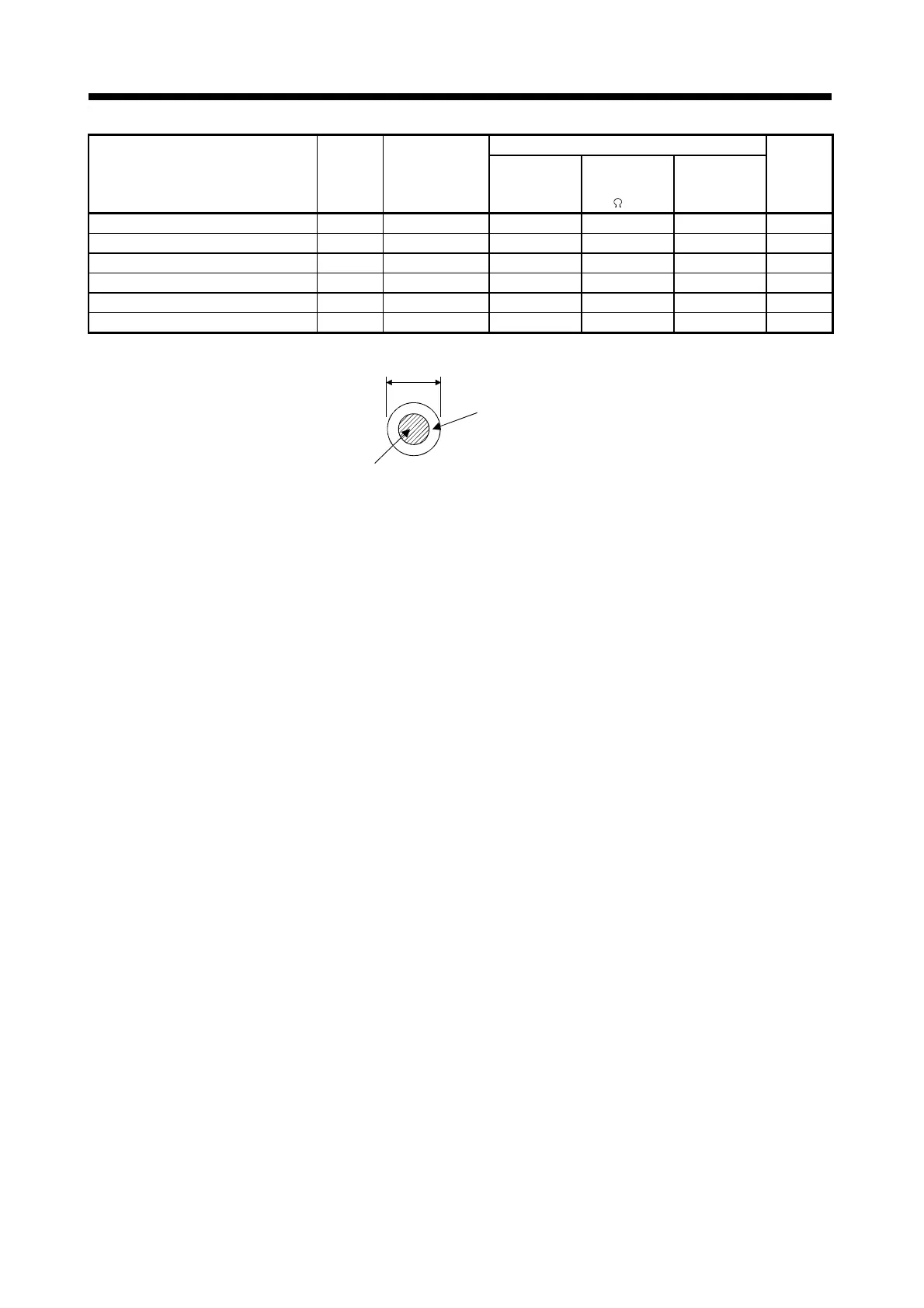

Characteristics of One Core
Wire Model
Core Size
[mm
2
]
Number of Cores
Structure
[Number of
wires/mm]
Conductor
resistance
[
/km]
Insulating
sheath OD
d[mm]
*1
Finish OD
[mm]
*3
UL20276 AWG#28 7 pairs (BLAC) 0.08 14 (7 pairs) 7/0.127 222 max. 0.38 5.6
UL20276 AWG#28 4 pairs (BLAC) 0.08 8 (4 pairs) 7/0.127 222 max. 0.38 4.7
UL20276 AWG#22 6 pairs (BLAC) 0.3 12 (6 pairs) 12/0.18 62 max. 1.2 8.2
A14B2343 6P
*2
0.2 12 (6 pairs) 40/0.08 105 max. 0.88 7.2
A14B2339 6P
*2
0.2 8 (4 pairs) 40/0.08 105 max. 0.88 6.5
A14B0238 7P
*2
0.2 12 (6 pairs) 40/0.08 105 max. 0.88 8.0
*1: d is as shown below.
d
Conductor
Insulation sheath
*2: Supplier: Toa Electric Industry
*3: Standard OD. Max. OD is about 10% greater.
