English
English-7
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a
computer, VCR or DVD player.
AUDIO OUT
To output the audio signal from the AUDIO IN 1,2 and 3 jack.
VIDEO IN/OUT
VIDEO IN connector (BNC and RCA): To input a composite
video signal. BNC and RCA are not available at the same
time.
(Use only one input).
VIDEO OUT connector (BNC): To output the composite
video signal from VIDEO IN connector.
S-VIDEO IN connector (MINI DIN 4 pin): To input the S-
video (Y/C separate signal).
EXTERNAL CONTROL (mini D-Sub 9 pin)
Use when operating the LCD monitor from RGB equipment
like a computer. See page 29.
EXTERNAL SPEAKER TERMINAL
To output the audio signal for external speakers from AUDIO
1, 2 or 3 jack.
AC IN connector
Connects with the supplied power cord.
RGB 1 IN (DVI-D)
To input digital RGB signals from a computer.
* This connector does not support analog input.
RGB 2 IN (mini D-Sub 15 pin)
To input a analog RGB signals from a computer or other RGB
equipment.
RGB 3 IN [R, G, B, H, V] (BNC)
To input the analog RGB signals from a computer or other
RGB equipment.
RGB OUT (mini D-Sub 15 pin)
To output the signal from RGB 2 IN or 3 IN.
DVD/HD IN [Y, Pb/Cb, Pr/Cr] (BNC)
Connecting equipment such as a DVD player, HDTV device, or
Laser disc player.

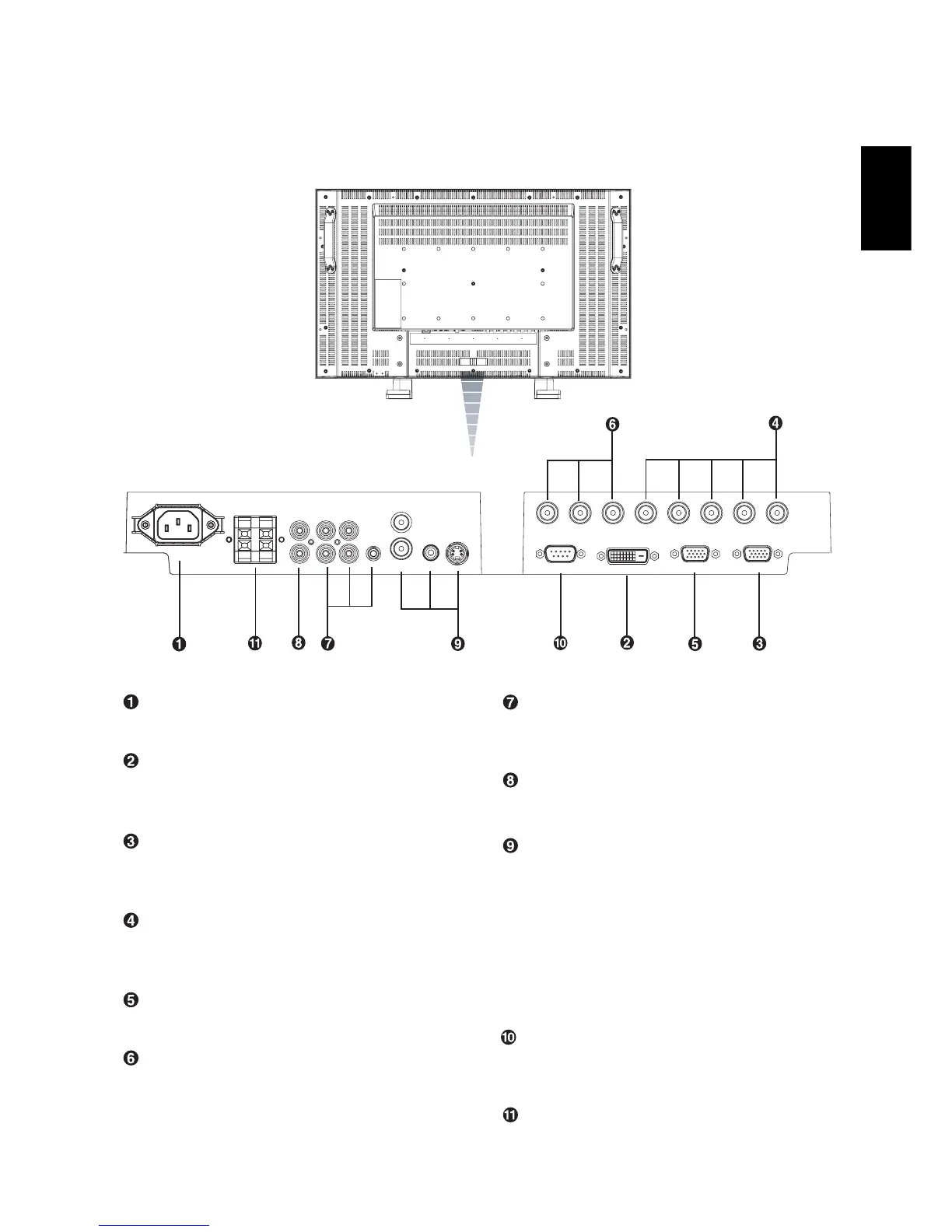

Terminal Panel
AC IN Speaker
OUT
L
R
AC IN
AUDIO
Speaker
OUT
OUT
OUT
VIDEO
S-VIDEO
IN
YRGBHV
IN
IN
32
1
L
R
Pb/Cb Pr/Cr
RS-232C
RGB1
RGB3DVD/HD
RGB2
RGB OUT
