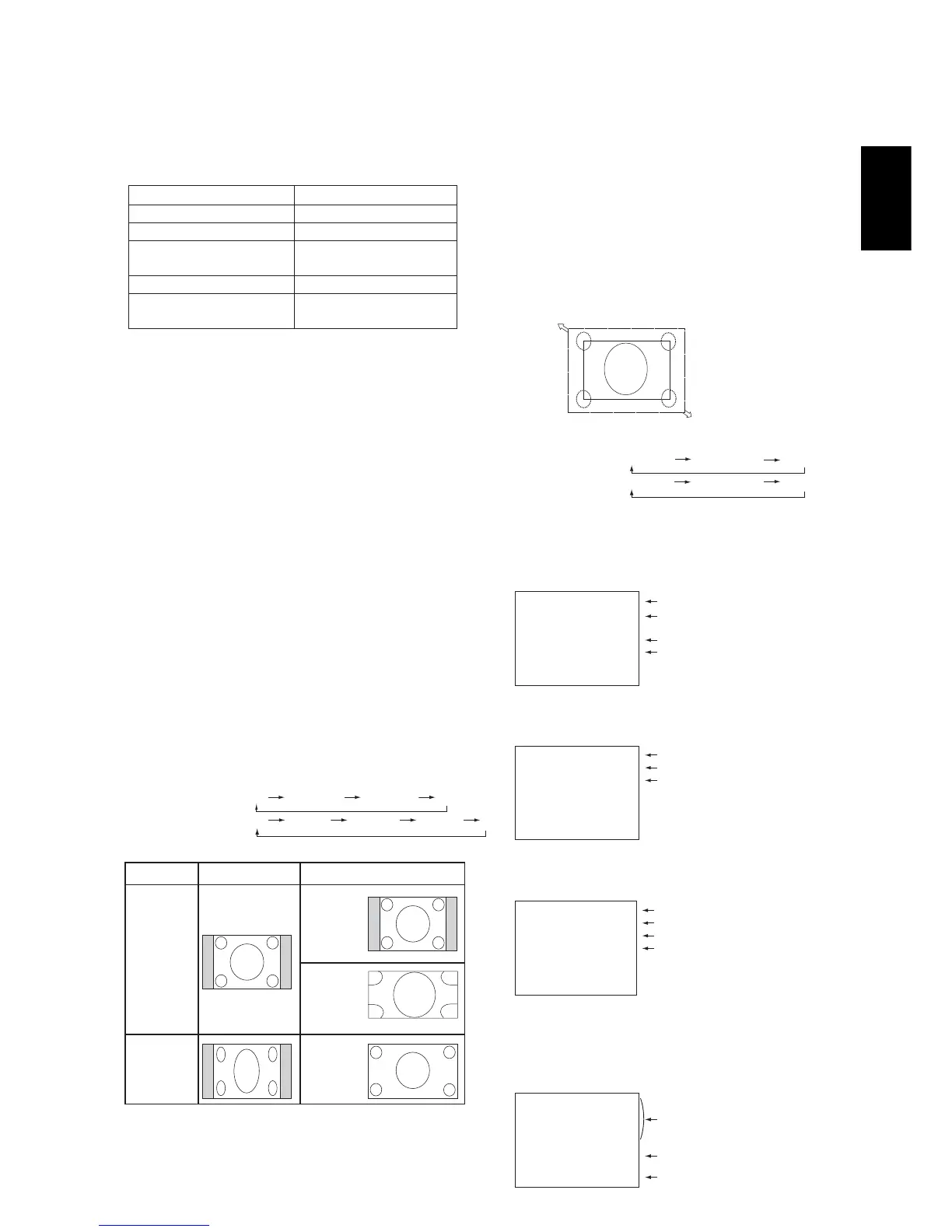

Power Indicator
Power Indicator
Using Power Management
The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the “ON” mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
Selecting a video source
To view a video source:
Use the input button to set [VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.
Picture Size
RGB 1, 2, 3 FULL
NORMAL
DVD/HD, VIDEO FULL
NORMAL DYNAMIC CUSTOM REAL
Status
Power ON
Green
Power OFF Red
Power Standby when
Red On
“SCHEDULE” is enable
Green Blinking
Power Standby Red, Green
Diagnosis (Detecting failure) Red Blinking
* See troubleshooting on page 32
RGB1, 2, 3
DVD/HD
VIDEO<S>, VIDEO
PIP or POP
Main:RGB2
Sub:VIDEO<S>
Information OSD
Video Input mode
Input signal Information
Audio input mode
Picture Size mode
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
SIZE : FULL
)
Video Input mode
Audio input mode
Picture Size mode
DVD/HD
AUDIO : 3
SIZE : FULL
Video Input mode
Input Signal Colour System mode
Audio input mode
Picture Size mode
VIDEO<S>
NTSC
AUDIO : 3
SIZE : NORMAL
Main picture Information
Sub picture Information
Main picture Information
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
VIDEO<S>
NTSC
SIZE : FULL
)
Picture Mode
RGB 1, 2, 3 HIGHBRIGHT STANDARD sRGB
DVD/HD, VIDEO HIGHBRIGHT STANDARD CINEMA
Signal Type
NORMAL
DYNAMIC
FULL
4:3
Squeeze
NORMAL SIZE Recommended Siz
e
NORMAL: Display by the inputed signal aspect ratio by PC
signal, or display in 4:3 aspect ratio at DVD/HD or VIDEO signal.
FULL: Display in entire screen.
non-linearity. (Some round image will be cut by expansion.)
CUSTOM (ZOOM)
DYNAMIC: Expand 4:3 pictures to the entire screen with
Image can be expanded beyond the active display area. The
image which is outside of activ
REAL: Image will be displayed 1 by 1 pixel.
e diaplay area is not displayed.
ZOOM
ZOOM
CUSTOM REAL
