Page 15
MODELS: LT-40151 / LT-46151 / LT-52151 / LT-40153 / LT-46153 / LT-52153 / LT-46249 / LT-52249
DISASSEMBLY & PARTS REPLACEMENT
(CONTINUED)

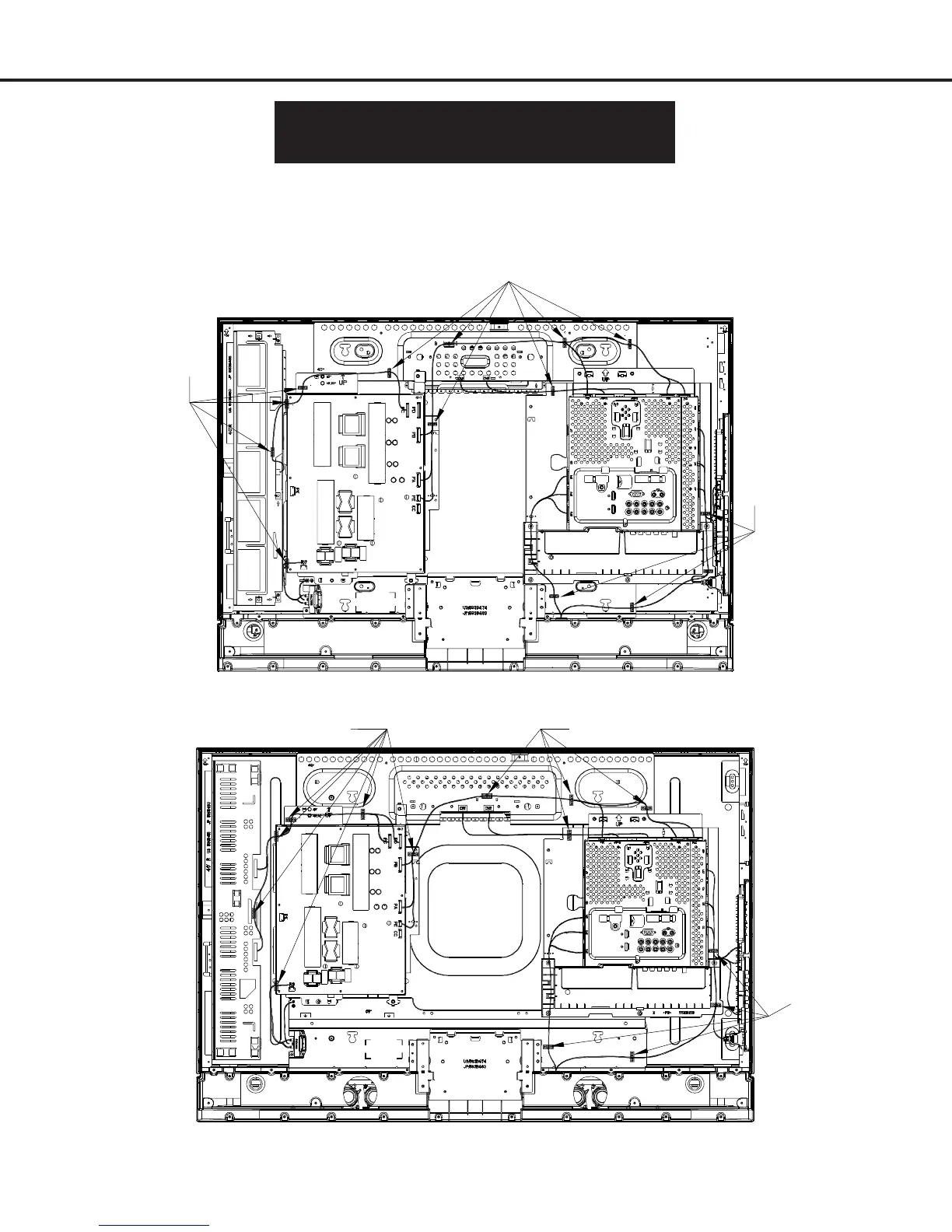

LCD Panel Replacement Final Steps - Wiring and Wiring Clamps**
1) To replace the LCD Panel, reverse the disassembly procedure.
2) Install the wiring and wiring clamps as shown in the following diagrams.
WIRING/CLAMP LOCATIONS (LT-40151 & LT-40153)
CLAMP
CLAMP
CLAMP
WIRING/CLAMP LOCATIONS (LT-46151 & LT-46153)
CLAMP
CLAMP
CLAMP
